Cleerline Technology Group D50125MOM3P Teal Duplex OM3 Multimode Cleerline SSF Indoor/Outdoor Plenum Fiber Optic Cable Reel

Product Description

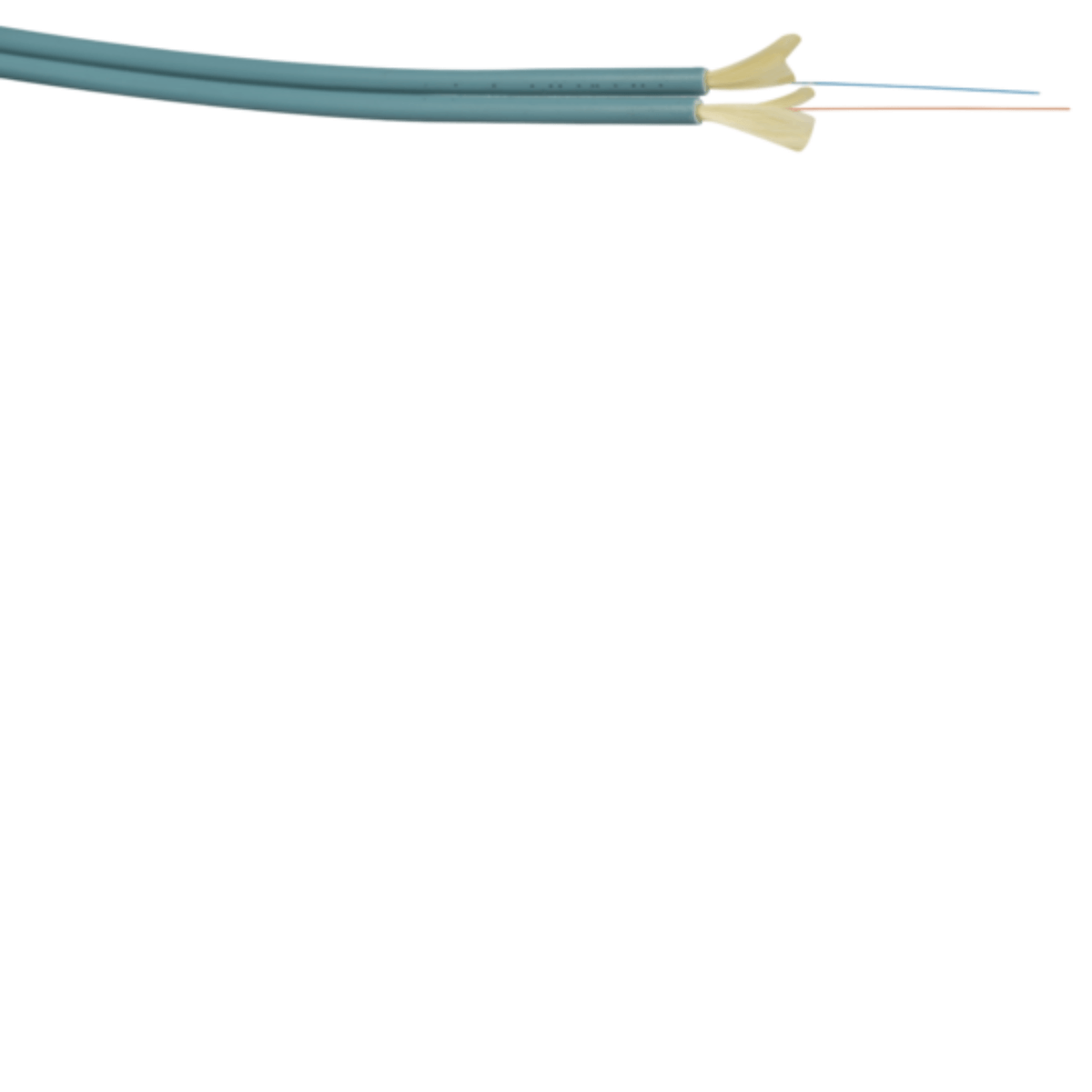

The Cleerline Technology Group D50125MOM3P is a teal duplex OM3 multimode Cleerline SSF indoor/outdoor plenum fiber optic cable. This cable features a patented coating providing 10,000 times the flex life of normal glass. Designed with a zipcord style SPT fiber assembly format, it includes 2 Fiber 50/125 multimode OM3 fiber.

• Zip cord construction allows for easy separation of strands.
• SSF fibers provide extreme durability and strength.
• Up to 10,000x the bend longevity of traditional fiber.

Product Highlights

This Cleerline SSF duplex cable is ideal for inter-building or intra-building data communication backbones, offering high mechanical strength and bend insensitivity.

Product Information

Standard Information

• Brand: Cleerline Technology Group
• Manufacturer Part Number: D50125MOM3P

Technical Specifications

• Strand Count: 2
• Maximum Tensile Load: Installation: 1000 N (225 lbf) Long Term: 500 N (112 lbf)
• Diameter: 0.11" x 0.07 ( 3.0 mm x 2 mm)
• Construction: Plenum Rated PVC + UV I/O
• Operating Temperature: -4°F to +167°F
• Storage Temperature: -40°F to +185°F
• Weight: 13.2 lb / 1000 ft
• Minimum Bend Radius: 1 x O.D.
• FiberOptic Cable Type: 50/125
• Outer Diameter: 3.0 mm x 2
• Markings: Sequential Foot Markings
• Strength Member: Kevlar (Plenum + water blocking yarns)
• Operating Temperature Range: -20°C to +75°C
• Max Tensile Load Long Term: 500 N (112 lbf)
• Cable Outside Diameter, Nominal: 3.0 mm x 2
• Rating: FT4 - Riser / FT6-Plenum / CPR LSZH
• Crush Resistance (TIA/EIA 455-41A): 100 kgf / mm
• Impact Resistance (TIA/EIA 455-25B): 1500 impact cycles
• Flexing at 90 degrees (TIA/EIA 455-104A): 2000 flexing cycles
