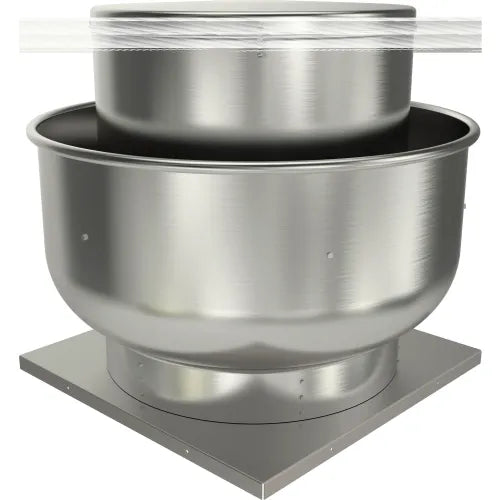

CLEAN COMFORT 5BDU10 Upblast Roof Ventilator

Product Description

The CLEAN COMFORT 5BDU10 is a reliable belt-drive upblast ventilator suitable for roof-mounted exhaust in commercial and industrial buildings. This unit features a sturdy construction with spun aluminum and steel support braces. It has a backward inclined aluminum fan wheel that enhances performance. The motor and wheel assembly can be easily detached without taking the ventilator off its base, making maintenance straightforward. This ventilator is designed for both roof and wall applications, ensuring versatility in installation.

• Backward inclined aluminum fan wheel.
• Permanently lubricated ball bearings.
• Easy motor access for maintenance.

Product Highlights

This ventilator is suitable for both indoor and outdoor applications, ensuring effective exhaust management in various settings.

Product Information

Standard Information

• Brand: CLEAN COMFORT
• MPN: 5BDU10

Technical Specifications

• CFM: 1179 CFM
• Horsepower: 1/4 HP
• Input Voltage: 115 / 230 V
• Phase: 1
• Hertz: 60 Hz
• RPM: 1580 rpm
• Drive Type: Belt Drive
• Operating Temperature: Up to 300°F
• Fan Diameter: 10 in
• Width: 23-7/8 in
• Length: 23-3/8 in
• Height: 23-3/8 in
• Weight: 110 lbs
• Material: Galvanized Steel
• Wattage: 187 W
• Peak Fan Power Input: 187 BHP
• Sones: 14.3
• Indoor/Outdoor: Indoor
• Certifications: AMCA Air, AMCA Sound, UL Standard 705 & 762, NFPA 96
