Cle-line C65232 Round Die 1/2-13 Unc Carbon Steel

Product Description

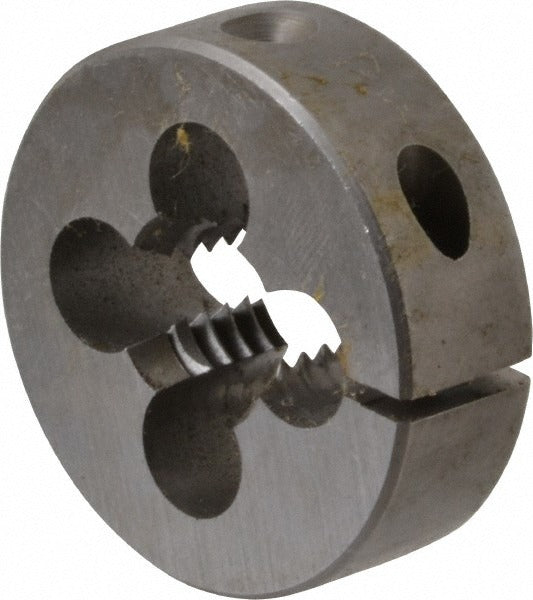

The CLE-LINE C65232 is a round threading die designed to cut 1/2-13 UNC external threads on bolts, studs, and rod stock. Manufactured from carbon steel, this die is built for use in standard threading applications where durability and consistent thread form are required. The adjustable design allows the cutting diameter to be fine-tuned for fit tolerance, reducing the need for multiple dies across a range of fits. At 2 inches thick and 1.97 inches in diameter, this Series 0610 die fits standard die stocks and handles commonly used for 1/2-13 work.

This die is suited for use in machine shops, maintenance environments, and field repair scenarios where replacement or new external threads are needed on 1/2-inch fasteners or threaded rod. Machinists, millwrights, pipefitters, and general maintenance technicians commonly use round dies like this one for thread chasing or cutting fresh threads. Right-hand thread direction aligns with standard UNC fastener specifications used throughout industrial and construction trades.

Key Features

• 1/2-13 UNC thread size for standard unified coarse external threading
• Adjustable design allows fine-tuning of thread fit and cutting diameter
• Carbon steel construction for general-purpose threading durability
• Right-hand thread direction matches standard UNC fastener orientation
• Series 0610 sizing fits compatible die stocks and handles
• 2-inch thickness provides full thread engagement depth

Compatibility

Designed as an OEM-style replacement or supplemental tooling for standard round die stocks and handles sized for 1/2-13 UNC threading applications.

Installation Notes

This die is installed into a compatible round die stock before use. Secure the die firmly in the stock using the set screws before beginning any threading operation. Apply cutting fluid to the workpiece to extend die life and improve thread quality. Adjustable dies should be set and tested on scrap material before cutting final threads.
