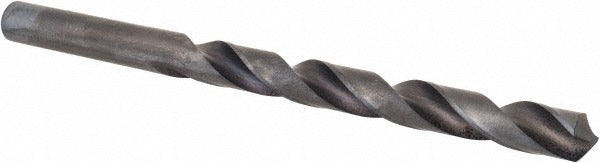

Cle-line C22732 Jobber Drill Bit 19/64 Inch Hss

Product Description

The CLE-LINE C22732 is a high speed steel jobber-length drill bit designed for general-purpose drilling in steel and cast iron. It carries a 118-degree standard point angle with web thinning for easier penetration and reduced thrust. The black oxide finish provides mild corrosion resistance and helps retain cutting oil during use. At 4.375 inches overall length with a 3.0625-inch flute length, this bit fits standard drill chucks and magnetic drill presses without modification. The straight cylindrical shank measures 19/64 inch in diameter, matching the drill diameter. This bit is suited for maintenance technicians, fabricators, and trade professionals who need a reliable general-purpose twist drill for ferrous materials.

The C22732 is intended for drilling steel, cast iron, and similar ferrous workpiece materials in maintenance, repair, and general fabrication settings. The regular spiral flute and right-hand cutting direction make it compatible with standard drill presses, hand drills, and CNC drill heads running conventional rotation. The Series 1899 designation places it within a well-established jobber-length family built to ASME B94.11M and DIN 338 dimensional standards. It is sold individually and is appropriate for shop toolboxes, service vans, and job-site drill indexes where a reliable fractional-size bit is needed.

Key Features

• 19/64 inch diameter with a diameter tolerance of +0.0000 to -0.0010 inches for consistent sizing
• 118-degree standard point with web-thinned, tapered web configuration for reduced entry force
• High speed steel construction with black oxide coating for corrosion resistance and lubrication retention
• Regular spiral flute with right-hand cutting direction for use in standard rotation equipment
• Straight cylindrical shank for compatibility with standard chuck types
• Conforms to ASME B94.11M and DIN 338 dimensional standards

Compatibility

Designed as an OEM-style general-purpose jobber drill bit suitable for use in standard 3/8-inch or 1/2-inch keyed and keyless drill chucks; primary workpiece materials are steel and cast iron as stated by the manufacturer.

Installation Notes

Installation and use of this drill bit should be performed by qualified machinists, maintenance technicians, or trade professionals familiar with rotating cutting tools. Secure the workpiece firmly and ensure the chuck is tightened fully before operation. Always wear appropriate eye protection and follow applicable OSHA and shop safety guidelines when operating drill equipment. Do not exceed the recommended speed range for the workpiece material and bit diameter.
