Cla-Val 89016A CFI-CI Float Control (Each)

Product Description

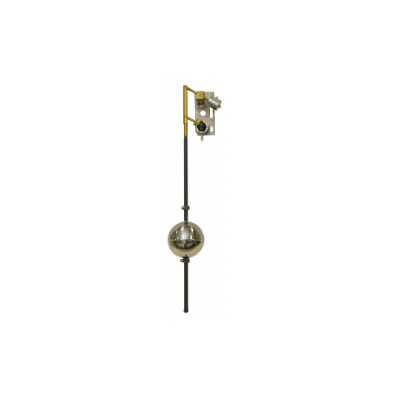

Cla-Val 89016A is a CFI-CI float control that provides non-modulating, two-position on-off operation for liquid level regulation and for operating remotely located Cla-Val three-way or four-way pilot valves. The unit features a stainless steel float and brass body, fully hydraulic operation, and is suitable for water, oil, and compatible chemicals. It operates on minimum level changes of about 1 inch up to 19 inches and allows float rod extensions up to 11.5 feet.

• Float-actuated, multi-port pilot control; non-modulating two-position on-off operation
• Stainless steel float and brass body; fully hydraulic design with no mechanical linkage
• Piping connections 1/8" NPT; pressure rating 150 psi max; temperature rating to 150 F; float diameter 5 3/8"

Product Highlights

Float-actuated two-position level control for three- or four-way pilot valves; 1/8" NPT connections; operates on 1–19 inch level change; extensions up to 11.5 ft

Product Information

Standard Information

• Brand: CLA-VAL
• Manufacturer Part Number: 89016A
