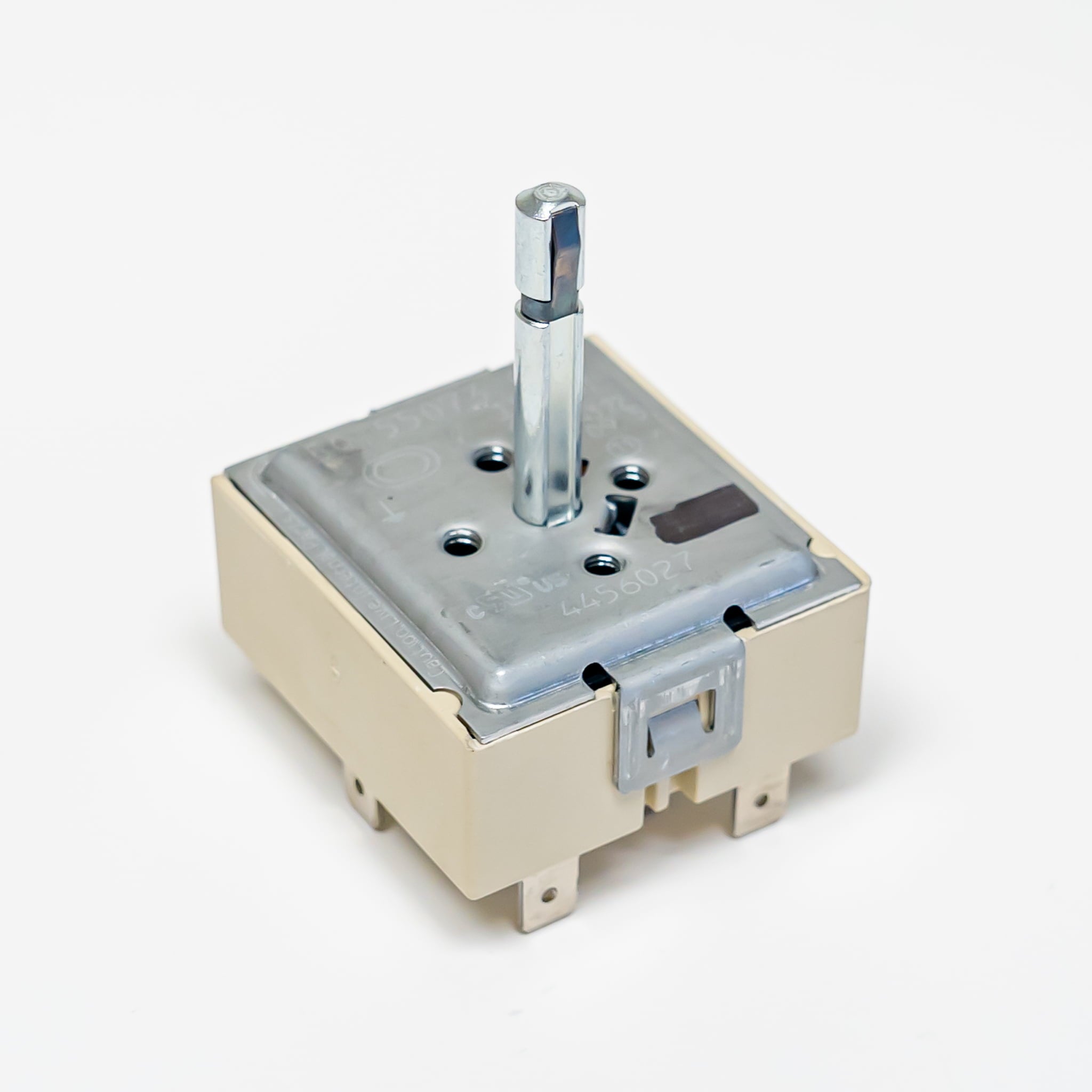

Choice Manufactured Parts 4456027 Range Burner Infinite Control Switch 240V 13 Amp (8-Position) WP4456027

Product Description

Choice Manufactured Parts 4456027 is an infinite control switch for range burners providing manual push-to-turn control of surface heating elements. The switch features a push-button actuator with eight selectable positions and panel-mount design, using multiple spade terminals and brass contacts for electrical connections. It is rated for 240 volts and 13 amps and is configured to replace Whirlpool part WP4456027 on compatible range models.

• Push-to-turn infinite switch with push-button actuator and eight control positions
• Panel-mount design with spade terminals and brass contact material for wiring
• Electrical rating shown as 240 V, 13 A (note: product listing also shows 1800 W which is inconsistent with 13 A at 240 V)

Product Highlights

Panel-mount infinite burner control with eight positions, spade terminals, brass contacts, and compatibility with Whirlpool WP4456027

Product Information

Standard Information

• Brand: CHOICE MANUFACTURED PARTS
• Manufacturer Part Number: 4456027
• Country of Origin: Croatia

Technical Specifications

• Brand: Choice Manufactured Parts
• Manufacturer Part Number: 4456027
• Model: ER4456027
• Product Type: Range burner infinite control switch
• Style: Push to turn / Push button
• Input Voltage: 240 V
• Output Current: 13 A (see note on power inconsistency)
• Power (Wattage): 1800 W (INCONSISTENT with 13 A at 240 V — see notes)
• Number of Positions: 8
• Terminals: Spade terminals (eight 1/4" male spade)
• Mounting Type: Panel mount
• Actuator Type: Push button (push-to-turn)
• Contact Material: Brass
• Shaft: Figure-8 style shaft with retaining clip
• Material Type: Metal
• Compatible Model: WP4456027
• Replaces: WP4456027, AP3174889, AP6009491, PS650622, PS11742653
• Compatible Brands: Whirlpool, Amana, Jenn Air, Kenmore, Magic Chef, Maytag
• Country of Origin: Croatia
• UPC: 810104501675
• Item Weight: 1.0 lb
• Included Components: 1
