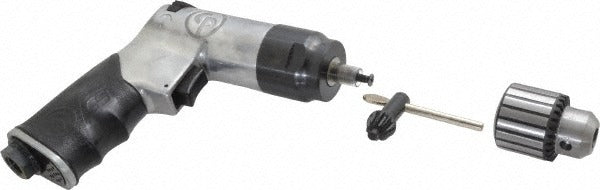

Chicago Pneumatic T025180 Air Drill 3/8 in Keyed Chuck

Product Description

The CHICAGO PNEUMATIC T025180 is a reversible pneumatic drill designed for production and general-purpose fastening, drilling, and assembly work in trade and industrial environments. Powered by compressed air at 90 psi, it delivers 2,600 RPM and 3.10 ft/lb of torque through a 3/8 inch keyed chuck. The pistol grip handle provides a stable, familiar hold for extended use. Rated at 0.5 hp and requiring 7.50 CFM at a 1/4 inch NPTF inlet, it fits standard shop-air setups. Machinists, fabricators, maintenance techs, and industrial assembly personnel are the primary installers and operators of this tool.

The T025180 is suited for light-to-medium drilling and fastening tasks in residential construction, commercial maintenance, and light manufacturing environments. The reversible function makes it practical for both driving and backing out fasteners. The 3/8 inch keyed chuck accepts a wide range of standard drill bits and driver accessories. An air hose is included, making the tool ready to connect to an existing compressed-air supply. Overall length measures 7.0 inches, keeping the tool compact for work in confined spaces.

Key Features

• 3/8 inch keyed chuck accepts standard bits and accessories
• Reversible operation for driving and removal applications
• 2,600 RPM free speed with 3.10 ft/lb of torque output
• 0.5 hp motor runs at 90 psi operating pressure
• 7.50 CFM air consumption via 1/4 inch NPTF inlet
• Compact pistol grip body at 7.0 inches overall length
• Air hose included for immediate hookup to shop supply

Compatibility

Designed for use with standard compressed-air systems supplying 90 psi through a 1/4 inch NPTF fitting. Compatible with any shop air compressor and hose assembly meeting those inlet and pressure requirements.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety practices. Before connecting or disconnecting the air hose, depressurize the line and verify the inlet fitting matches the 1/4 inch NPTF port. Inspect the air supply for moisture and install an inline filter-regulator-lubricator if not already present to protect internal components and maintain consistent operating pressure. Always insert and tighten the chuck key before operating, and confirm the reversing collar is fully engaged in the desired direction before applying air pressure.
