Chicago Pneumatic 8941074060 Air Die Grinder 0.34 Hp

Product Description

The CHICAGO PNEUMATIC 8941074060 is a straight-style air die grinder built for grinding, deburring, porting, and surface finishing in professional trade and industrial settings. Powered by compressed air at 90 psi and drawing 2.7 CFM, it delivers 23,000 RPM through a 1/4 inch collet. The composite housing keeps weight at 1.82 pounds, reducing fatigue during extended use. A comfort grip handle provides control during precision material removal. Rear exhaust directs air away from the workpiece and operator, keeping the work area clear. This tool is installed and operated by machinists, fabricators, automotive technicians, and general maintenance trades.

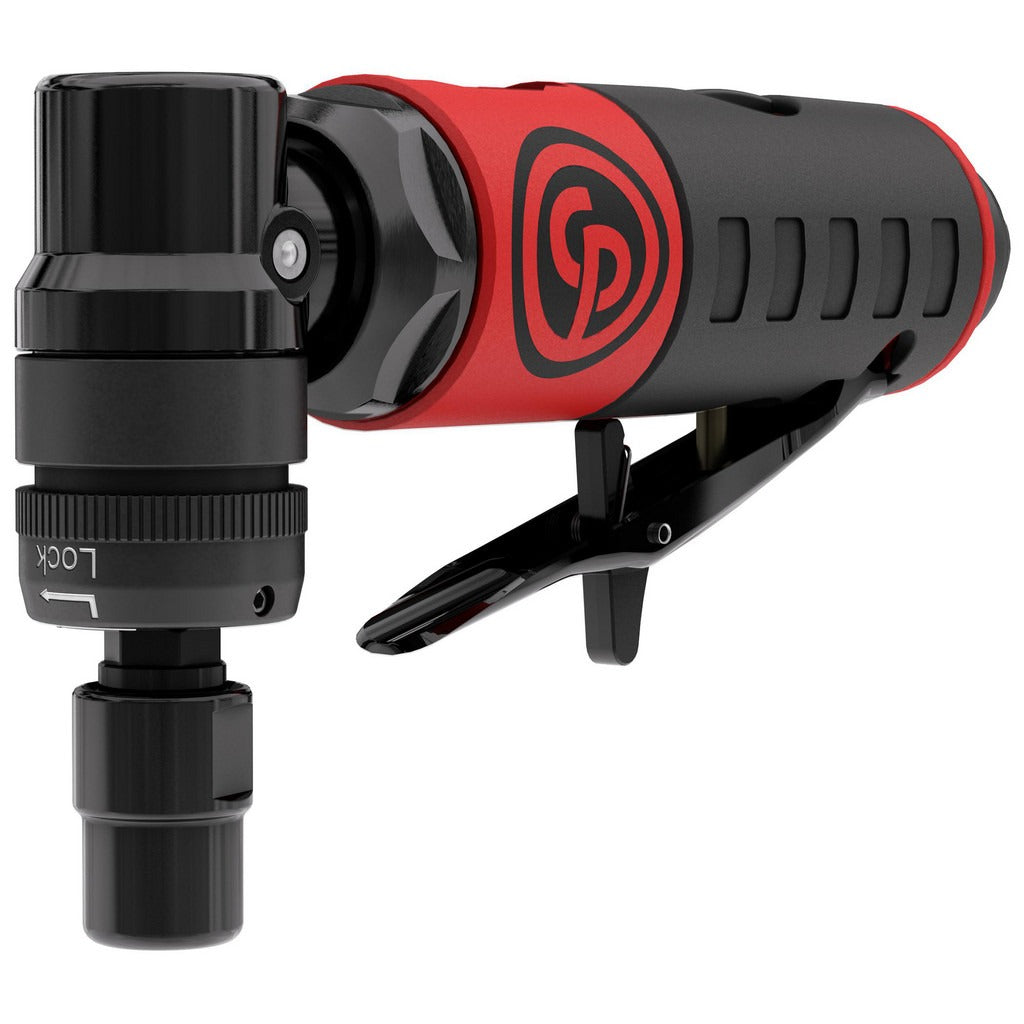

The 8941074060 is suited for die grinding, deburring, and finishing work in automotive, fabrication, and industrial maintenance applications. The angle-style head allows access to confined areas and tight workpiece geometries. At 6.4 inches in overall length, it fits comfortably in the hand for both overhead and detail work. The included 6mm collet expands compatibility with metric shanked accessories alongside standard 1/4 inch bits. Typical uses include weld cleanup, port matching, gasket surface preparation, and precision material removal on metal components.

Key Features

• 23,000 RPM free speed with a rated operating pressure of 90 psi
• 2.7 CFM air consumption suitable for mid-size shop compressors
• Rear exhaust directs airflow away from operator and workpiece
• Composite housing reduces overall tool weight to 1.82 pounds
• Comfort grip handle for extended-use fatigue reduction
• Includes 1/4 inch collet, 6mm collet, and spanner wrench

Compatibility

Accepts standard 1/4 inch shank rotary accessories and 6mm shank accessories as included. Requires a compressed air supply capable of delivering at least 2.7 CFM at 90 psi through a 1/4 inch inlet connection.

Installation Notes

Depressurize the air line and disconnect the tool from the air supply before installing or changing collets or accessories. Use the included spanner wrench to secure the collet nut — do not exceed the rated accessory speed listed on the grinding wheel or burr being used. Verify that the air supply regulator is set to 90 psi before operation. This tool should be operated only with accessories rated for speeds at or above 23,000 RPM.
