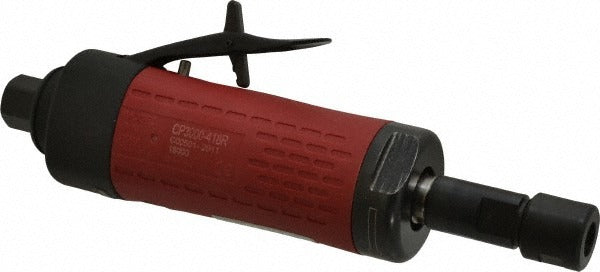

Chicago Pneumatic 6151600200 Air Die Grinder 0.5 Hp

Product Description

The CHICAGO PNEUMATIC 6151600200 is a straight-handle air die grinder designed for precision grinding, deburring, and surface preparation in professional shop and field environments. Rated at 0.5 HP, it operates at 18,000 RPM and accepts a 1/4-inch collet, making it compatible with the most common rotary accessory tooling used in metalworking and fabrication. The grinder requires 90 psi inlet pressure and consumes 21.19 CFM at full load. The rear exhaust port directs spent air away from the work surface and the operator, keeping sightlines clear during close-tolerance work. The composite housing keeps the tool lightweight at 1.7 pounds.

This die grinder is suited for use by automotive technicians, fabricators, pipefitters, and maintenance mechanics who need a compact, straight-body pneumatic grinder for die work, port matching, weld cleanup, and similar precision material removal tasks. It is built for use on a shop air system capable of sustaining adequate volume and pressure at the tool inlet. A properly sized air compressor and supply line are required to maintain consistent performance at the rated 21.19 CFM demand.

Key Features

• 0.5 HP air motor delivers consistent rotational force for grinding and deburring
• 18,000 RPM operating speed supports a wide range of rotary burrs and mounted points
• 1/4-inch collet accepts standard die grinder tooling widely available in trade supply
• Rear exhaust design redirects airflow away from the work area
• Composite housing reduces overall tool weight to 1.7 pounds for extended use comfort
• 77 dB noise rating is among the lower end for pneumatic rotary tools

Compatibility

Designed for use with standard 1/4-inch shank rotary burrs, grinding bits, and mounted points. Requires a pneumatic supply delivering 90 psi and sufficient volume to sustain 21.19 CFM at the tool inlet.

Installation Notes

Installation and operation of pneumatic tools should be performed by qualified technicians familiar with compressed air systems. Always depressurize and disconnect the air supply line before changing collets or accessories. Verify that the air supply line, fittings, and quick-connect couplers are rated for the operating pressure and CFM demand of this tool. Inspect the collet and collet nut for wear before each use and ensure accessories are properly seated and tightened before applying air pressure.
