Chicago-Latrobe GREIN-48825CL Chicago-Latrobe 48825 General Purpose Screw Machine Drill Y Drill - Letter 0.404 in

Product Description

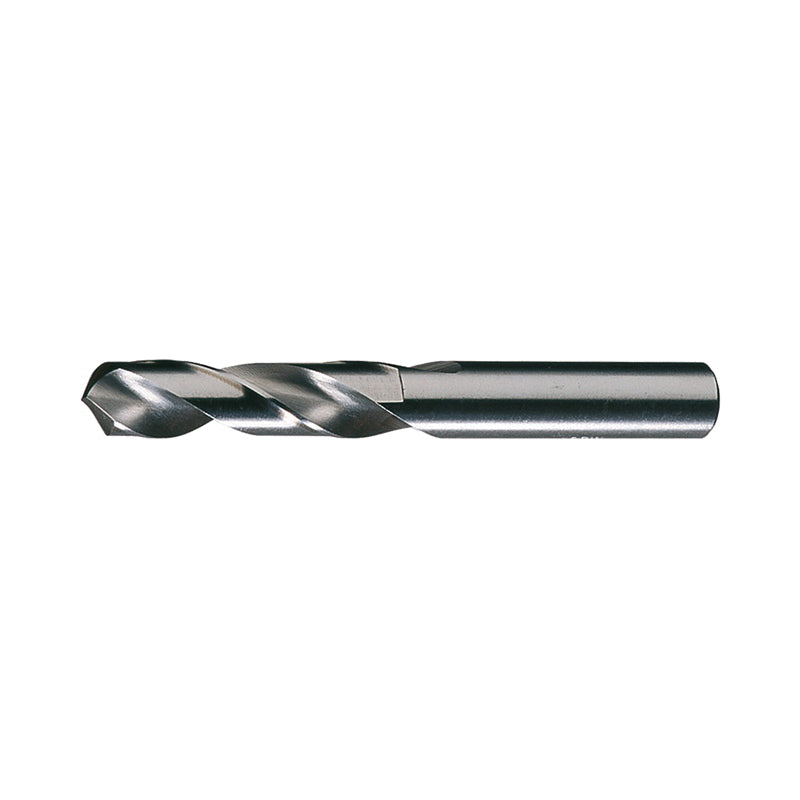

The Chicago-Latrobe® GREIN-48825CL is a general-purpose screw machine drill. It features a diameter of zero point four zero four inches and is designed with high-speed steel for durability. The drill measures three and five-sixteenths inches in overall length and supports a cutting depth of three times the diameter.

• General purpose geometry suitable for various materials
• Shorter overall length for improved rigidity
• Right-hand cutting direction for efficient drilling

Product Highlights

This drill is ideal for drilling in alloys, carbon steel, cast iron, and non-ferrous materials, ensuring versatility for a range of applications.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48825CL

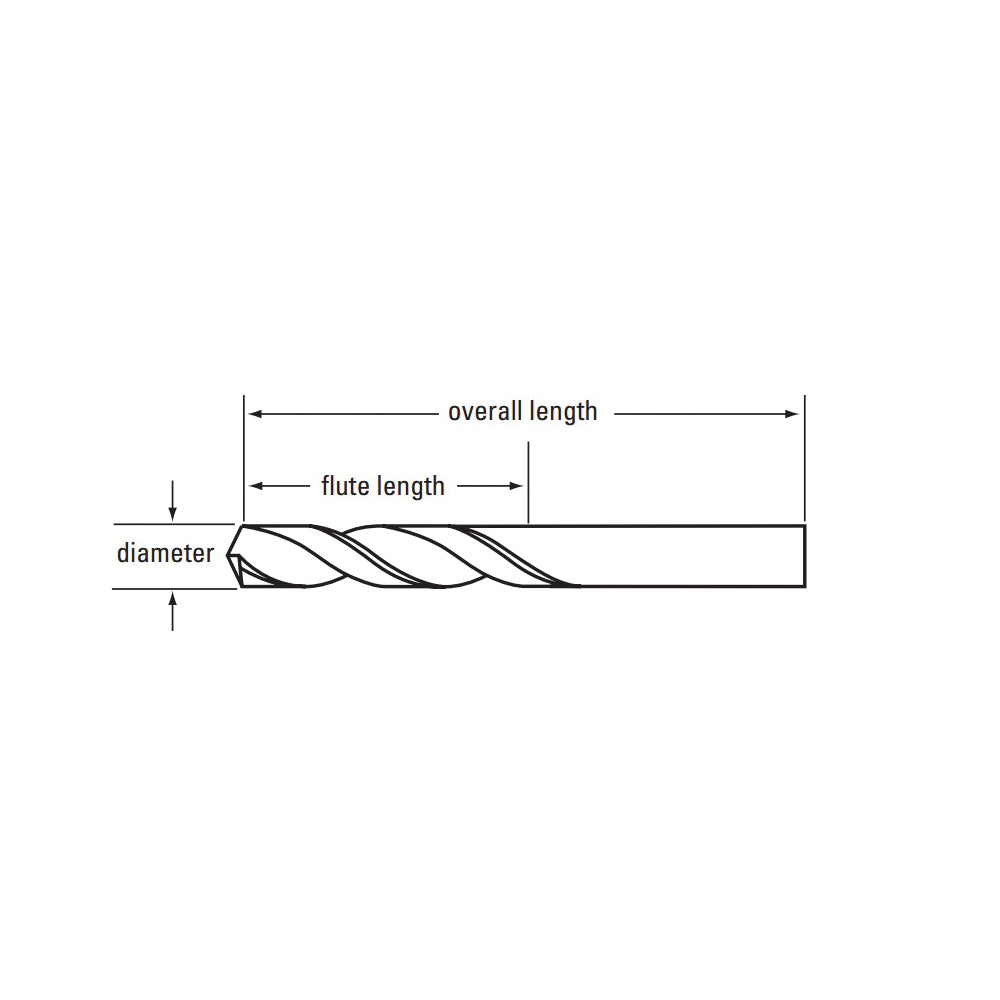

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-15/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-5/16 in
• Point Angle: 118 deg
• Point Type: Radial
• Series: 157
• Shank Size: 0.404 in Dia x 1.375 in L
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Letter: Y
• Drill Size - Decimal Inch: 0.404 in
• Material: HSS
• Finish: Bright
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
