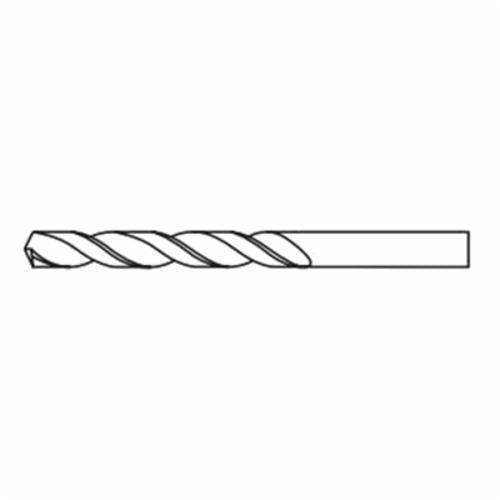

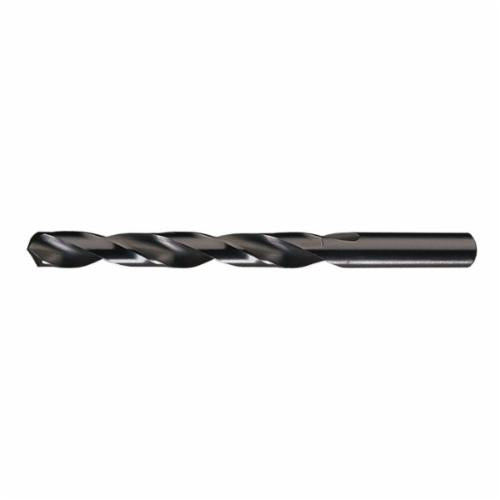

Chicago-Latrobe GREIN-44079 150 General Purpose Jobber Length Drill Bit #9 Drill - Wire 0.196 in

Product Description

The Chicago-Latrobe GREIN-44079 is a versatile jobber length drill bit designed for general purpose applications. It features a #9 drill size with a diameter of zero point one nine six inches. This drill bit has a cutting depth of five times its diameter and an overall length of three and five-eighths inches.

• Designed for materials like carbon steel and cast iron.
• Features a right hand cutting direction and radial point for precision.
• Constructed from high-speed steel with a black oxide finish.

Product Highlights

This drill bit is suitable for use in various materials, providing efficient and reliable drilling performance.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44079

Technical Specifications

• Applicable Materials: Carbon Steel and Cast Iron
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 2-7/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 3-5/8 in
• Point Type: Radial
• Series: 150
• Shank Size: 0.196 in Dia x 1.1875 in L
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Wire: #9
• Drill Size - Decimal Inch: 0.196 in
• Point Angle: 118 deg
• Material: HSS
• Finish: Black Oxide
• Through Coolant: No
