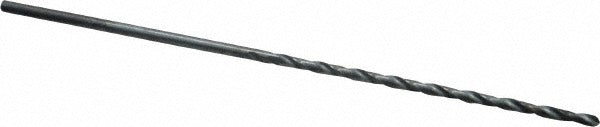

Chicago-latrobe 50331 Taper Length Drill Bit 0.0960 in

Product Description

The CHICAGO-LATROBE 50331 is a taper length drill bit designed for general-purpose drilling in alloy steel, carbon steel, and cast iron. It measures 0.0960 inches in diameter, corresponding to wire gauge size 41, and features a 118-degree standard point angle with web thinning for improved centering and reduced thrust. The bit is manufactured from high speed steel and carries a coated finish that extends tool life during repetitive drilling operations. HVAC fabricators, pipefitters, electricians, and general metalworking trades commonly reach for this size when drilling pilot holes or clearance holes in ferrous materials.

This drill bit suits production and maintenance drilling applications across residential and light commercial job sites, as well as shop fabrication environments. The straight shank accommodates standard three-jaw chucks on drill presses and portable drills. The taper length body provides additional flute length compared to a jobber-length bit, allowing deeper chip evacuation in materials that generate long stringy chips. It is rated for general-purpose performance in alloy steel, carbon steel, and cast iron per the manufacturer specifications.

Key Features

• Wire gauge size 41, 0.0960-inch diameter with a tight tolerance of +0.0000 to -0.0005 inches
• 118-degree standard point angle with web thinning and tapered web configuration for accurate starting
• High speed steel construction for durability in ferrous metal drilling
• Coated finish extends cutting edge life in repetitive applications
• Spiral right-hand cut flutes with 2.5-inch flute length promote chip clearing in deeper holes
• Straight shank fits standard drill chucks without adapters

Compatibility

Designed as a general-purpose taper length drill bit for use in alloy steel, carbon steel, and cast iron. Compatible with any standard three-jaw chuck accepting a 0.0960-inch straight shank.

Installation Notes

Install and remove drill bits only after the drill press or power tool has come to a complete stop and is unplugged or locked out per applicable safety procedures. Secure the straight shank fully within the chuck jaws and tighten with a chuck key before beginning any drilling operation. Use appropriate cutting fluid or lubricant when drilling ferrous metals to maintain edge life and reduce heat buildup. Wear eye protection at all times; chip hazards are present when drilling metal.
