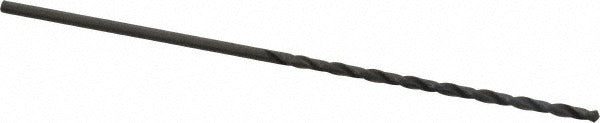

Chicago-latrobe 50323 Taper Length Drill Bit 0.1130 in

Product Description

The CHICAGO-LATROBE 50323 is a taper length drill bit designed for general-purpose drilling in metal and industrial applications. It carries a 0.1130-inch diameter (Wire Size 33) and is ground to a standard 118-degree split point with web thinning to reduce walking and improve chip clearance. The bit is constructed from high speed steel with a coated finish for added wear resistance. The straight shank and taper-length flute configuration make it a practical choice for machinists, tool-and-die shops, and maintenance technicians who need a longer reach than a jobber-length bit provides without stepping up to a full aircraft-length tool.

This bit is suited for production and maintenance drilling in alloy steel, carbon steel, and cast iron. The taper-length body gives additional clearance when drilling into deeper sections or through fixtures. The right-hand spiral flute promotes efficient chip evacuation. It fits standard drill chucks that accept a 0.1130-inch straight shank, making it compatible with benchtop drill presses, CNC machining centers, and hand-held power drills used in light-to-medium fabrication work.

Key Features

• 118-degree standard point angle with web thinning for reduced thrust and improved centering
• High speed steel construction for durability across ferrous materials
• Coated finish extends tool life in repetitive drilling operations
• Taper-length flute at 2.75 inches provides deeper reach than standard jobber bits
• Right-hand cut with regular spiral flute for consistent chip ejection
• Straight shank at 0.1130 inches fits standard drill chucks without adapters

Compatibility

Rated for drilling alloy steel, carbon steel, and cast iron. Fits any drill chuck accepting a 0.1130-inch straight shank. Suitable for general-purpose machining and maintenance applications per Series 120 specifications.

Installation Notes

Installation and use should be performed by a qualified machinist or maintenance technician. Secure the shank firmly in the drill chuck and verify runout before starting. Disconnect or de-energize the machine before changing bits. Use appropriate cutting fluid or coolant when drilling ferrous materials to extend tool life; this bit does not support coolant-through delivery.
