Chicago-latrobe 49420 Screw Machine Drill Bit 0.07 in

Product Description

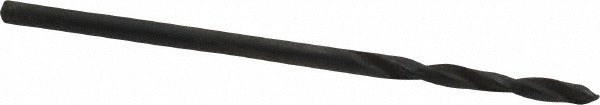

The CHICAGO-LATROBE 49420 is a screw machine length drill bit designed for high-cycle, close-tolerance drilling in metalworking applications. Built from high speed steel (HSS) with a coated finish, this bit handles cast iron and steel with consistent performance across production runs. It measures 0.07 inches (Wire Size 50) in diameter with a 135-degree split point that reduces walking and allows drilling without a center punch. The shortened screw machine length body improves rigidity in turret lathes, drill presses, and CNC screw machines. Web-thinned construction reduces thrust load, extending tool life on heavy-duty jobs.

This drill bit is suited for production machining environments where rigid setups and tight tolerances are required. The Series 159 design is a heavy-duty classification intended for ferrous metals including cast iron and steel. Typical applications include screw machine shops, production drilling operations, and precision fabrication work requiring repeatable hole quality. The straight-cylindrical shank fits standard drill chucks and collet systems commonly found in machine shop equipment.

Key Features

• Wire Size 50 (0.07 inches diameter) with diameter tolerance of +0.0000 to -0.0005 inches for precise hole sizing
• 135-degree split point reduces drill walking and lowers entry thrust on hard ferrous materials
• High speed steel construction with coated finish for improved wear resistance
• Screw machine length body increases rigidity and reduces deflection compared to jobber-length bits
• Web-thinned, parallel web configuration reduces cutting resistance and heat buildup
• Meets NAS 907 and ISO standards for dimensional and performance consistency

Compatibility

Designed as an OEM-style replacement or direct-use screw machine drill bit for production drilling in cast iron and steel workpieces. Compatible with standard drill chucks and collet holders accepting straight-cylindrical shanks in the 0.07-inch diameter range.

Installation Notes
