Chicago-Latrobe 48819 General Purpose Screw Machine Drill S Drill 0.348 in

Product Description

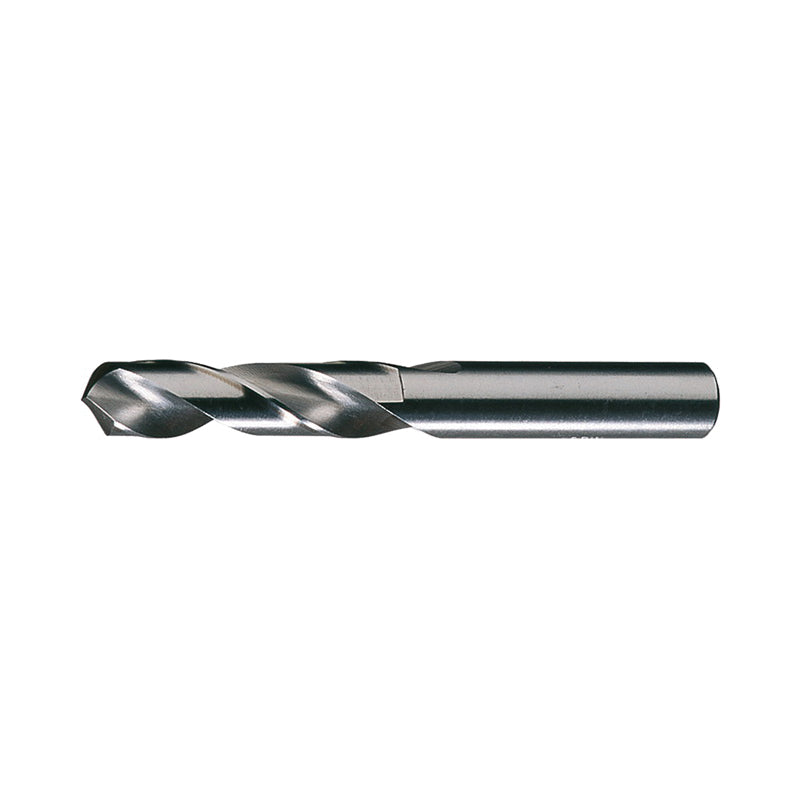

Chicago-Latrobe Screw Machine Drill with MPN GREIN-48819CL is designed for general drilling purposes. It features a drill size of 0.348 inches and a robust overall length of three and one-sixteenth inches. This drill is suitable for various applications and materials.

• General purpose drill for diverse materials
• Right hand cutting direction with two flutes
• High-speed steel construction ensures durability

Product Highlights

The drill's geometry is optimized for a wide range of operating conditions, providing reliable performance. The shorter flute design enhances rigidity, minimizing deflection during heavy feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-48819CL

Technical Specifications

• Type: General Purpose
• Material: HSS
• Finish: Bright
• Overall Length: 3-1/16 in
• Drill Diameter Measurement System: Imperial
• Flute Length: 1-3/4 in
• Cutting Depth: 3XD
• Point Angle: 118 deg
• Shank Size: 0.348 in Dia x 1.3125 in L
• Flute Type: Right Spiral
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Non-Ferrous Materials
