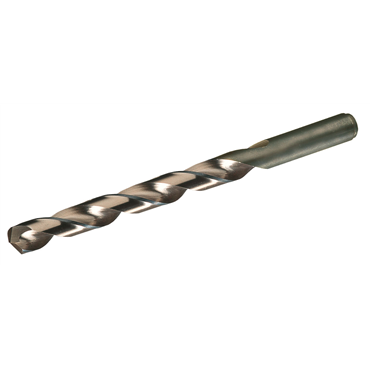

Chicago-Latrobe 46612 Drill Bit 3/16 in

Product Description

The Chicago-Latrobe 46612 is a drill bit with a diameter of three sixteenths of an inch, made from HSS-CO 8% (M42) material. This drill bit is suitable for heavy-duty operations on various materials like alloy steel, stainless steel, and titanium.

• Made from high-speed cobalt steel for durability
• Features a 135-degree point angle for easier penetration
• Jobber length design for versatile drilling applications

Product Highlights

The robust design allows for effective drilling on high-tensile and work-hardening materials, making it ideal for professional use.

Product Information

Standard Information

• Material: HSS-CO 8% (M42)
• Overall Length: 3.5 inches

Technical Specifications

• Point Angle: 135 degrees
• Diameter: 0.1875 inches
• Shank Length: 1.1875 inches
• Flute Length: 2.3125 inches
• No. of Flutes: 2
• Shank Type: Straight
• Cutting Diameter (Nominal): 0.1875 inches
• Applicable Materials: Alloy Steel, Stainless Steel, Titanium, Tool Steel
