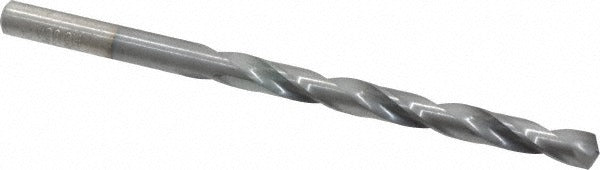

Chicago-latrobe 43614 7/32 Inch Hss Ticn Drill Bit

Product Description

The CHICAGO-LATROBE 43614 is a jobber-length twist drill bit designed for high-performance metal drilling in trade and industrial applications. Built from M7 high speed steel with a TiCN (titanium carbonitride) coating, it delivers extended tool life and improved wear resistance compared to uncoated HSS bits. The 135-degree split point reduces walking and allows drilling to start without a center punch on most surfaces. The bit measures 7/32 inch (0.2188 inch decimal) in diameter with a 3-3/4 inch overall length and a 2-1/2 inch flute length. It is rated heavy duty and meets NAS 907 Type B standards.

This bit is suited for drilling cast iron, stainless steel, and carbon steel in fabrication shops, maintenance environments, and field service work. The straight cylindrical shank fits standard drill chucks and is compatible with both hand-held and bench-mounted drilling equipment. The regular spiral flute geometry and right-hand cut make it a general-purpose choice for production drilling or single-hole work in hard metals where a standard twist drill is appropriate.

Key Features

• M7 high speed steel construction rated for heavy-duty use
• TiCN coating increases surface hardness and reduces friction for longer tool life
• 135-degree split point minimizes walking and reduces required thrust force
• Web-thinned, tapered web configuration improves chip evacuation
• Right-hand cut with regular spiral flute for consistent chip removal
• Meets NAS 907 Type B specification for controlled dimensional tolerances

Compatibility

Designed for drilling cast iron, stainless steel, and steel workpieces. Fits standard straight-shank drill chucks. Part of the CHICAGO-LATROBE Series 150ASP-TC jobber-length drill bit line.

Installation Notes

Installation of this drill bit requires a compatible drill chuck sized for a straight cylindrical shank. Secure the shank fully in the chuck before operation and verify chuck key is removed before starting the drill. Use appropriate cutting fluid or coolant when drilling stainless steel or hardened materials to manage heat buildup. Inspect the cutting edge for wear or chipping before each use and replace when the split point shows signs of degradation to avoid workpiece damage.
