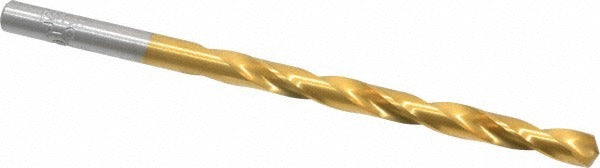

Chicago-latrobe 41679 No. 9 Hss Tin Drill Bit 135deg

Product Description

The CHICAGO-LATROBE 41679 is a jobber-length drill bit in wire gauge No. 9 (0.1960 inches) ground from high speed steel and finished with a titanium nitride (TiN) coating. The 135-degree split point reduces walking and cutting force at startup, making it effective for production and precision work. A web-thinned, tapered web construction lowers thrust requirements and improves chip evacuation. Overall length is 3-5/8 inches with a 2-7/16 inch spiral flute. The straight-cylindrical shank measures 1-3/16 inches in diameter. This is a heavy-duty, high-performance bit suited for machinists, toolroom technicians, and maintenance tradespeople who drill daily.

The 41679 is designed for use in ferrous materials including cast iron, stainless steel, and carbon steel. The TiN coating extends cutting life in abrasive and work-hardening materials compared to uncoated HSS. The regular spiral flute geometry and right-hand cut configuration make this bit compatible with standard drill presses, CNC machining centers, and handheld power drills equipped with a keyless or keyed chuck. It is packaged as a single unit and meets NAS 907 Type B standards, making it appropriate for aerospace-adjacent maintenance and repair operations as well as general industrial use.

Key Features

• Wire gauge No. 9 diameter — 0.1960 inches — with a diameter tolerance of -0.0007 to 0.0000 inches for precision fitment
• 135-degree split point reduces thrust and minimizes bit walk on hard or curved surfaces
• Titanium nitride (TiN) coating improves surface hardness and extends tool life in ferrous materials
• Web-thinned tapered web reduces cutting resistance and promotes chip clearing
• Right-hand cut, regular spiral flute for use with standard drilling equipment
• Meets NAS 907 Type B specification — suitable for MRO and precision industrial applications

Compatibility

Rated for drilling cast iron, stainless steel, and steel. Compatible with standard straight-shank drill chucks. Coolant-through is not supported on this bit. Series 150ASP-TN.

Installation Notes

Install and remove the bit only with the drill fully powered down and unplugged or locked out per applicable LOTO procedures. Secure the straight-cylindrical shank fully in the chuck jaws and tighten before operation. Use cutting fluid appropriate for the workpiece material when drilling stainless steel or hardened steel to maintain edge life. Inspect the cutting edge and TiN coating before each use — a chipped or worn point should be reground or the bit replaced before drilling.
