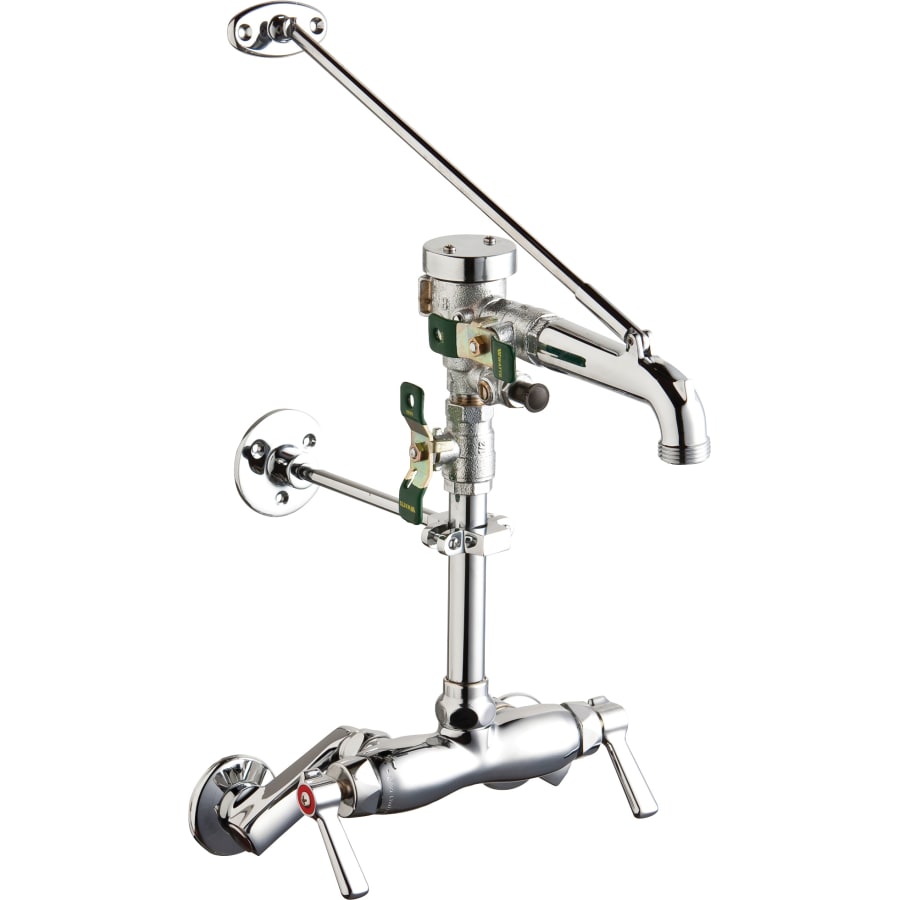

Chicago Faucets 445-PVBCP Sink Faucet Wall Mounted

Product Description

The CHICAGO FAUCETS 445-PVBCP is a wall-mounted sink faucet. It features a 3-3/8" body with adjustable arms from 3" to 8-3/8". The faucet includes a vacuum breaker and 2-1/2" offset inlet supply arm to prevent water pollution. Hot and cold water is controlled with vandal-proof 2-3/8" lever-style handles.

• Durable, polished chrome finish
• Adjustable arms 3" - 8-3/8" centers
• Quaturn compression operating cartridge

Product Highlights

This wall-mounted service sink faucet features adjustable centers and vandal-proof lever handles. Ideal for commercial applications.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 445-PVBCP
• Country of Origin: US

Technical Specifications

• MPN: 445-PVBCP
• Brand: CHICAGO FAUCETS
• Finish: Polished Chrome
• Material: Chrome Plated Brass
• Installation Type: Wall Mount
• Operating Pressure: 20-125 psi
• Operating Temp Range: 40 to 140°F
• Handle: 2-3/8" Lever handle (pair) (369-PRJKCP)
• Cartridge (Right): Quaturn® compression operating cartridge, right-hand (1-099XTJKABNF)
• Cartridge (Left): Quaturn® compression operating cartridge, left-hand (1-100XTJKABNF)
• Supply Arm: RCAB - 2-1/2" Offset Supply Arm with Integral Check and Shut-off Stop
• Vacuum Breaker: Vacuum breaker (892-044KJKRCF)
• Body: 3-3/8" body, adjustable arms 3" - 8-3/8" centers
• Handles: Handles include color-coded index
• Package Quantity: 1
• Spout Type: Rigid
• Faucet Centers: 8 in.
• Spout Height: 8-5/8 in
• Spout Reach: 7-3/8 in
• Drain Assembly Included: No
• Escutcheon Included: No
• Flange: Yes
• Handles Included: Yes
• Sidespray: No
• Soap Dispenser Included: No
• Valve Included: Yes
• Faucet Holes: 6
• Handle Material: Metal
• Handle Style: Lever
• Number Of Handles: 2
• Pullout Spray: No
• ADA: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1
• ASSE Code: 1001
• Certifications: ASSE, ASME, CSA
• CSA Code: B125.1
• Lead Leaching Certified NSF/ANSI 61: Yes
• Low Lead Compliant: No
• Type: Utility Sink
• Color Family: Chrome
• Handle Type: Lever
• Mounting Type: Wall
• Number of Faucet Holes: 2
• Finish/Color: Polished Chrome
• Center Distance: 8 in
• Commercial/Residential: Commercial
• Connection Size: 1/2 in
• Connection Type: FNPT
• Hose Size: 3/4 in
• Touchless (Yes/No): No
• Valve/Cartridge Type: Quaturn® Compression
• Body Size: 3-3/8"
• Adjustable Arms: 3" - 8-3/8"
• Spout: 7 3/8" Rigid Spout with 3/4" Male Hose Thread, Pail Hook, and Wall Brace
• Cartridge: XT - Quaturn Compression Operating Cartridge (Display Packaging)
• Slip Flange: 2 5/16" Diameter Slip Flange
