Chicago Die Casting 325VP-1/2 Variable Speed Pulley

Product Description

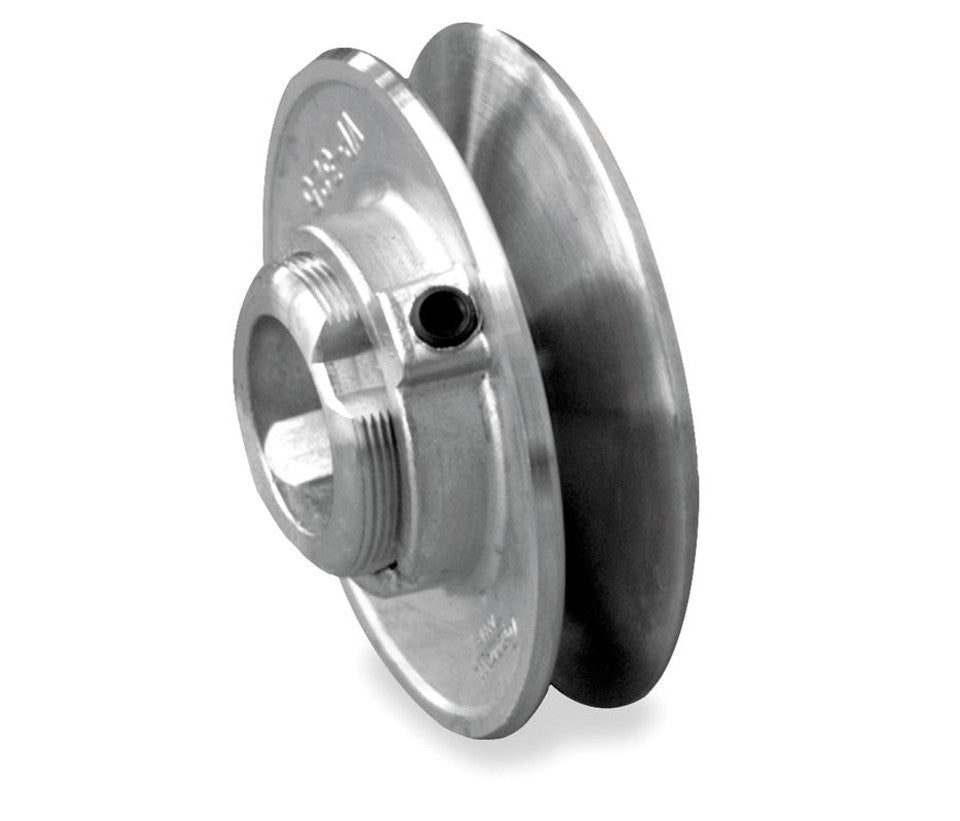

The Chicago Die Casting 325VP-1/2 is a variable speed pulley suitable for fractional horsepower applications, such as furnace blowers and evaporative coolers. This pulley has a bore of one-half inch and a diameter of three and one-quarter inches, specifically designed to work with A type V-belts. Its construction is from die-cast material, typically Zamak #3, recognized for its strength.

• Designed for fractional horsepower applications
• Features a bore of one-half inch and diameter of three and one-quarter inches
• Compatible with A type V-belts

Product Highlights

This pulley allows for adjustment of driven speed through a variable pitch operation, changing the effective diameter according to the needs of the application.

Product Information

Standard Information

• MPN: 325VP-1/2
• Brand: Chicago Die Casting

Technical Specifications

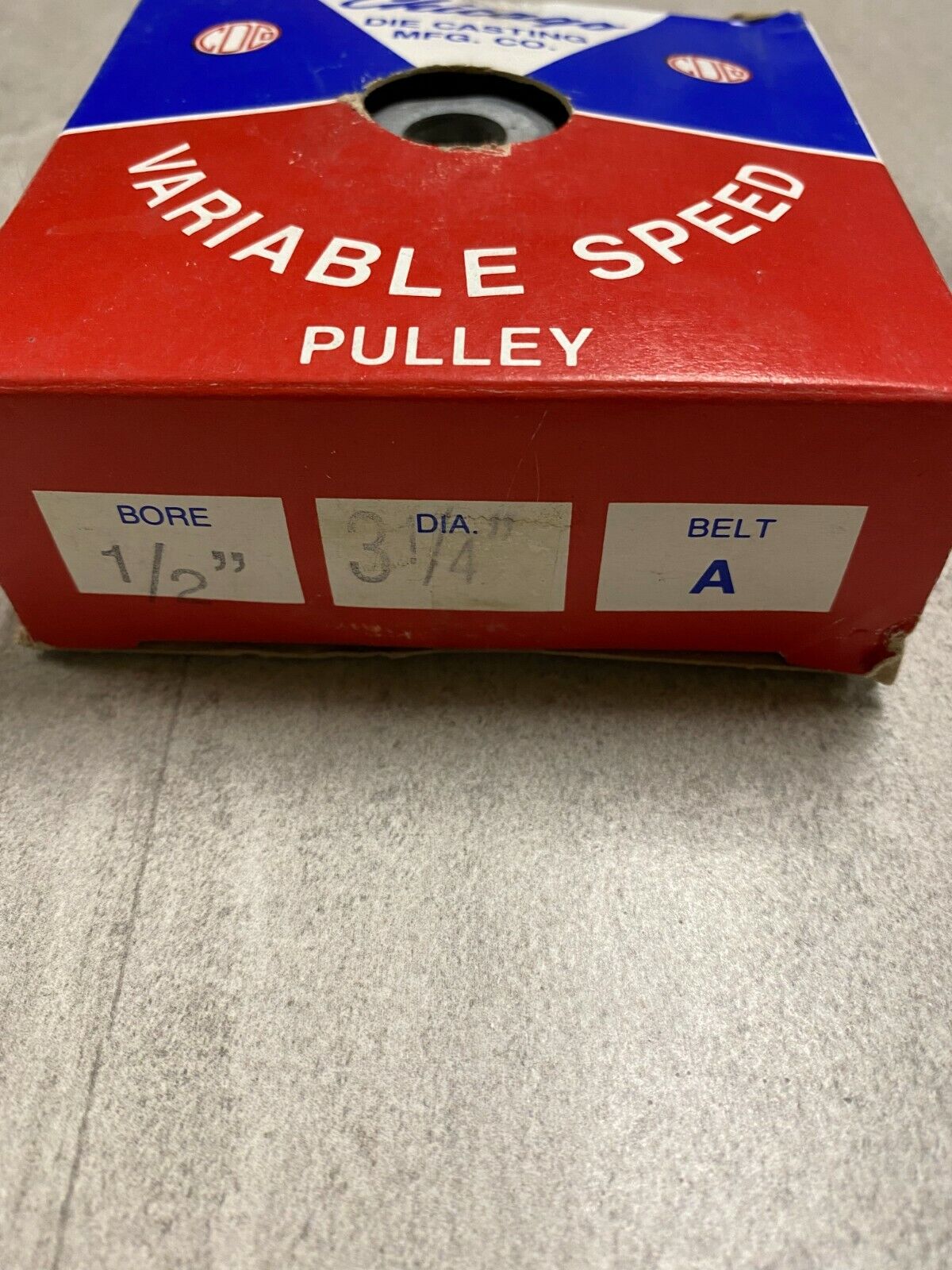

• Bore: 1/2 inch
• Diameter: 3 1/4 inch
• Belt Type: A
• Material: Die Cast (Zamak #3)
