Product Description

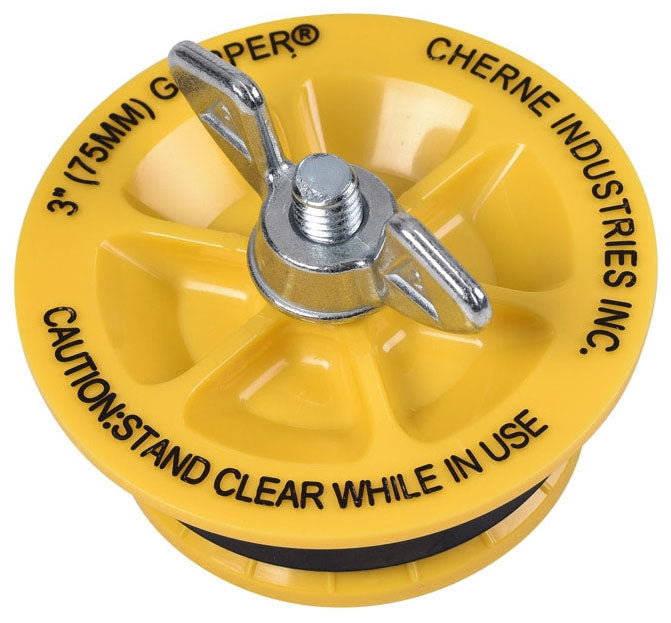

Cherne 270237 is a mechanical test plug designed for a plug/ball diameter of three inches. This plug features an extra-large wing nut that simplifies installation, requiring no wrench for tightening. It operates effectively under back pressure conditions up to seventeen PSI and can withstand a pressure head up to forty feet. The product is ideal for applications such as DWV (drain, waste, and vent) and stack testing.
- Plug/Ball diameter: 3 inches
- Plug/Ball length: 2.5 inches
- Material: Glass Reinforced ABS Plastic
Product Highlights

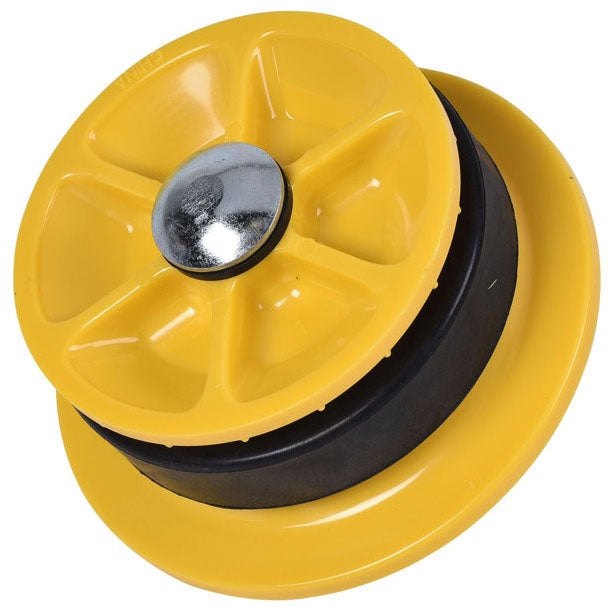

Cherne 270237 is constructed for both end-of-pipe and inside-of-pipe applications, making it versatile for various testing conditions. It comes with a natural rubber O-ring for optimal sealing capability and a galvanized carriage bolt to prevent corrosion.
Product Information
Standard Information
-
Brand: Cherne
-
MPN: 270237
Technical Specifications
-
Allowable Test/Back Pressure: 17 PSI
-
Allowable Pressure Head: 40 feet
-
Application: DWV and Stack Testing
-
Operation Type: Mechanical
-
Material: Glass Reinforced ABS Plastic
-
Inclusions/Features: Natural Rubber O-Ring, Zinc Wing Nut, Galvanized Carriage Bolt
-
Plug/Ball Length: 2.5 inches
-
Plug/Ball Diameter: 3 inches
