Charlotte Pipe PVC-504-10X10X6 Dwv Combo Wye 1/8 Bend

Product Description

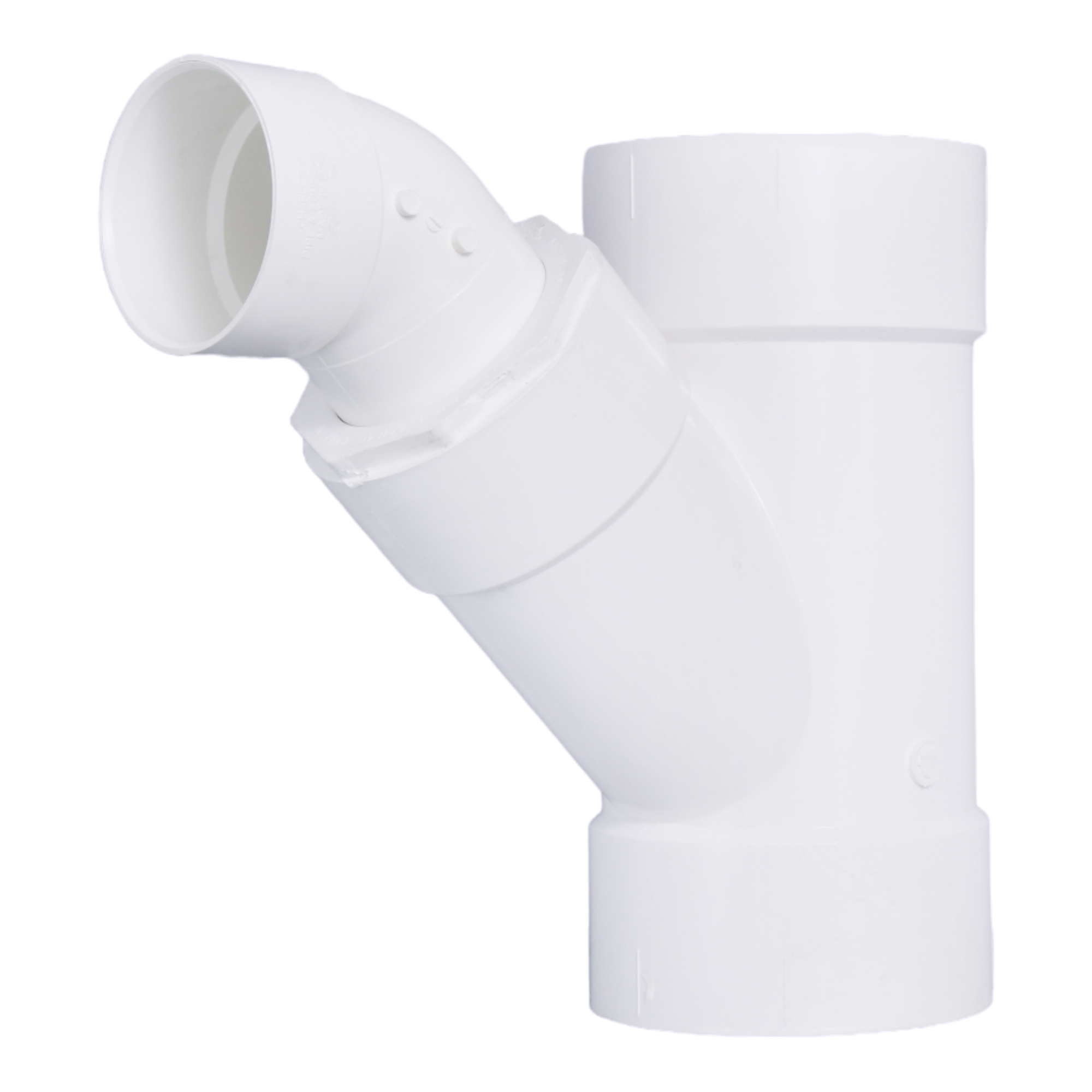

The CHARLOTTE PIPE PVC-504-10X10X6 is a two-piece PVC DWV combination wye and 1/8 bend fitting sized at 10 x 10 x 6 inches. It is designed for drain, waste, and vent applications in gravity-fed, non-pressure drainage systems. The fitting handles waste flow direction changes by combining a wye entry with a 1/8 bend sweep in a single assembly, reducing the need for additional fittings at the junction. It is rated for systems where temperatures will not exceed 140 degrees F. Licensed plumbers install this fitting in residential and light commercial DWV rough-in work.

This fitting is used in PVC DWV piping systems where a 10-inch main line requires a 6-inch branch takeoff with a directional change. Typical applications include building drain mains, stack bases, and horizontal branch connections in gravity-fed sanitary waste systems. The two-piece construction allows installation in tight spaces where a single-piece fitting may not be maneuverable. It is well suited for new construction and major renovation projects requiring large-diameter DWV configurations.

Key Features

• Two-piece design allows installation in confined spaces without full pipe rotation
• Combines wye and 1/8 bend geometry to minimize fitting count at directional branch points
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Rated for non-pressure gravity drain, waste, and vent service up to 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 10 x 10 x 6 inch PVC DWV piping systems in non-pressure gravity-fed sanitary drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable plumbing code, such as the IPC or local adopted equivalent. Shut off water supply and verify the line is depressurized and drained before cutting into an existing DWV stack or horizontal run. Use approved PVC DWV solvent cement and primer when joining; follow the cement manufacturer's cure time before restoring flow. Do not use this fitting in pressurized water supply lines or in systems where sustained temperatures exceed 140 degrees F.

Technical Specifications

• Material: PVC
• Service Type: Drain, Waste and Vent (DWV), Non-Pressure
• Fitting Type: Combination Wye and 1/8 Bend, Two-Piece
• Inlet Size: 10 inches
• Branch Size: 6 inches
• Maximum Temperature Rating: 140 degrees F
• Joining Methods: Solvent Cement, Threaded, Flanged, Roll-Grooved
• Country of Origin: USA
• UPC: 611942102389

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-504-10X10X6
