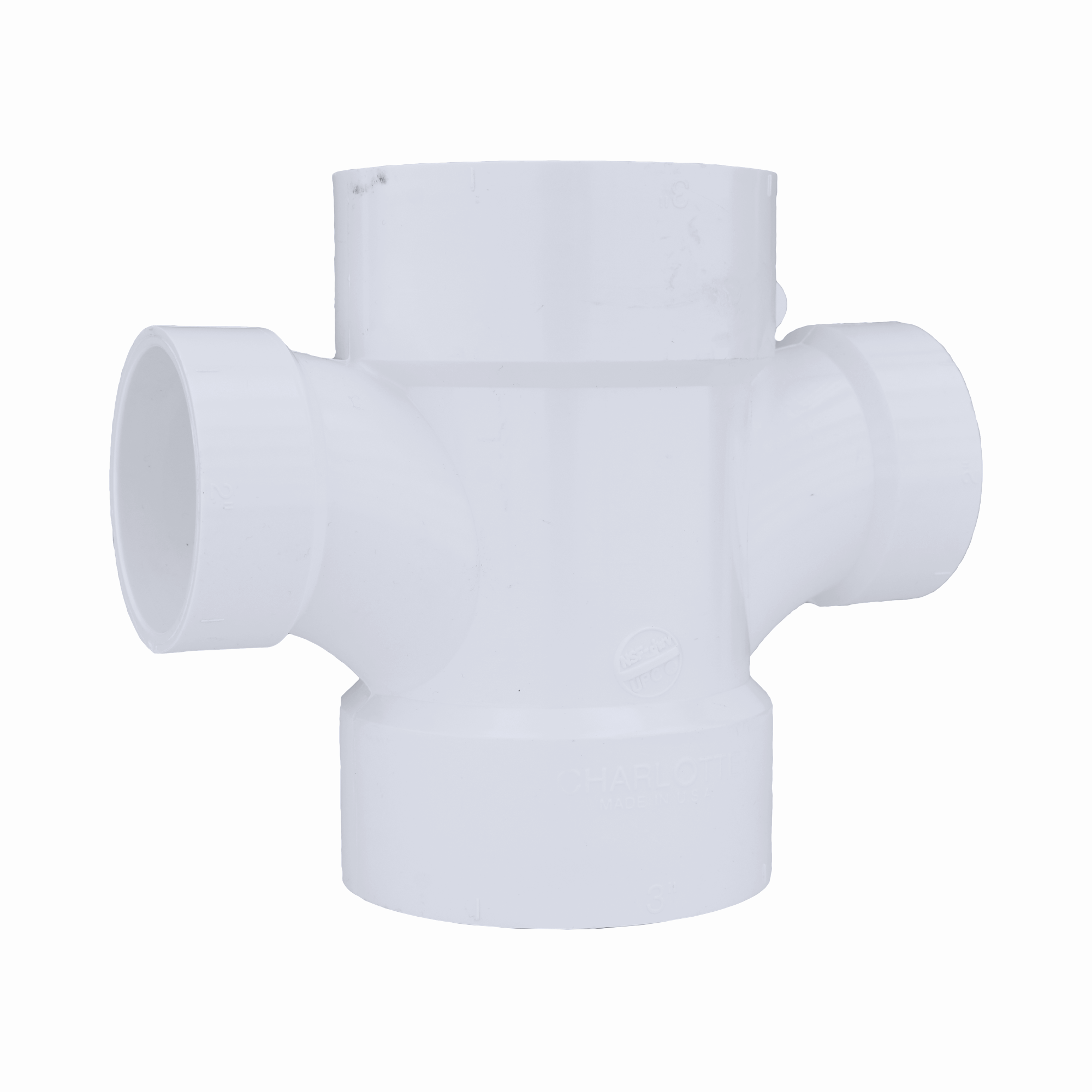

Charlotte Pipe PVC-429-3X3X2X2 Dwv Double Sanitary Tee

Product Description

The CHARLOTTE PIPE PVC-429-3X3X2X2 is a reducing double sanitary tee cross fitting designed for PVC drain, waste, and vent (DWV) piping systems. It transitions between 3-inch and 2-inch pipe runs, handling two inlet and two outlet connections within a single fitting body. This fitting is engineered for gravity-fed waste elimination in non-pressure applications where system temperatures do not exceed 140 degrees F. Licensed plumbers install this fitting during rough-in of residential and light commercial DWV systems, typically at points where branch lines of differing diameters converge.

This fitting is suited for residential and light commercial DWV installations where a 3-inch main line intersects with 2-inch branch connections. Common applications include bathroom groups, wet-wall assemblies, and stack configurations requiring flow direction changes with simultaneous diameter reduction. The double sanitary tee cross configuration allows two opposing branches to connect at the same fitting elevation, reducing total fittings count and simplifying rough-in layouts. PVC construction keeps the fitting lightweight and easy to handle on the job site.

Key Features

• Reducing double sanitary tee cross geometry — accommodates 3-inch and 2-inch pipe in a single fitting
• Rated for non-pressure DWV service up to 140 degrees F
• Compatible with solvent cement joining — no special cutting tools required
• Also supports threading, flanging, and roll-grooved joining methods
• Manufactured in the USA by Charlotte Pipe
• Lightweight PVC construction simplifies handling and installation in tight wall cavities

Compatibility

Designed as an OEM-style replacement and new-construction fitting for residential and light commercial PVC DWV piping systems operating under gravity-fed, non-pressure conditions.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local amendments. Shut off water supply and ensure the drain system is clear before beginning work. Pipe ends must be cut square, deburred, and cleaned before applying solvent cement; follow the cement manufacturer's open time and cure time requirements before allowing flow. Verify proper slope and support spacing per code before closing the wall.

Technical Specifications

• Material: PVC
• Application: Drain, Waste, and Vent (DWV)
• System Type: Non-pressure, gravity-fed
• Maximum Temperature: 140 degrees F
• Inlet Size: 3 inches
• Outlet Size: 2 inches
• Joining Method: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942035168

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-429-3X3X2X2
