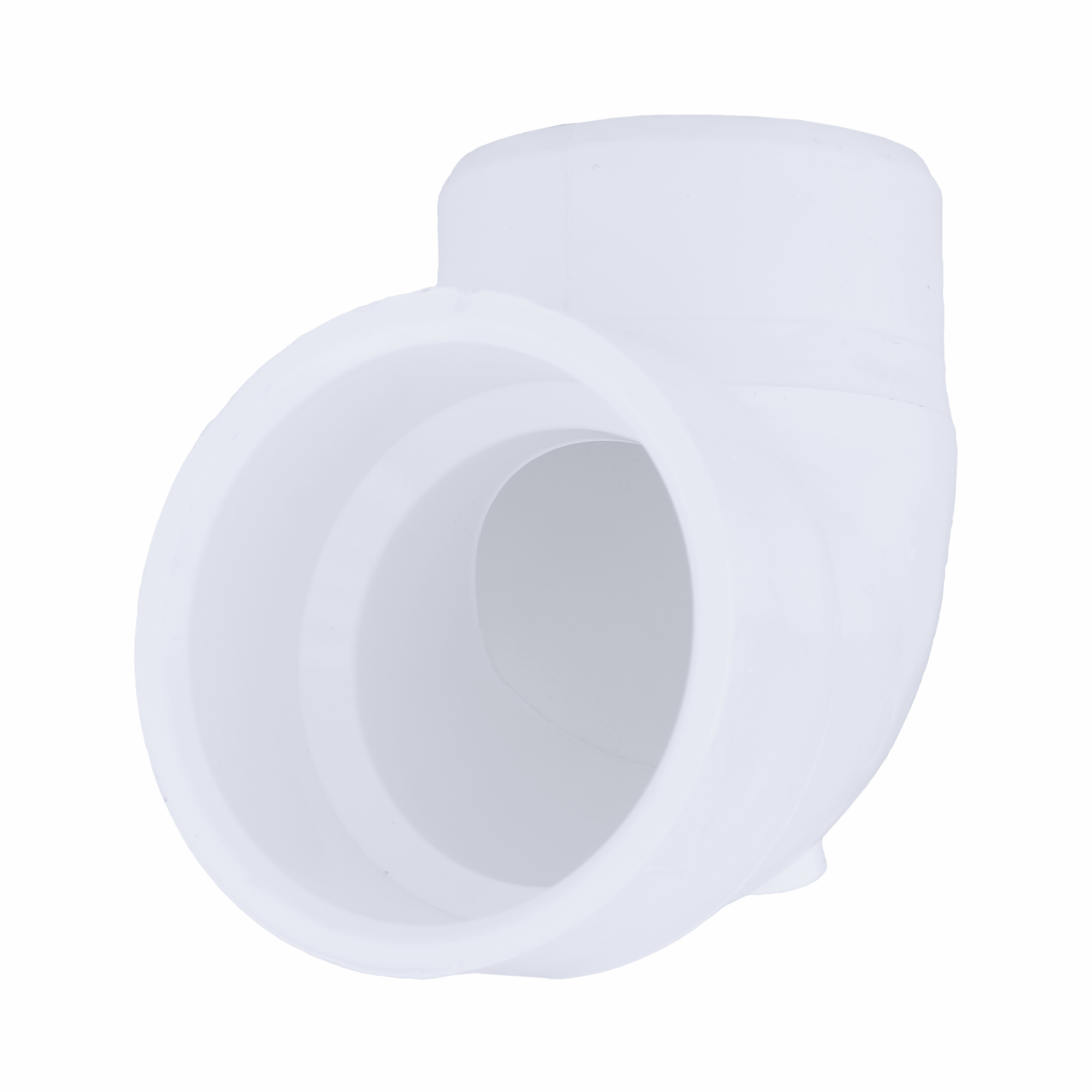

Charlotte Pipe PVC-333-1-1/2 Pvc Dwv Street Vent Elbow

Product Description

The CHARLOTTE PIPE PVC-333-1-1/2 is a 1-1/2 inch PVC DWV 90-degree street vent elbow fitting designed for drain, waste, and vent applications in non-pressure, gravity-fed plumbing systems. The street configuration means one end is a spigot and the other is a socket, allowing direct insertion into a fitting hub without a separate coupling. Rated for systems where temperatures do not exceed 140 degrees F, this fitting is suited for residential and light commercial drain and vent rough-in work. Licensed plumbers and pipefitters handle installation as part of DWV system assemblies.

This fitting is used in gravity-fed DWV piping systems for residential and commercial construction and remodel projects. The 90-degree bend makes it appropriate for vent line direction changes and drain offsets where a street-pattern elbow saves space and reduces the total number of fittings in the assembly. It is commonly installed in wall cavities and floor systems during rough-in plumbing. Its lightweight PVC construction simplifies handling in tight spaces.

Key Features

• Street elbow design: spigot on one end, socket on the other for direct hub insertion
• 90-degree bend angle for vent and drain direction changes
• Rated for non-pressure DWV systems up to 140 degrees F
• Compatible with solvent cement joining — no special cutting tools required
• Lightweight PVC construction for easy handling and installation
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-1/2 inch PVC DWV piping systems used in residential and commercial drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and ensure the pipe is dry before solvent cementing. Use the appropriate PVC primer and solvent cement for DWV fittings, and allow full cure time before restoring flow. Do not use this fitting in pressurized water supply systems.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Fitting Type: 90-Degree Street Vent Elbow (1/4 Bend)
• End Connection: Spigot x Socket (Street Pattern)
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent Cement
• Country of Origin: USA
• UPC: 611942034413

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-333-1-1/2
