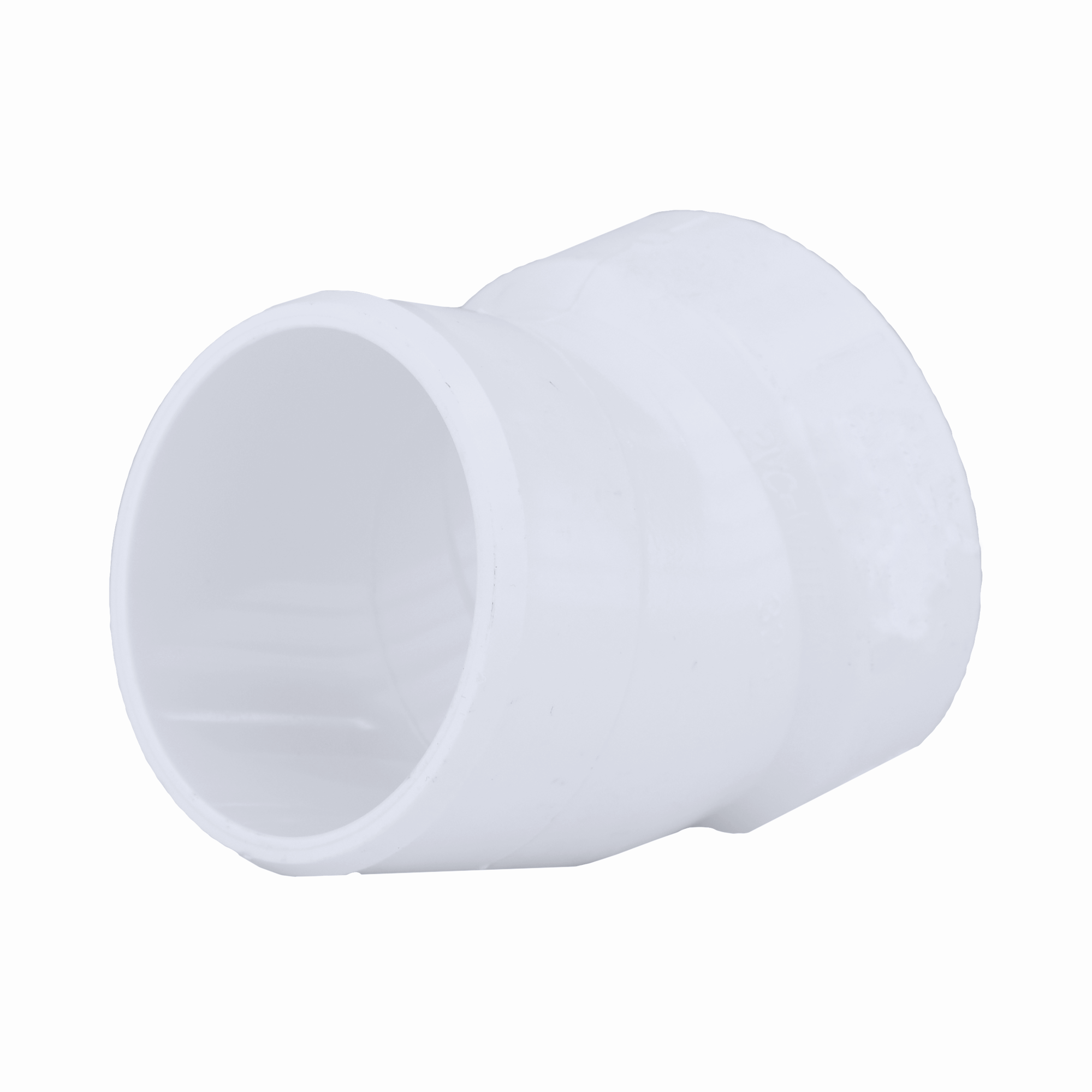

Charlotte Pipe PVC-326-2IN 2 Inch Pvc Dwv Street Elbow

Product Description

The CHARLOTTE PIPE PVC-326-2IN is a 2-inch PVC DWV 1/16 bend street elbow, also referred to as a 22-degree street ell, designed for drain, waste, and vent piping systems. This fitting is manufactured for non-pressure, gravity-fed waste elimination applications and is rated for temperatures up to 140 degrees F. Lightweight PVC construction simplifies handling and installation, and no special cutting tools are required. Licensed plumbers and experienced pipefitters install this fitting using solvent cement joining. It is manufactured in the USA.

This street elbow is used in residential and commercial DWV systems where a 22-degree directional change is needed along a drain or vent line. The street configuration means one end accepts a plain pipe or fitting hub, allowing direct insertion without an additional coupling. Typical applications include drain branch offsets, vent stack transitions, and waste line routing through framed walls or floor assemblies. It is suited for above-ground, non-pressure PVC DWV installations.

Key Features

• 22-degree (1/16 bend) street elbow configuration for moderate directional changes in DWV lines
• 2-inch nominal size fits standard Schedule 40 PVC DWV pipe and fittings
• Rated for non-pressure gravity-fed drain, waste, and vent service up to 140 degrees F
• Solvent cement joining — no special tools required for installation
• Lightweight PVC construction simplifies handling and positioning during rough-in
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and commercial PVC DWV piping systems using 2-inch nominal pipe and fittings.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the line is drained before modifying existing DWV runs. Clean and deburr pipe ends, then apply the correct PVC primer and solvent cement per the cement manufacturer instructions before joining. Do not use this fitting in pressurized water supply or high-temperature systems.

Technical Specifications

• Pipe Size: 2 inches
• Fitting Type: 1/16 Bend Street Elbow (22 degrees)
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent Cement
• Country of Origin: USA
• UPC: 611942034222

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-326-2IN
