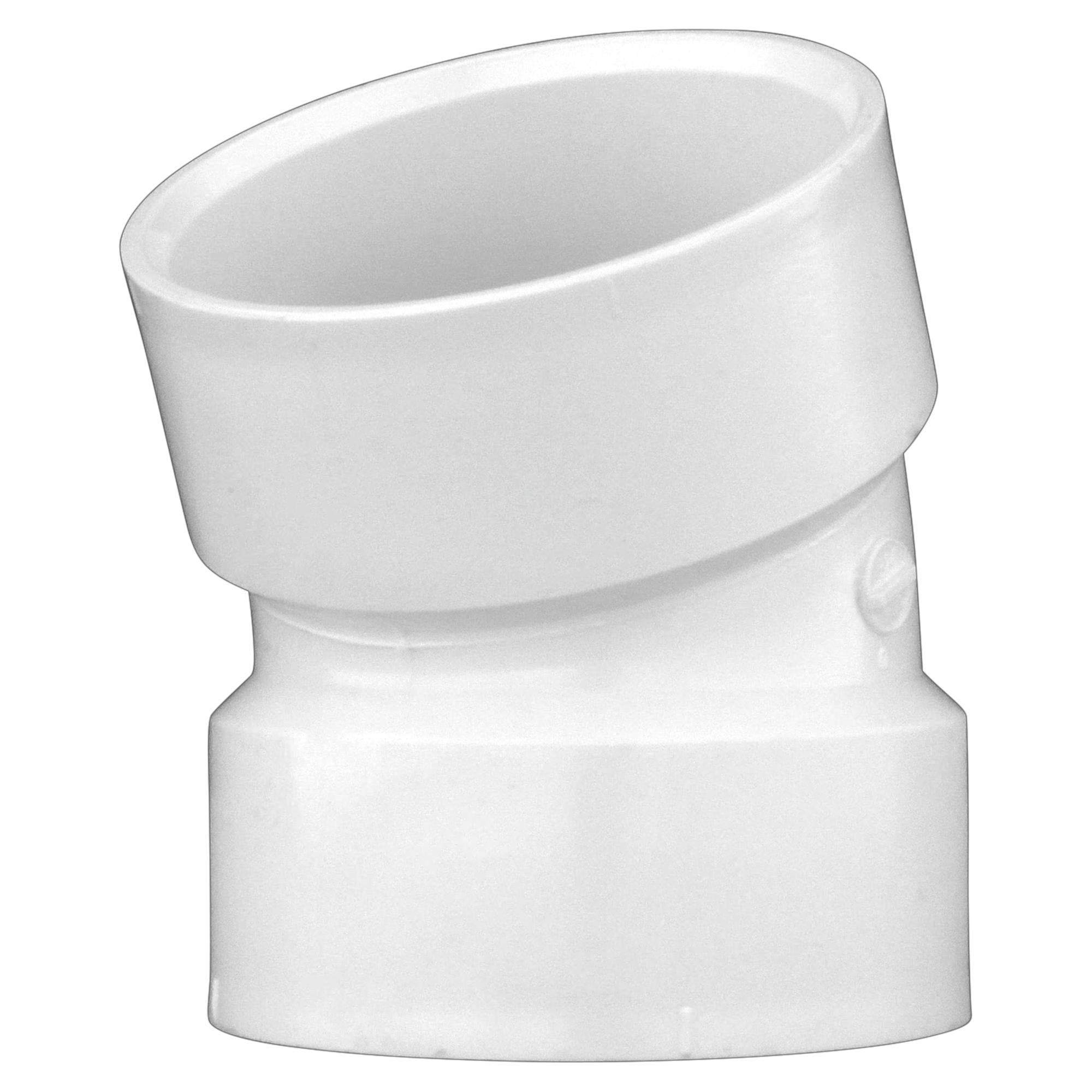

Charlotte Pipe PVC-324-3IN Pvc Dwv 3 Inch 1/16 Bend Fitting

Product Description

The CHARLOTTE PIPE PVC-324-3IN is a 3-inch PVC DWV 1/16 bend fitting with hub x hub connections, also known as a 22-degree elbow. It is designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. The fitting is rated for systems where temperatures will not exceed 140 degrees F. Solvent cement joining is the standard installation method, though the fitting also supports threading, flanging, and roll-grooved joining. Plumbers and pipefitters install this type of fitting in residential and commercial DWV systems where a gradual 22-degree directional change is required in the drain line.

This fitting is used in gravity-fed drain, waste, and vent systems in residential and light commercial construction. Typical applications include horizontal drain runs and vertical stack offsets where a shallow-angle bend is needed to maintain proper slope and flow. The hub x hub socket ends accept standard 3-inch PVC DWV pipe with solvent cement. Because this is a non-pressure fitting, it is not suitable for pressurized water supply lines. Manufactured in the USA by Charlotte Pipe, it meets standard requirements for PVC DWV fittings used in new construction and remodel plumbing work.

Key Features

• 22-degree (1/16 bend) directional change for shallow-angle drain line routing
• Hub x hub socket ends for solvent cement joining to standard 3-inch PVC DWV pipe
• Rated for non-pressure DWV service up to 140 degrees F
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3-inch PVC DWV piping systems in non-pressure drain, waste, and vent applications.

Installation Notes

This fitting is installed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water flow and ensure the line is dry before cutting and joining. Clean and prime pipe ends before applying solvent cement, and allow adequate cure time before returning the system to service. Do not use this fitting in pressurized supply lines or in systems where operating temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 3 inches
• Bend Angle: 22 degrees (1/16 bend)
• End Connection: Hub x Hub
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) non-pressure
• Max Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942034185

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-324-3IN
