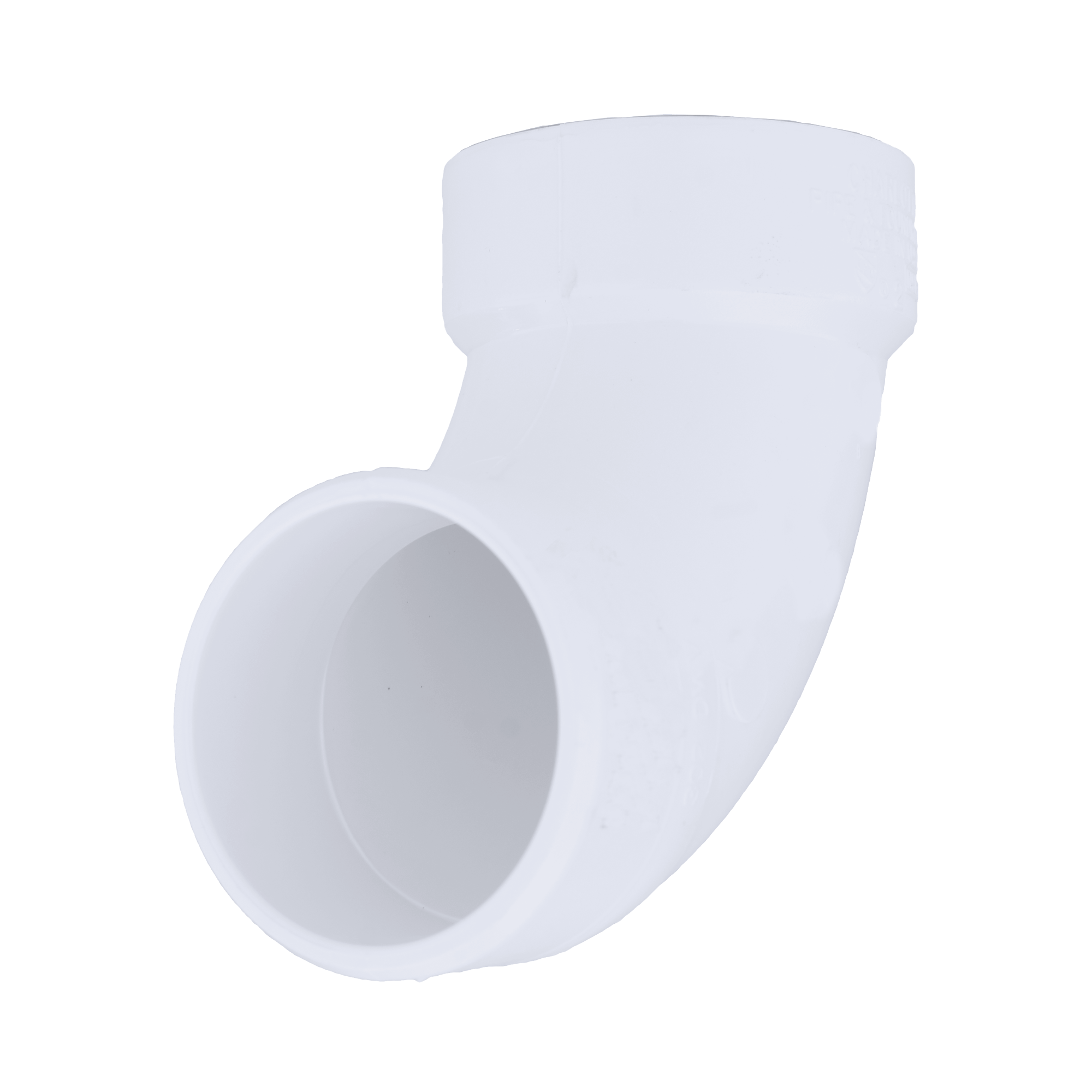

Charlotte Pipe PVC-302-2IN 2 in Pvc Dwv 90 Street Elbow

Product Description

The CHARLOTTE PIPE PVC-302-2IN is a 2-inch PVC DWV 90-degree street elbow designed for drain, waste, and vent piping systems. Street fittings have one male spigot end and one female socket end, allowing direct insertion into another fitting without an additional coupling. This fitting is rated for non-pressure, gravity-fed waste elimination systems only and is suitable for use in applications where temperatures will not exceed 140 degrees F. Lightweight PVC construction makes handling and installation straightforward, and no specialized cutting tools are required. This fitting is installed using solvent cement joining and is a standard component used by licensed plumbers in residential and light commercial DWV rough-in work.

This street elbow is used wherever a 90-degree change of direction is needed in a gravity-fed DWV piping system. Typical applications include drain line offsets, closet flange connections, and vent stack routing in residential and commercial construction. Because it accepts a spigot end directly, it reduces the number of fittings needed in tight spaces. It is not intended for pressure service, potable water supply lines, or applications exceeding the rated temperature. Installation is performed by licensed plumbers following IPC or local adopted plumbing code requirements.

Key Features

• 2-inch nominal size fits standard 2-inch PVC DWV pipe and fittings
• Street configuration with one male spigot end and one female socket end for direct fitting-to-fitting connection
• 90-degree sweep for gravity-drain direction changes in DWV systems
• Solvent cement joining — no special cutting or threading tools required
• Rated for non-pressure, gravity-fed systems up to 140 degrees F
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-inch PVC DWV piping systems used in non-pressure drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the applicable IPC or locally adopted plumbing code. Shut off water supply and ensure the drain line is cleared before beginning work. Clean and dry all mating surfaces, then apply an approved PVC primer and solvent cement per the cement manufacturer's instructions before joining. This fitting is not rated for pressurized systems or potable water supply use.

Technical Specifications

• Nominal Size: 2 inches
• Fitting Type: 90-Degree Street Elbow
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Maximum Temperature Rating: 140 degrees F
• Connection Method: Solvent Cement
• UPC: 611942033713
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-302-2IN
