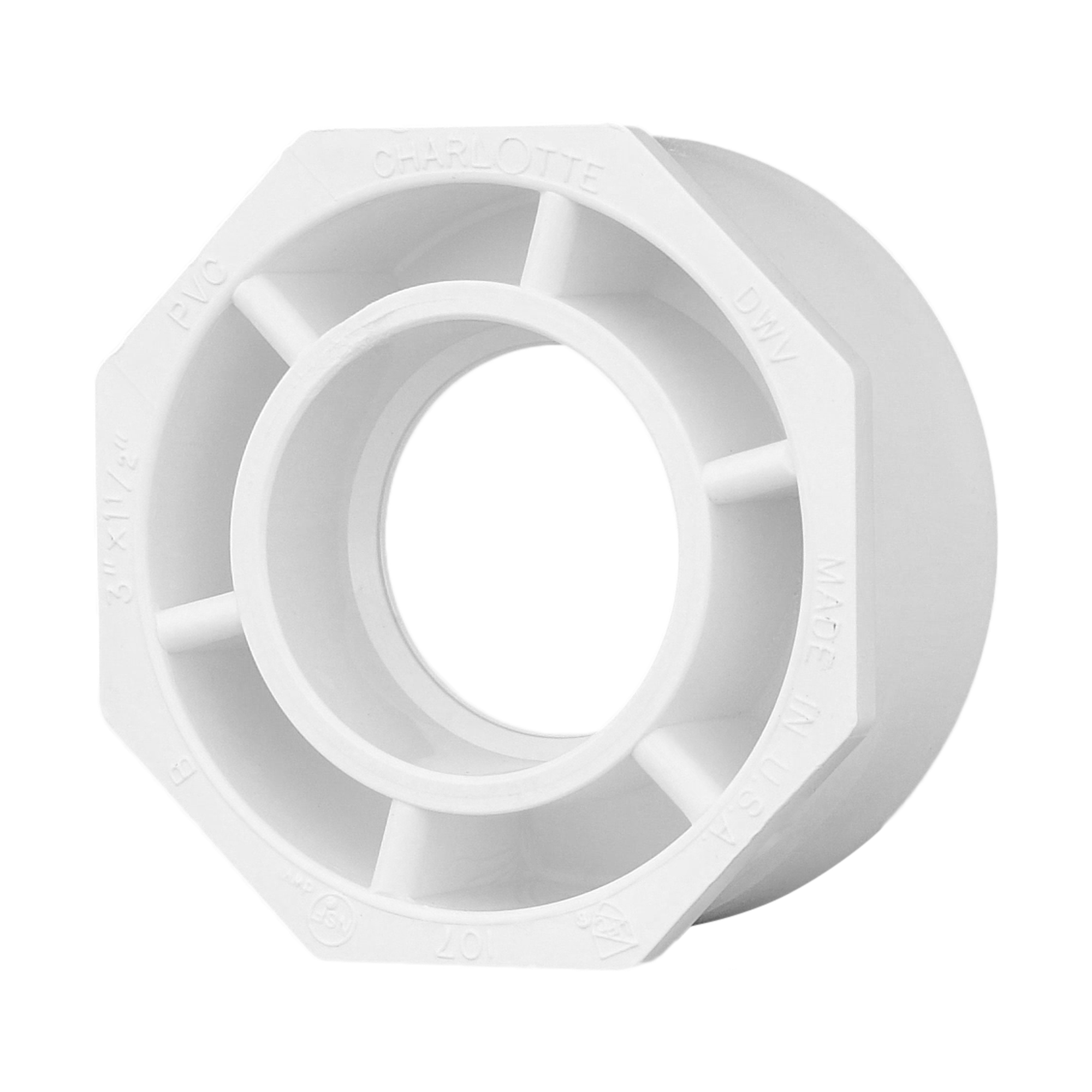

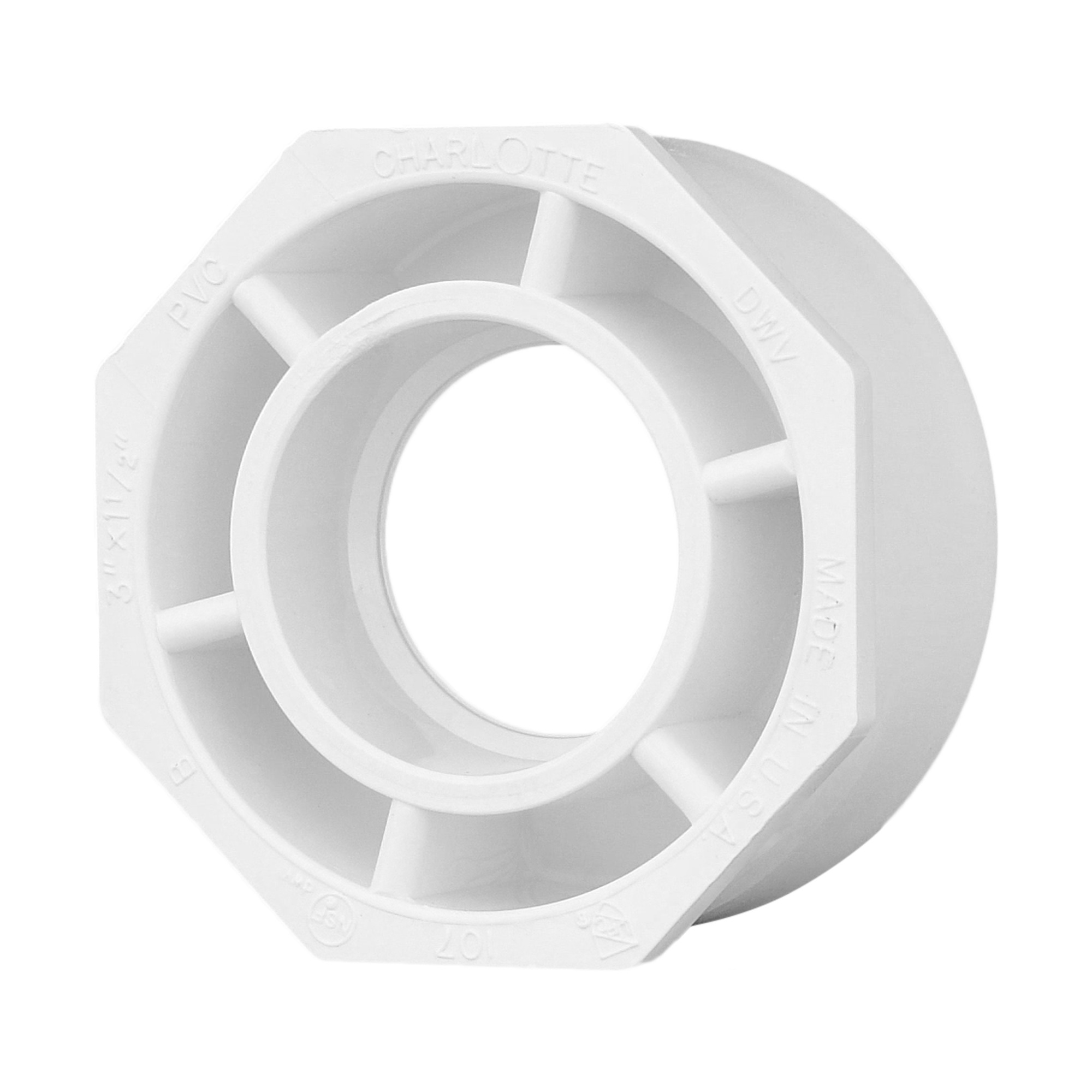

Charlotte Pipe PVC-107-3X1-1/2 Pvc Dwv Flush Bushing

Product Description

The CHARLOTTE PIPE PVC-107-3X1-1/2 is a PVC DWV flush bushing used in drain, waste, and vent piping systems. It transitions a 3-inch hub down to a 1-1/2-inch spigot connection in gravity-fed, non-pressure waste elimination systems. Rated for service up to 140 degrees F, this fitting is well-suited for residential and light commercial DWV applications. PVC construction keeps weight low and simplifies handling on the job. Installation requires no special cutting tools and is completed using solvent cement joining. Licensed plumbers and pipefitters are the primary installers of this fitting type.

This flush bushing is used wherever a pipe run must step down from a 3-inch line to a 1-1/2-inch line within a DWV assembly. Common scenarios include branch connections at lavatory drains, laundry standpipes, and similar fixture tie-ins where a concentric, flush-style reduction is needed rather than a standard hex bushing. It is intended for non-pressure, gravity-flow systems only and is not rated for pressurized water supply service. Manufactured in the USA by Charlotte Pipe.

Key Features

• Flush bushing profile provides a low-profile, inline reduction from 3 inches to 1-1/2 inches
• Spigot-by-hub (SPGXHUB) end configuration for standard solvent-cement assembly
• Rated for non-pressure DWV service up to 140 degrees F
• Lightweight PVC construction simplifies handling and installation
• No special cutting tools required for field installation
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and commercial PVC DWV piping systems operating under gravity-flow, non-pressure conditions.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and verify the system is fully depressurized and drained before cutting into an existing line. Clean and dry all mating surfaces before applying PVC solvent cement; follow cement manufacturer's open-time and cure-time requirements before restoring flow. This fitting is not approved for pressurized supply piping.

Technical Specifications

• Material: PVC
• Fitting Type: Flush Bushing
• End Connection: Spigot x Hub (SPGXHUB)
• Inlet Size: 3 inches
• Outlet Size: 1-1/2 inches
• System Type: DWV (Drain, Waste, Vent) — non-pressure only
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942032648

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-107-3X1-1/2
