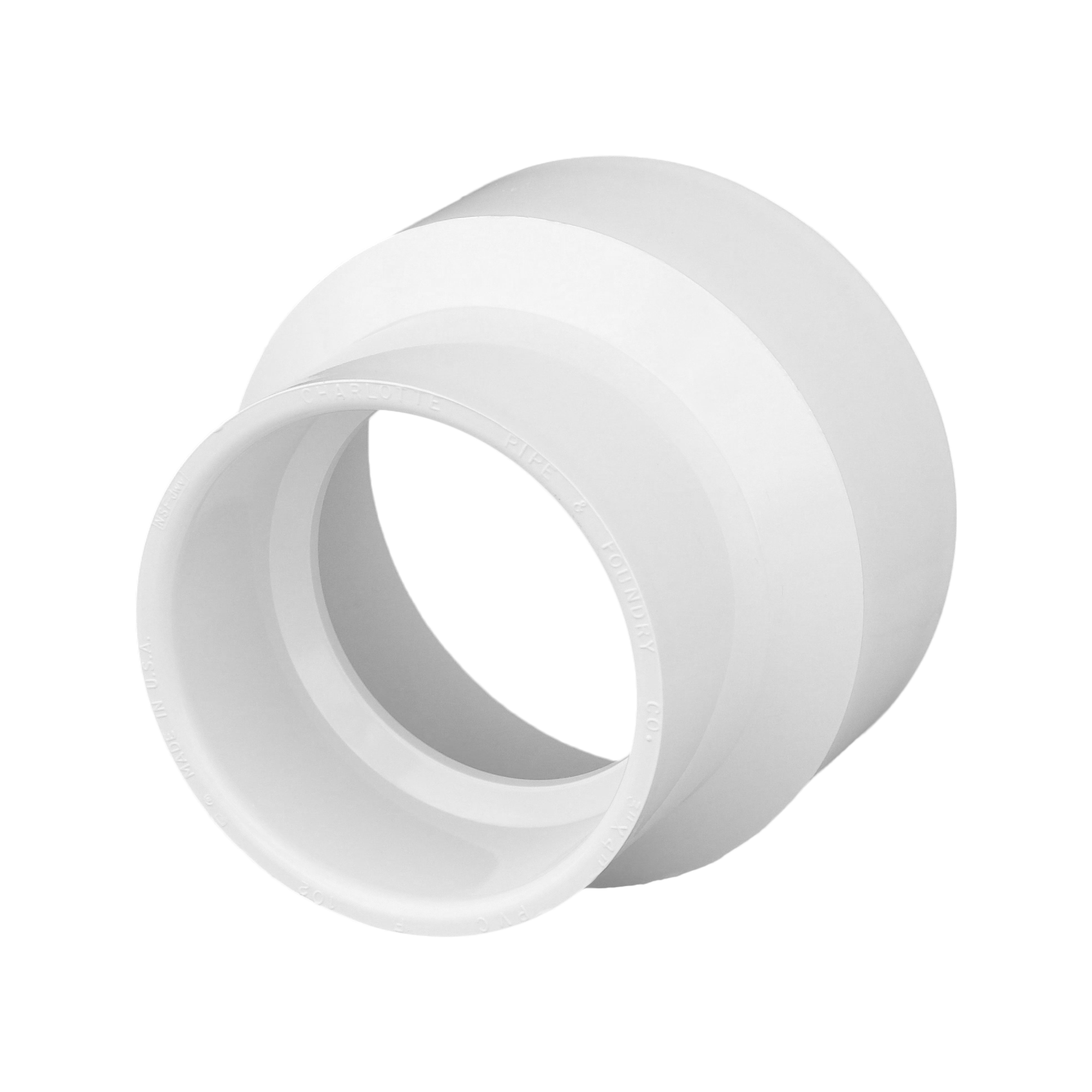

Charlotte Pipe PVC-102-3X4 Pvc Dwv Increaser Reducer 3x4

Product Description

The CHARLOTTE PIPE PVC-102-3X4 is a PVC DWV increaser reducer coupling designed for drain, waste, and vent piping systems. This fitting transitions between 3-inch and 4-inch pipe diameters in gravity-fed, non-pressure drainage applications. Rated for use in systems where temperatures do not exceed 140 degrees F, the fitting is lightweight and accepts standard solvent cement joining. Plumbers and pipefitters install this type of coupling when connecting different pipe sizes within a DWV stack or branch line. No special cutting tools are required, and the fitting is also compatible with threading, flanging, and roll-grooved joining methods.

This increaser reducer is suited for residential and light commercial drain, waste, and vent installations where a diameter change is needed between a 3-inch branch and a 4-inch main line or stack. Typical applications include connecting lavatory or sink drains into larger soil stacks, or upsizing a vent run where code requires a larger diameter. Manufactured in the USA by Charlotte Pipe, it meets the expectations of licensed plumbers working to IPC and UPC code requirements.

Key Features

• Transitions between 3-inch and 4-inch PVC DWV pipe in a single fitting
• Rated for non-pressure gravity-fed drain, waste, and vent systems only
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and commercial PVC DWV piping systems using 3-inch and 4-inch schedule-rated pipe.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable IPC or UPC code requirements. Power down or isolate any pressure-assisted drain systems before cutting into an existing line. When solvent cementing, follow the cement and primer manufacturer's cure time guidelines before returning the system to service. Do not use this fitting in pressurized water supply lines or in applications where service temperatures exceed 140 degrees F.

Technical Specifications

• Material: PVC
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Inlet Size: 4 inches
• Outlet Size: 3 inches
• Maximum Temperature: 140 degrees F
• Joining Methods: Solvent Cement, Threaded, Flanged, Roll-Grooved
• Country of Origin: USA
• UPC: 611942032075

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-102-3X4
