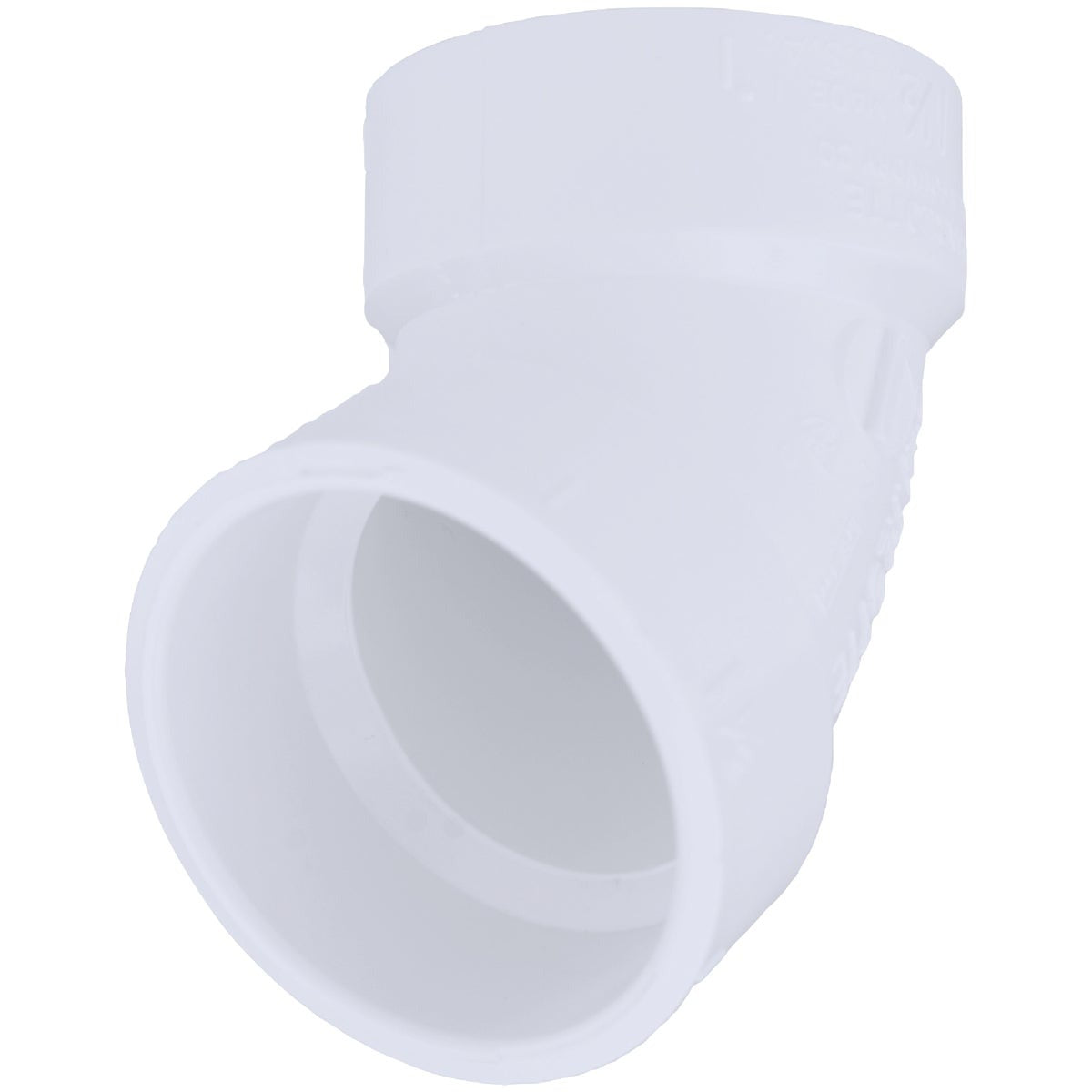

Charlotte Pipe Pvc 00319 0600HA 1-1/2 in 60 Deg Dwv Elbow

Product Description

The CHARLOTTE PIPE PVC 00319 0600HA is a 1-1/2 inch, 60-degree elbow fitting manufactured to PVC Schedule 40 DWV standards. Also referred to as a one-sixth bend, this fitting changes drain flow direction by 60 degrees within a drain, waste, and vent system. Both ends feature a hub (socket) connection, accepting solvent-welded joints to standard Schedule 40 DWV pipe. It is rated for non-pressure drain and vent applications and is installed by licensed plumbers during rough-in and finish plumbing work on residential and light commercial projects.

This elbow is used in PVC DWV piping systems where a 60-degree change of direction is required along a drain or vent run. Typical applications include connecting branch drains to stacks, routing drain lines around obstructions, and building vented drain assemblies. The hub-by-hub configuration accommodates inline installation between two pipe sections and is compatible with standard 1-1/2 inch Schedule 40 DWV PVC pipe and fittings.

Key Features

• 60-degree sweep angle (one-sixth bend) for moderate directional change in drain and vent runs
• Hub x hub (socket x socket) ends accept standard solvent-weld joints
• Schedule 40 PVC construction meets ASTM DWV standards for drain, waste, and vent service
• 1-1/2 inch nominal size fits standard residential drain line diameters
• Non-pressure DWV rating suitable for gravity drain and vent applications

Compatibility

Designed as an OEM-style replacement and new-installation fitting compatible with 1-1/2 inch Schedule 40 PVC DWV pipe and fittings in residential and light commercial drain, waste, and vent systems.

Installation Notes

Installation is performed by licensed plumbers following applicable IPC or local plumbing code requirements. Shut off water supply and ensure the drain line is clear before cutting into an existing system. Clean and dry all mating surfaces before applying PVC solvent cement; follow the cement manufacturer's cure time before restoring flow. Support piping per code-specified hanger intervals to prevent sag and maintain proper drain slope.
