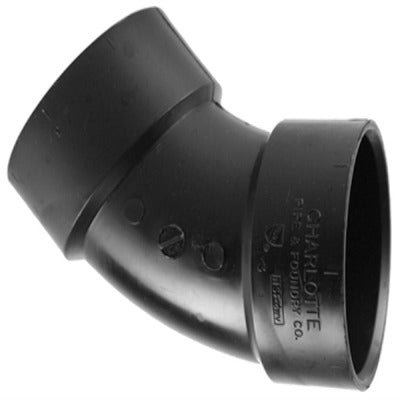

Charlotte Pipe Abs 00321 0800HA 2in 45-deg Hub Elbow Dwv

Product Description

The Charlotte Pipe Foundry ABS 00321 0800HA is a 2-inch ABS DWV 45-degree hub x hub elbow designed for non-pressure drain, waste, and vent piping systems. Made from black ABS material, this fitting redirects flow at a 45-degree angle between two hub-end pipe connections. It is a standard component in residential and light commercial DWV rough-in work, installed by licensed plumbers during new construction or retrofit drain line layouts. The hub x hub configuration accepts standard ABS pipe on both ends, secured with solvent cement per manufacturer and code requirements.

This elbow is suited for non-pressure DWV applications in residential and commercial buildings where a 45-degree directional change is needed in a drain, waste, or vent run. Common install scenarios include under-slab horizontal runs, in-wall vertical vent stacks, and horizontal branch lines connecting fixtures to the main drain stack. It is not rated for pressure service or potable water supply lines.

Key Features

• 45-degree sweep angle for controlled directional change in DWV runs
• Hub x hub end connections accept standard 2-inch ABS pipe with solvent cement
• Black ABS material rated for non-pressure drain, waste, and vent service
• Sold in a package quantity of 50 units, suitable for stocking or multi-unit projects
• Low chemical resistance rating — verify fluid compatibility before install in specialty drain applications

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 2-inch ABS DWV piping systems in non-pressure drain, waste, and vent installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local amendments. Shut off water supply and ensure the drain line is clear before cutting into an existing system. Joints must be made with approved ABS solvent cement applied to both the pipe end and the hub socket; do not use PVC cement on ABS fittings. Allow full cure time before pressure-testing or returning the system to service.
