Charlotte Pipe Abs 00307 0800HA Abs Dwv 90 Deg Long Sweep Elbow

Product Description

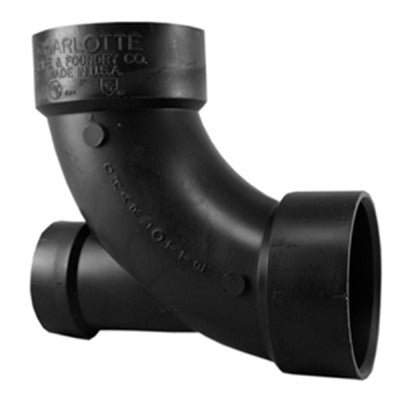

The CHARLOTTE PIPE FOUNDRY CO. ABS 00307 0800HA is a 3-inch x 3-inch x 2-inch ABS DWV long sweep 90-degree elbow with a low heel inlet. It features a hub x hub x hub connection configuration. This fitting is manufactured from black ABS material and is designed for non-pressure drain, waste, and vent (DWV) piping systems. It allows a plumber to make a 90-degree directional change in the main line while simultaneously introducing a 2-inch branch connection at the low heel inlet. The long sweep radius reduces flow restriction compared to a standard short-turn elbow, which is important in gravity-drain applications.

This elbow is used in residential and light commercial DWV systems where a drain line must change direction and pick up an additional branch at the same fitting. Typical applications include bathroom drain rough-ins, stack configurations, and horizontal-to-vertical transitions that require a side inlet for a secondary fixture. The low heel inlet is well-suited for connecting smaller-diameter branch lines to a larger main drain run. Installation is performed by licensed plumbers following applicable plumbing codes such as the IPC or UPC.

Key Features

• 90-degree long sweep turn reduces flow turbulence in gravity-drain applications
• Integrated low heel inlet accepts a 2-inch branch connection in a single fitting
• Hub x hub x hub end connections for solvent-cement joining
• Black ABS material suited for DWV service
• Non-pressure rated — for drain, waste, and vent use only
• Package quantity of 25 units per case

Compatibility

Designed as an OEM-style fitting for ABS DWV piping systems in non-pressure drain, waste, and vent installations. Compatible with standard 3-inch and 2-inch ABS DWV pipe and fittings joined with ABS solvent cement.

Installation Notes

Installation is performed by a licensed plumber in accordance with the applicable plumbing code (IPC, UPC, or local jurisdiction). Shut off and drain the affected section of the DWV system before cutting into existing pipe. Clean and deburr all pipe ends, apply ABS primer if required by local code, and use ABS solvent cement rated for DWV fittings. This fitting is not rated for pressure applications — do not use on supply or pressurized lines.
