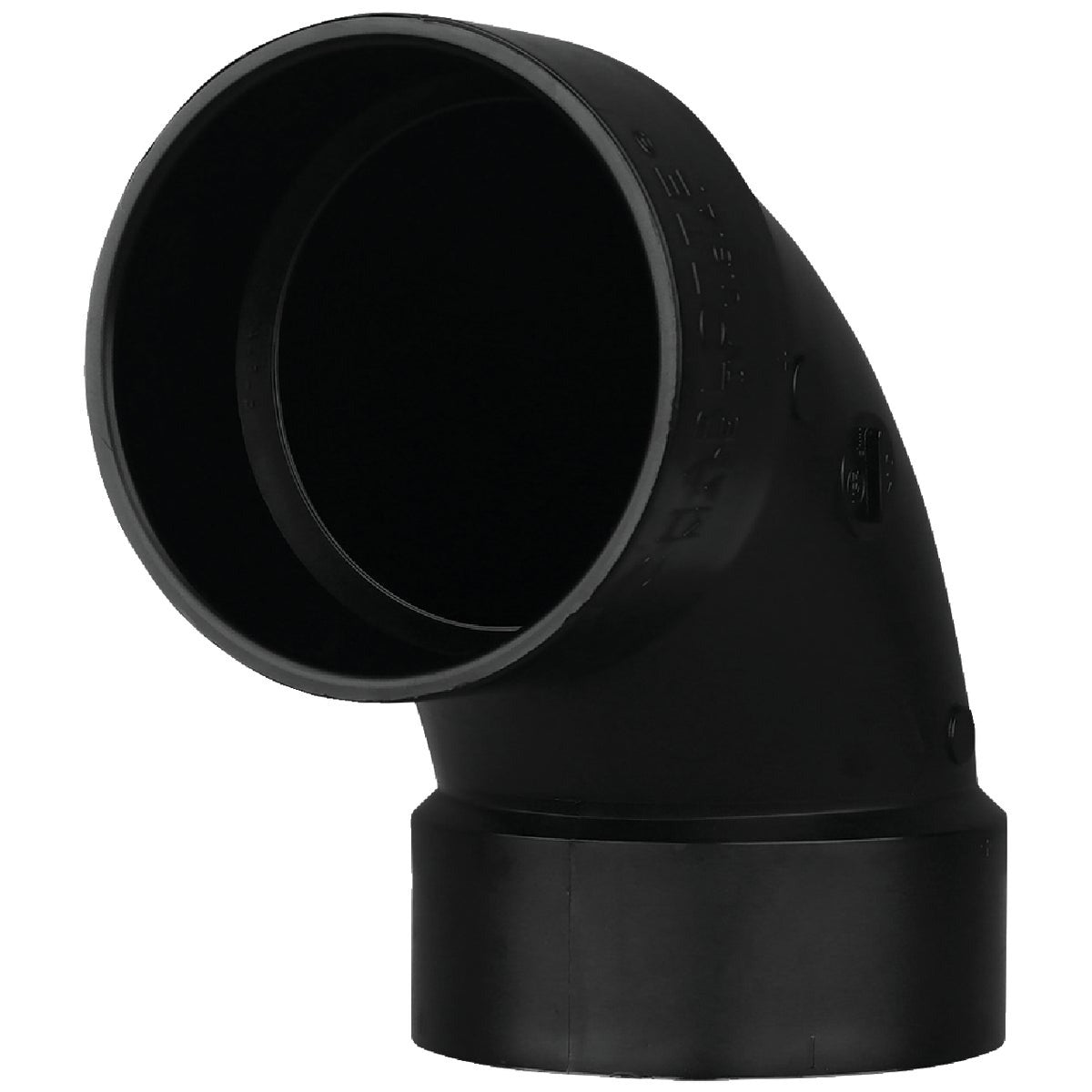

Charlotte Pipe Abs 00300 0600HA 1-1/2 in Abs Dwv 90 Elbow

Product Description

The CHARLOTTE PIPE ABS 00300 0600HA is a 1-1/2 inch ABS Schedule 40 DWV 90-degree elbow, also known as a quarter bend, designed to change flow direction in drain-waste-vent piping systems. The hub-by-hub end configuration accepts pipe into both ends for a solvent-welded joint. Weighing 0.2 pounds, this fitting is lightweight and easy to handle in tight spaces. It is manufactured from ABS (acrylonitrile butadiene styrene) thermoplastic, which resists impact and the corrosive effects typical in residential and light commercial drain lines.

This elbow is used in residential and light commercial DWV applications where a 90-degree direction change is required in a drain, waste, or vent run. Typical installation scenarios include bathroom drain rough-in, laundry drain connections, and vent stack offsets. Plumbers working on new construction or remodel projects will find this fitting standard for Schedule 40 ABS DWV systems. It meets the dimensional requirements of hub-to-hub solvent-welded connections and is sold individually.

Key Features

• 90-degree quarter bend geometry for direction changes in DWV piping
• Hub x Hub end connections for solvent-welded joints on both ends
• ABS Schedule 40 construction rated for drain-waste-vent service
• 1-1/2 inch pipe size fits standard residential DWV rough-in
• Lightweight at 0.2 pounds for easy one-hand handling during install

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch ABS Schedule 40 DWV piping systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) or applicable local plumbing codes. Before cutting into an existing drain line, isolate and drain the affected section. Clean pipe ends and hub sockets, apply ABS solvent cement per manufacturer instructions, and allow adequate cure time before restoring flow. Do not use PVC solvent cement on ABS fittings.
