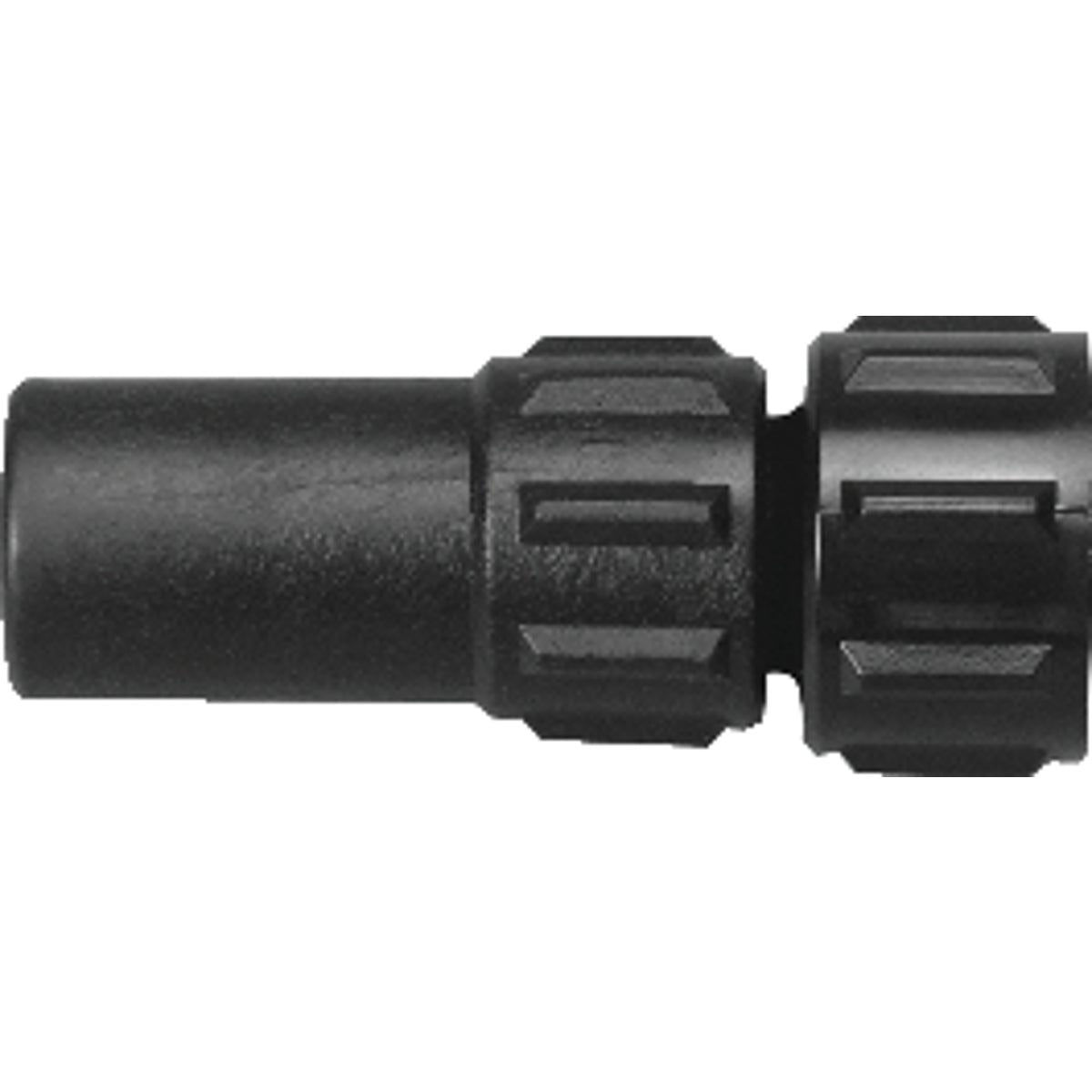

Chapin 6-6003 Adjustable Poly Cone Nozzle

Product Description

The CHAPIN 6-6003 is a two-piece adjustable poly cone nozzle designed for use with sprayer wands in lawn, garden, and pest control applications. The nozzle adjusts from a straight stream to a full funnel or cone spray pattern, giving the user control over coverage width and spray intensity without changing tips. Built from polyethylene construction, it handles a range of liquid chemicals and fertilizers typical in professional spray applications. Licensed pest control applicators, landscapers, and irrigation techs commonly install and service this type of nozzle tip as part of routine sprayer maintenance.

This nozzle is suited for residential and light commercial spray operations where a single adjustable tip replaces the need for multiple fixed-pattern nozzles. It fits sprayer wands with a half-inch connection, making it a straightforward drop-in replacement during field servicing. Its compact two-piece design simplifies cleaning and reassembly between jobs.

Key Features

• Adjustable spray pattern from straight stream to full cone coverage
• Two-piece construction for easy field cleaning and reassembly
• Poly material compatible with common liquid fertilizers and pest control chemicals
• Fits most half-inch Chapin wands for direct replacement
• Lightweight at 0.045 pounds for minimal wand fatigue during extended use

Compatibility

Fits most half-inch Chapin wands. Verify wand connection size before installation.

Installation Notes

Installation requires no tools — hand-thread the nozzle onto a compatible half-inch wand connection. Before servicing or replacing the nozzle, fully depressurize the sprayer tank and release any residual pressure through the pump. Rinse the wand and nozzle assembly with clean water before disassembly to reduce chemical exposure. Follow all applicable local regulations and label requirements for chemical handling when servicing spray equipment.

Technical Specifications

• Spray Pattern: Adjustable straight stream to cone
• Connection Size: 0.5 inches
• Construction: Two-piece poly
• Weight: 0.045 pounds
• Sold As: Each

Standard Information

• Brand: CHAPIN
• Manufacturer Part Number: 6-6003
