Chance C710143PX 110KV 200A Std Cutout

Brand: CHANCE
SKU: C710143PX
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12 pm

Earn [points_amount] when you buy this item.
$314.29
$314.29
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

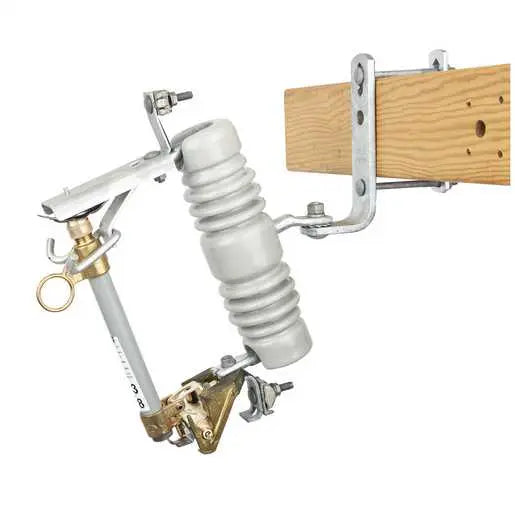

The Chance C710143PX is a Standard Type C Porcelain Cutout with a voltage rating of fifteen kilovolts. It features a 200 amp current rating ensuring reliable performance in utility applications.

  • Voltage Rating: Fifteen kilovolts
  • Current Rating: Two hundred amps
  • Insulation Level: 110 kV BIL

Product Highlights

This cutout is designed for utility professionals looking for durable and effective protection for electrical systems. It is compliant with industry standards ensuring reliability in utility operations.

Product Information

Standard Information

  • Manufacturer: Chance
  • Product Type: Standard Cutout Porcelain

Technical Specifications

  • Current Rating: 200 A
  • Voltage Rating: 15 kV
  • BIL Rating: 110 kV
  • Creep and Leakage Distance: 8.7 inches
  • Weight: 10.41 lbs
  • Fuse Link Current Range: 140 A to 200 A
  • Pallet Quantity: 72
  • WES Product Code: 2917080483
