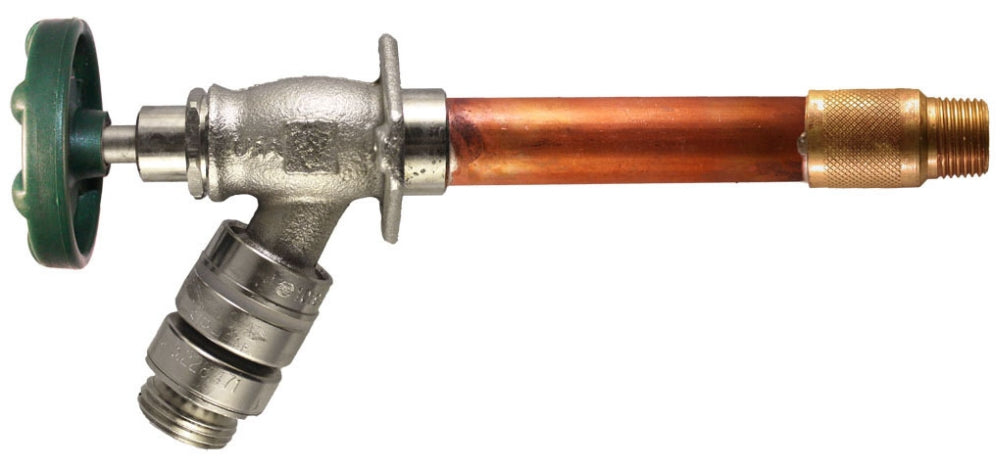

Champion-Arrowhead 486-12LF Wall Hydrant

Product Description

The Champion-Arrowhead 486-12LF is a wall hydrant designed for various plumbing applications. It features a nominal size of one half by three fourth inches and is suitable for installations requiring male threaded or soldered connections. The hydrant includes an oval wheel handle for easy operation.

• Frostproof and heavy-duty design
• Self-draining feature to prevent freeze damage
• Lead-free construction for safety compliance

Product Highlights

This product is ideal for outdoor installations where freezing temperatures may occur. It is designed to prevent backflow and includes anti-siphon protection for added safety.

Product Information

Standard Information

• Manufacturer: Champion-Arrowhead
• SKU: 486-12LF

Technical Specifications

• Nominal Size: 1/2 Inch x 3/4 Inch
• Body Material: Bronze Alloy
• Pressure Rating: 125 PSI
• Temperature Rating: 140 Degrees F
• Flow Rate: 10 GPM at 50 PSI
• Rough-In: 12 Inches
• Applicable Standard: ASSE, UPC, IAPMO, NSF/ANSI 372
• Inclusions/Features: Vacuum breaker, O-ring bonnet and stem
• Self-Draining: Yes
• Anti-Siphon Protected: Yes
• Backflow Protected: Yes
