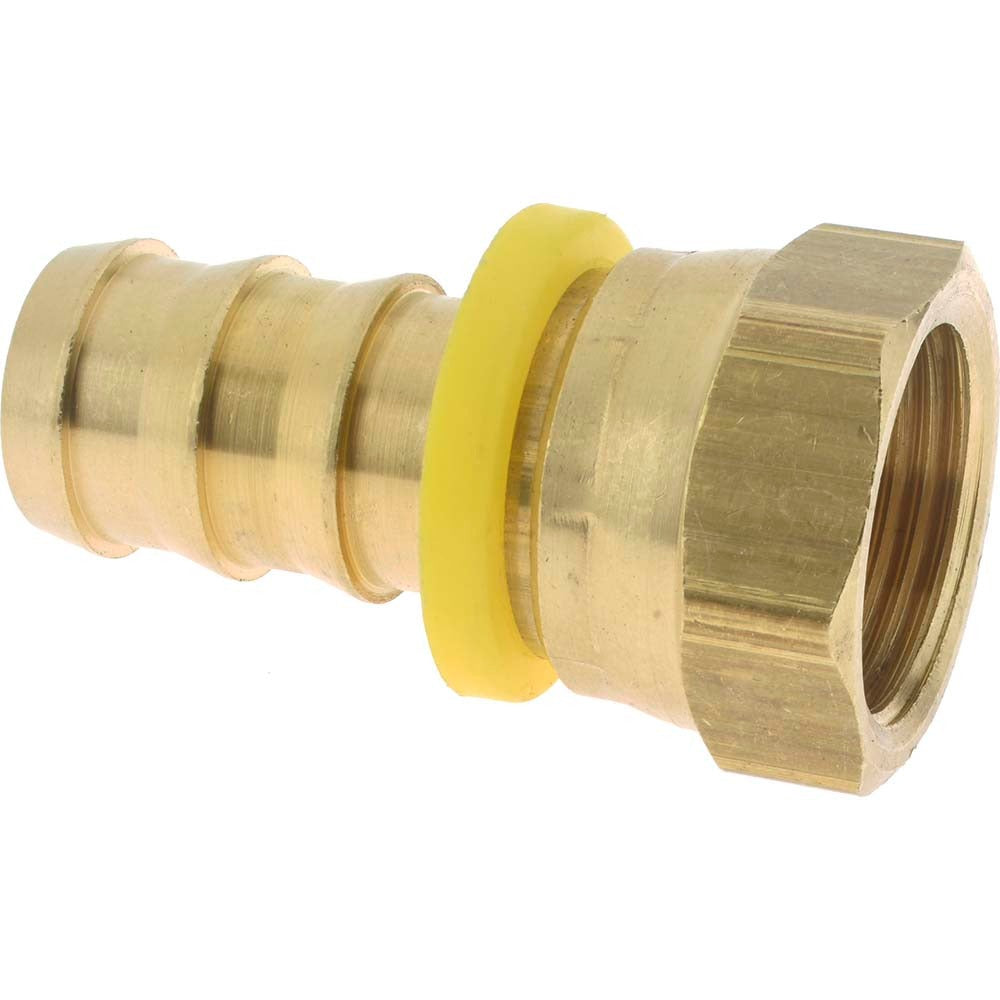

Cerrobrass 308-1212 Barbed Hose Connector 3/4 in Brass

Product Description

The CERROBRASS 308-1212 is a barbed push-on hose female connector designed for secure, leak-resistant hose attachment in fluid transfer and hydraulic applications. Constructed from solid brass, the fitting features a 3/4-inch barb for push-on hose connection and a 1-1/16-inch UNF threaded female end for connection to a mating male port. The brass construction provides corrosion resistance and durability across a wide temperature range, from -40 degrees F to 212 degrees F, with a maximum working pressure of 300 psi. This fitting is commonly installed by plumbers, HVAC technicians, and industrial maintenance personnel where a reliable barb-to-thread transition is required.

This connector is suited for residential and light commercial fluid systems where a 3/4-inch outside diameter hose must terminate at a UNF-threaded port. Typical applications include hydraulic lines, coolant circuits, water transfer systems, and similar low-to-medium pressure plumbing configurations. The push-on barb design allows fast hose assembly with a standard hose clamp for retention, making it a practical choice in tight installation spaces or high-volume service environments.

Key Features

• 3/4-inch barb accepts standard push-on hose for fast, tool-minimal assembly
• 1-1/16-inch UNF female threaded end for secure port connection
• Solid brass construction resists corrosion in water and hydraulic fluid service
• Rated to 300 psi maximum working pressure
• Wide operating temperature range: -40 degrees F to 212 degrees F
• Compact, single-piece design with no additional components required

Compatibility

Designed as an OEM-style replacement or new-install fitting for systems using 3/4-inch push-on hose with a 1-1/16-inch UNF female threaded port connection.

Installation Notes

Installation should be performed by a qualified plumber or mechanical technician familiar with threaded brass fittings. Depressurize and drain the system completely before removing or installing any fittings. Apply thread sealant appropriate for the fluid media to the UNF male port before threading the connector, and secure the hose over the barb with an appropriately rated hose clamp. Do not exceed the rated working pressure or temperature limits for this fitting.
