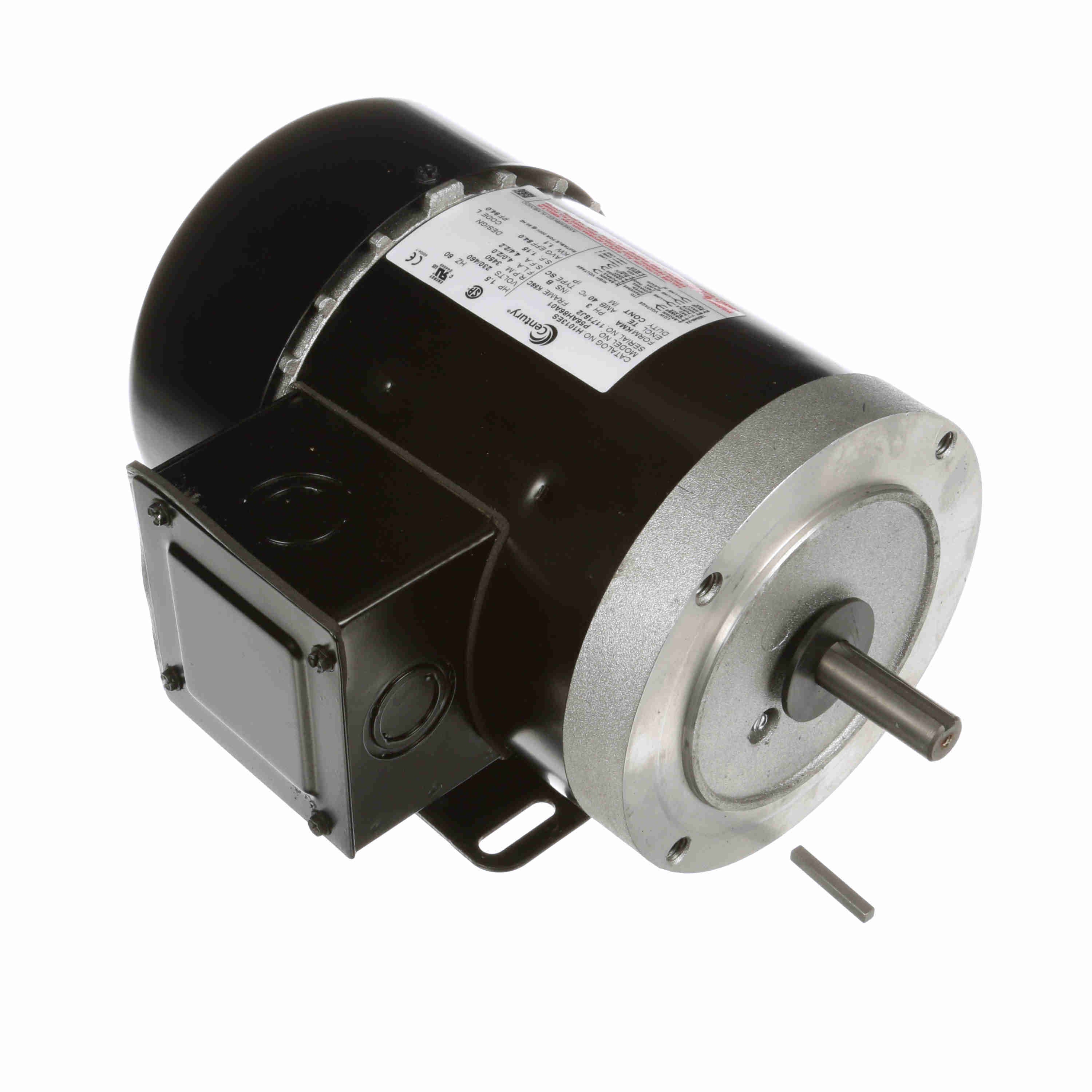

Century UH1013ES General Purpose Motor 1.5 HP 230/460V 3-Phase

Product Description

The Century UH1013ES is a general purpose motor designed for various industrial applications. This motor features polyphase induction type technology with a horsepower of one and a half and operates on dual voltage of 230 or 460 volts. It has a rigid base for easy mounting and a totally enclosed fan-cooled design which helps with efficient thermal management.

• Suitable for continuous duty usage.
• UL and CSA certified for safety and reliability.
• Permanently lubricated bearings for extended lifespan.

Product Highlights

The Century UH1013ES motor is ideal for applications requiring a dependable and efficient power source. Its continuous duty design allows for maximum output in demanding environments.

Product Information

Standard Information

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• Power: 1.5 HP | 1.1 kW
• Phase: Three
• Amperage: 4.0/2.0
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel

Technical Specifications

• RPM: 3450
• Frame Size: K56C
• Diameter: 6.5 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.07 inches
• Weight: 32 lbs
• Insulation Class: B or F
• Duty Type: Continuous
