Century SQ1052 Square Flange Pool Motor 1/2 HP (48Y Frame)

Brand: CENTURY
SKU: SQ1052
Availability: In Stock

Ships same day if ordered by 12 pm
$406.68
$406.68
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

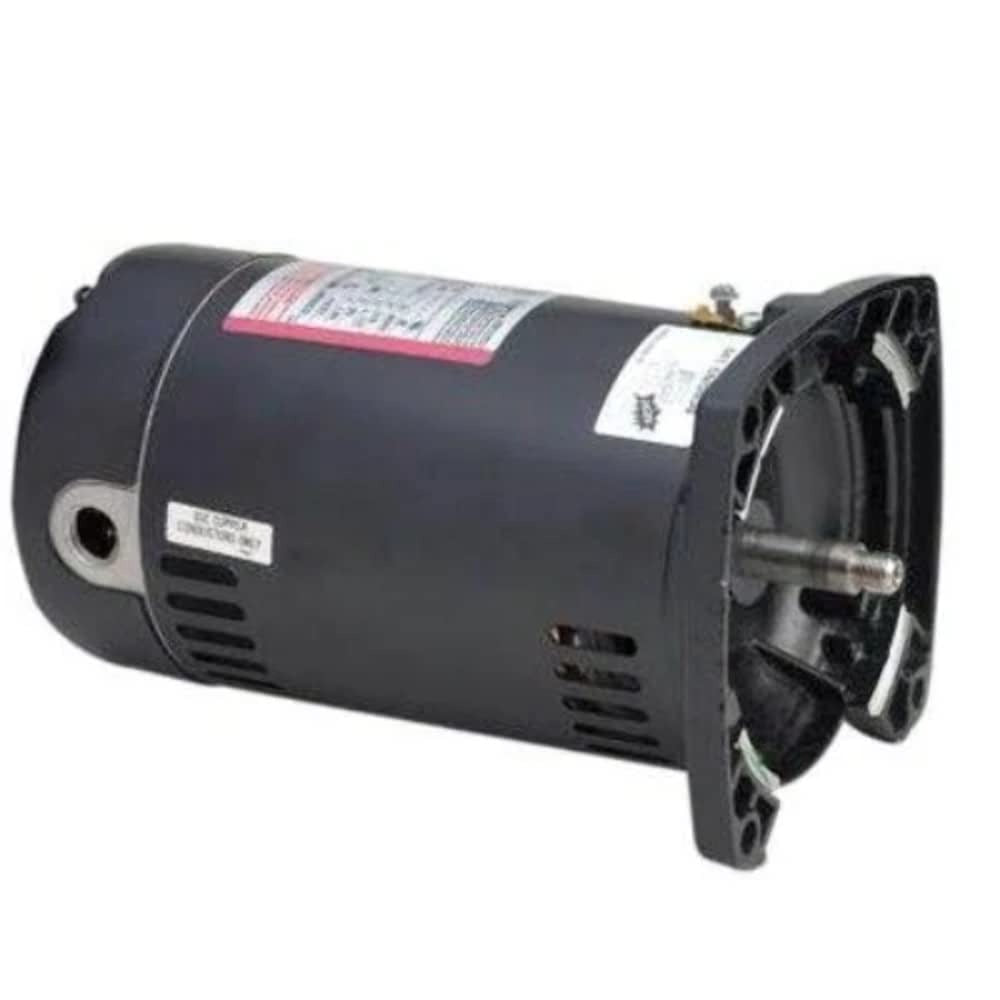

Century SQ1052 is a 1/2 hp square-flange pool motor rated at 3450 RPM and specified for 230 volts operation. The motor uses a capacitor-start design with a 1.9 service factor and an open drip-proof enclosure. Constructed of stainless steel with a 48Y frame, it is intended for pool pump and fan motor applications where a square flange mount is required.

  • 1/2 hp, 3450 RPM capacitor-start motor with 1.9 service factor
  • 48Y frame with square-flange mounting and open drip-proof (ODP) enclosure
  • Stainless steel construction; suitable for pool pump and fan motor applications

Product Highlights

Square-flange pool motor, 0.5 hp, 3450 RPM, 48Y frame, capacitor-start, ODP

Product Information

Standard Information

  • Brand: CENTURY
  • Manufacturer Part Number: SQ1052
  • Country of Origin: China
Technical Specifications
Brand
Century
MPN
SQ1052
Manufacturer
Century Electric/AO Smith Motors Co
Model
SQ1052
Horsepower
0.5 hp
Rated Speed
3450 RPM
Voltage
230 Volts (also commonly dual-voltage 115/230V)
Current (Amps)
13.4 A @ 115V / 6.7 A @ 230V
Phase
Single phase
Frequency
60 Hz
Service Factor
1.9
Frame
48Y
Start Type
Capacitor start
Enclosure
ODP (Open Drip Proof)
Mounting Type
Square flange
Rotation
CCW (pump end)
Shaft
Threaded stainless steel shaft
Bearings
Ball bearings
Material
Stainless steel
Certifications
UL and CSA
Rated Ambient Temperature
50 C
Dimensions
19 x 9 x 9 inches
National Stock Number
6105-01-512-9575
