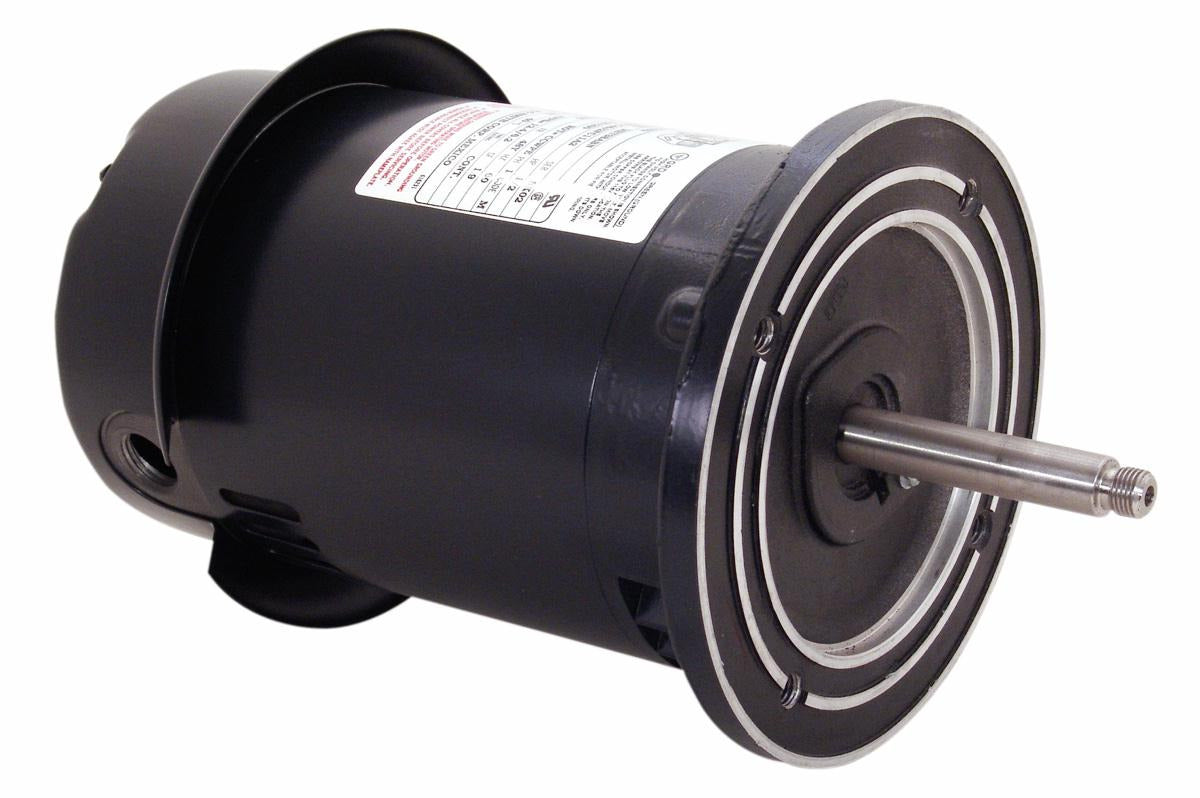

Century R1072 General Purpose Pump Motor 3/4 HP 230/115

Product Description

The Century R1072 is a general-purpose pump motor designed for various applications. This motor operates on 230/115 volts and has a power rating of three-quarter horsepower. It features a capacitor start induction run mechanism and operates at a speed of three thousand four hundred fifty RPM. The construction includes a rolled steel body and a stainless steel threaded shaft for durability.

• Automatic overload protection
• Open drip-proof enclosure
• Ball bearings for smooth operation

Product Highlights

This motor is ideal for pumps and other applications requiring reliable performance. Its design allows for effective cooling and operation in various environments.

Product Information

Standard Information

• Weight: 21 pounds
• Power: 3/4 HP

Technical Specifications

• MPN: R1072
• Voltage: 230/115 V
• Frame Size: 48Y
• Amperage: 7.4/14.8 A
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.945 inches
• RPM: 3450
• Mounting Type: Round
