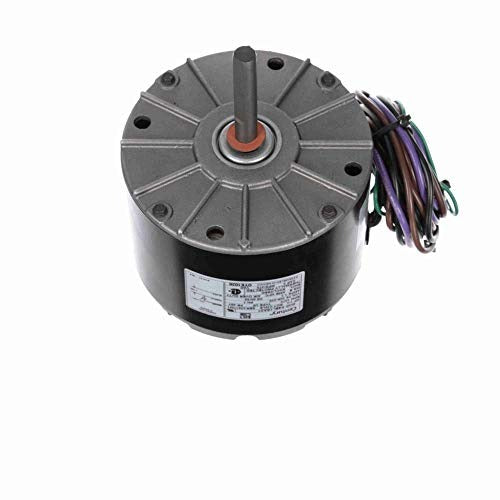

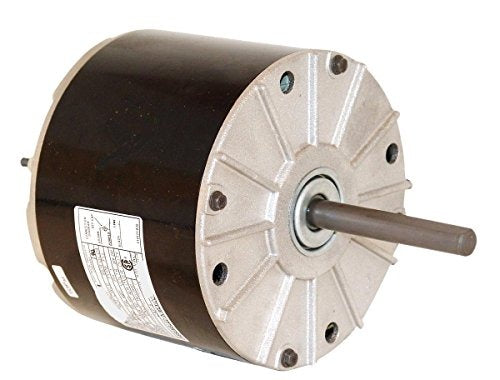

Century OYK1026 OEM Direct Replacement Motor 1/4 HP (48 Frame) f48a45a50

Brand: CENTURY
SKU: OYK1026
Availability: Out Of Stock
$205.01
$205.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Century OYK1026 is a 1/4 HP OEM replacement fan motor (OYK1026) rated 1075 RPM for HVAC and furnace blower applications. It operates on 208-230 V at about 1.3 A, uses a permanent split capacitor design and requires a 5 uF/370 V capacitor. The motor is a single-speed, CW lead end rotation, 48 frame TEAO unit with sleeve bearings and a 1/2 in x 3 in shaft.

  • Electrical: 208-230 V, 1.3 A, single phase PSC motor, 50/60 Hz, 1075 RPM, CW lead end rotation
  • Mechanical: 1/4 HP, 48 frame, sleeve bearings, 1/2 in diameter shaft with 3 in extension, motor diameter 5-5/8 in
  • Protection and mounting: Totally enclosed air over (TEAO), thermally protected, Class B insulation, extended stud mounting, vertical shaft down orientation

Product Highlights

OEM 1/4 HP 1075 RPM furnace/blower motor, 208-230 V, requires 5 uF/370 V capacitor, CW lead end rotation, 48 frame.

Product Information

Standard Information

  • Brand: CENTURY
  • Manufacturer Part Number: OYK1026
Technical Specifications
Brand
Century
Manufacturer
Century (formerly A.O. Smith)
MPN
OYK1026
Product Type
Electric motor (fan/furnace motor)
Horsepower
1/4 HP
Output kW
0.19 kW
Speed (RPM)
1075 RPM
Number of Speeds
1
Input Voltage
208-230 V
Frequency
50/60 Hz
Current
1.3 A
Electrical Type
Permanent split capacitor (PSC)
Capacitor
5 uF / 370 V (required, not supplied)
Rotation
Clockwise lead end (CWLE)
Poles
6
Starting Method
Across the line
Frame
48 (48Y)
Enclosure
Totally enclosed air over (TEAO)
Thermal Protection
Automatic (thermally protected)
Insulation Class
B
Ambient Temperature Rating
40 C
Duty
Air over
Mounting
Extended studs (lead end), vertical shaft down orientation
Shaft Diameter
0.500 in
Shaft Length
3 in
Shaft Extension
2.6 in
Shaft Type
Flat
Motor Diameter
5-5/8 in
Motor Case Length / Overall Length
Motor case length 4 in; overall length 7.30 in
Frame Length
3.99 in
Bearings
Sleeve bearings (drive end and opposite drive end)
Lead Length and Terminals
68 in leads with female spade terminals
Material
Rolled steel frame
Polarity / Orientation Notes
Vertical shaft down
UL Recognized
Yes
CSA
Yes
CE
No
Suggested Replacement References
F48A45A50, 3223, 024-23294-000, F48B45A01, Dayton 48Y383, 3S019, 5KCP39EGY933S
UPC
786674028709
GTIN / EAN
0786674028709
Package Quantity
1
Item Weight (lbs)
11.00
