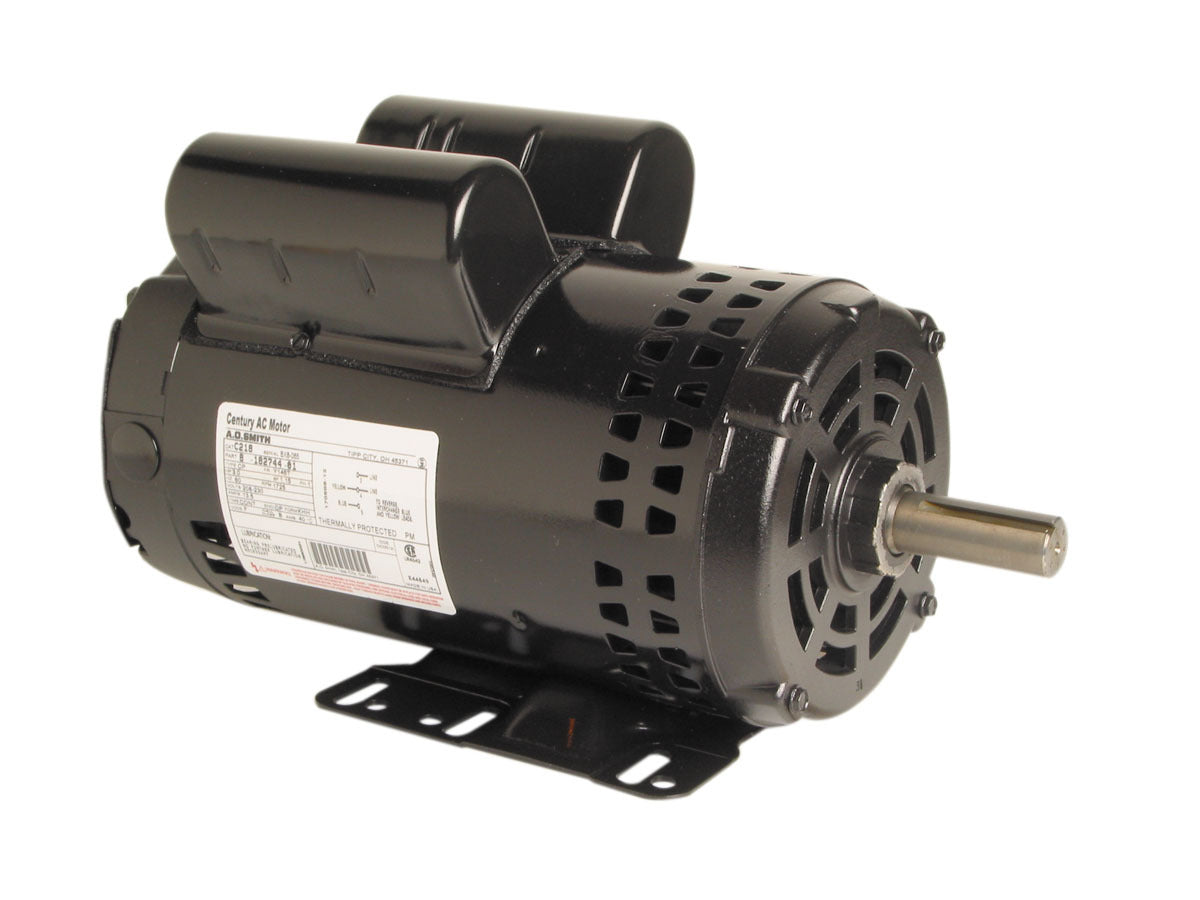

Century UV102 General Purpose Motor 2 HP 1745 RPM 208-230/115V

Product Description

The Century UV102 General Purpose Motor is built for various applications. With a power of 2 HP and an operational speed of 1745 RPM, this motor ensures reliable performance. Designed with a 208-230/115 voltage configuration, it is a suitable choice for multiple settings. The drip-proof enclosure guarantees protection in diverse environments.

• Capacitor Start and Run
• Reversible Counterclockwise Rotation
• Permanently Lubricated Bearings

Product Highlights

Ideal for both residential and commercial applications, the Century UV102 motor ensures durability and efficiency. Its rolled steel construction and double-sealed bearings extend its lifespan, making it a dependable component for various uses.

Product Information

Standard Information

• Brand: Century
• MPN: UV102
• Model: V102

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Horsepower: 2
• Power: 1.5 KW
• RPM: 1745
• Frame: Y145T
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 208-230/115
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: Rigid Base
• Amperage: 10.0-10.2/20.4
• Shaft Type: Keyed
• Shaft Extension: 2.31 inches
• Shaft Diameter: 0.875 inches
• Ambient Temperature: 40°C
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 4
• Service Factor: 1.15
• Start Method: Across The Line
• Frame Prefix: Y
• Frame Size: 145
• Frame Suffix: T
• Mounting Type: Rigid Base
