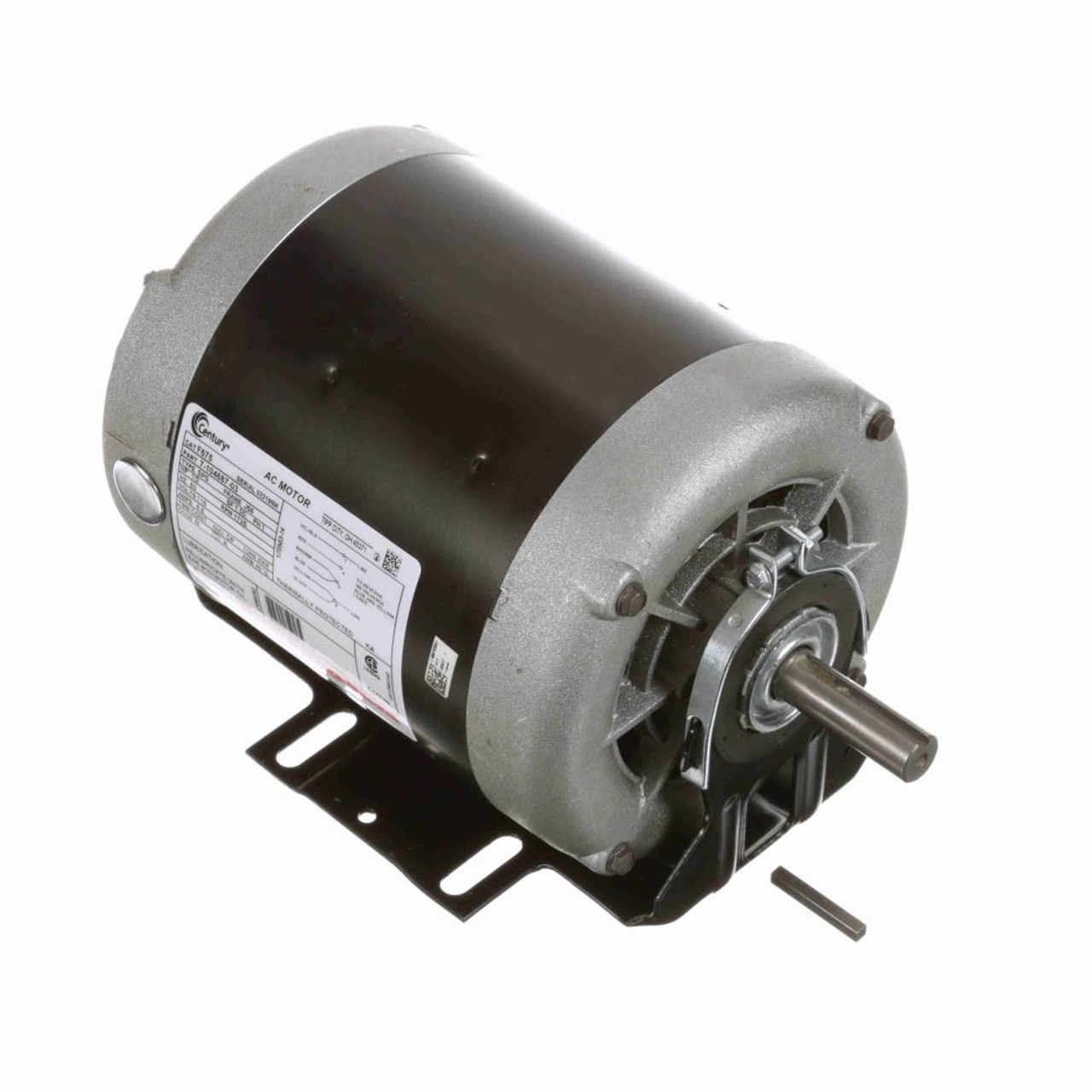

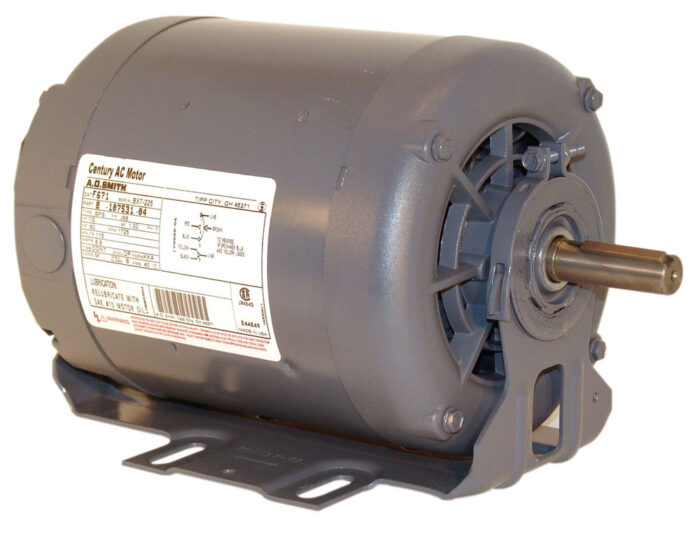

CENTURY MOTORS UF675 Fan and Blower Motor 1/2 HP

Product Description

The CENTURY MOTORS UF675 is a split-phase motor suitable for centrifugal pumps, blowers, and fans. This single-phase unit operates at one hundred fifteen volts and sixty hertz. It has an open drip-proof enclosure, a fifty-six frame, and sleeve bearings. The motor features reversible rotation and an automatic overload protector. It is designed for continuous duty with Class B insulation.

• Split-phase motor operates at 115V.
• Open drip-proof enclosure with sleeve bearings.
• Suitable for centrifugal pumps, blowers, and fans.

Product Highlights

This motor is ideal for various applications within HVAC and plumbing systems, ensuring reliability and efficiency.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UF675

Technical Specifications

• Horsepower: 1/2 HP
• RPM: 1725
• Number of Speeds: 1
• Input Voltage: 115 V
• Input Frequency: 60 Hz
• Full Load Amps: 6.8
• Service Factor: 1.00
• Frame Size: 56
• Enclosure: Open Drip Proof (ODP)
• Bearing Type: Sleeve
• Rotation: Reversible
• Overload Protector: Auto
• Phase: Single
• Shaft Dimensions: 5/8 inches x 1 7/8 inches
• Shaft Height: 3 1/2 inches
• Insulation Class: B
• Mounting Type: Resilient Base
