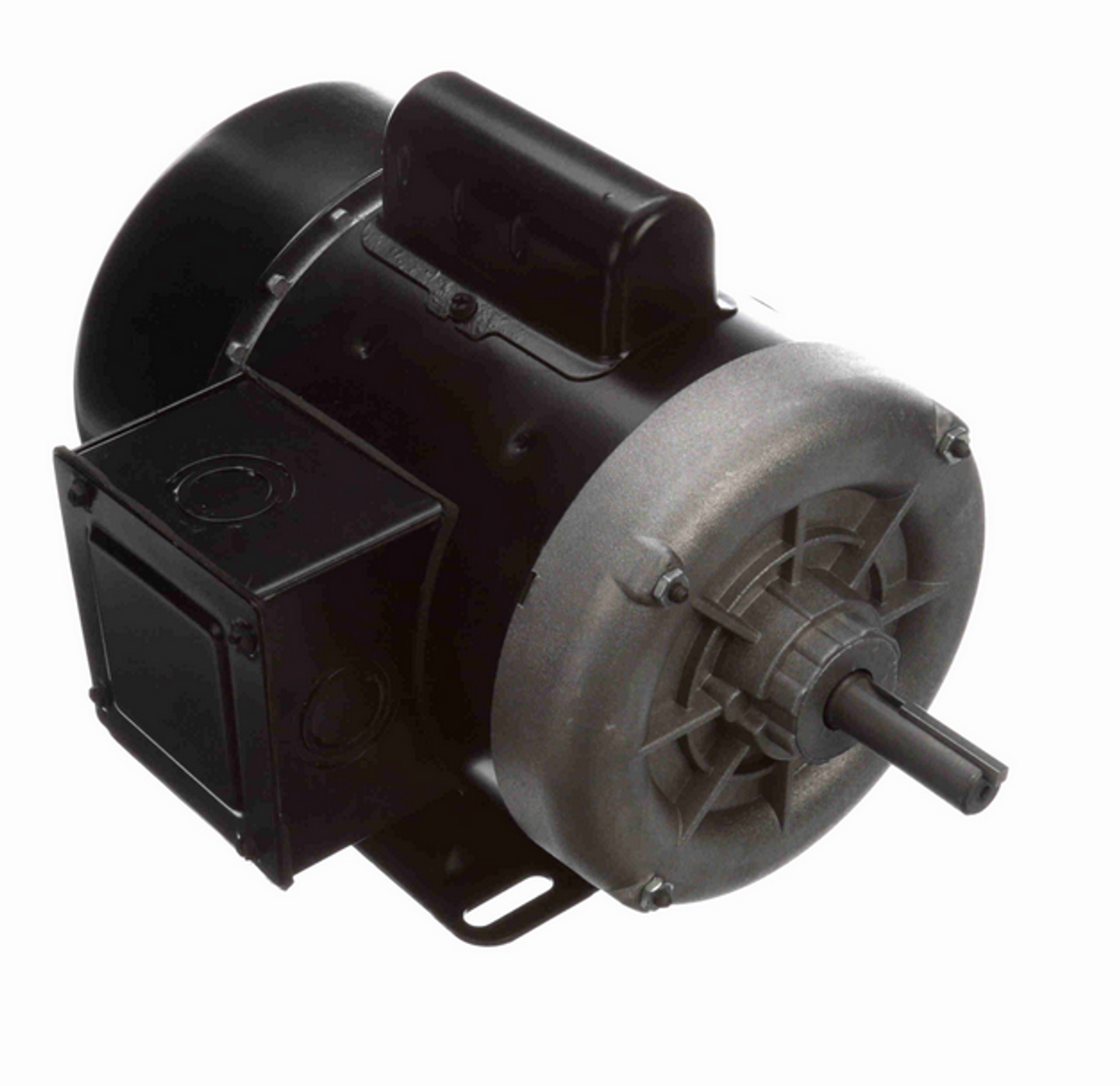

CENTURY MOTORS UC613V1 General Purpose Motor 1/2 hp

Product Description

The CENTURY MOTORS UC613V1 is a single-phase general purpose motor offering reliable performance. This motor operates at 115/208-230 volts and is designed for various applications. It features a NEMA 56 frame and a rigid base for sturdy installation. The motor is totally enclosed fan-cooled (TEFC), providing effective cooling and protection from dust and moisture.

• Single-phase motor tailored for general purpose use.
• TEFC enclosure ensures durability in tough environments.
• Reversible design with a keyed shaft for versatile applications.

Product Highlights

This motor is ideal for HVAC systems, pumps, and other applications requiring dependable operation.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UC613V1

Technical Specifications

• Horsepower: 1/2 hp
• Speed: 1800 rpm
• Amperage: 6.4/3.4 - 3.2 amps
• Voltage: 115/208-230 volts
• Frequency: 60 Hz
• Motor Type: Capacitor start / Induction run
• Frame: NEMA 56
• Shaft Diameter: 5/8 x 1 7/8 inches
• Service Factor: 1.15
• Overload Protection: Automatic
• Base: Rigid
• Rotation: Reversible
• Bearing Type: Ball bearings
• Insulation Class: B
• Enclosure: TEFC
