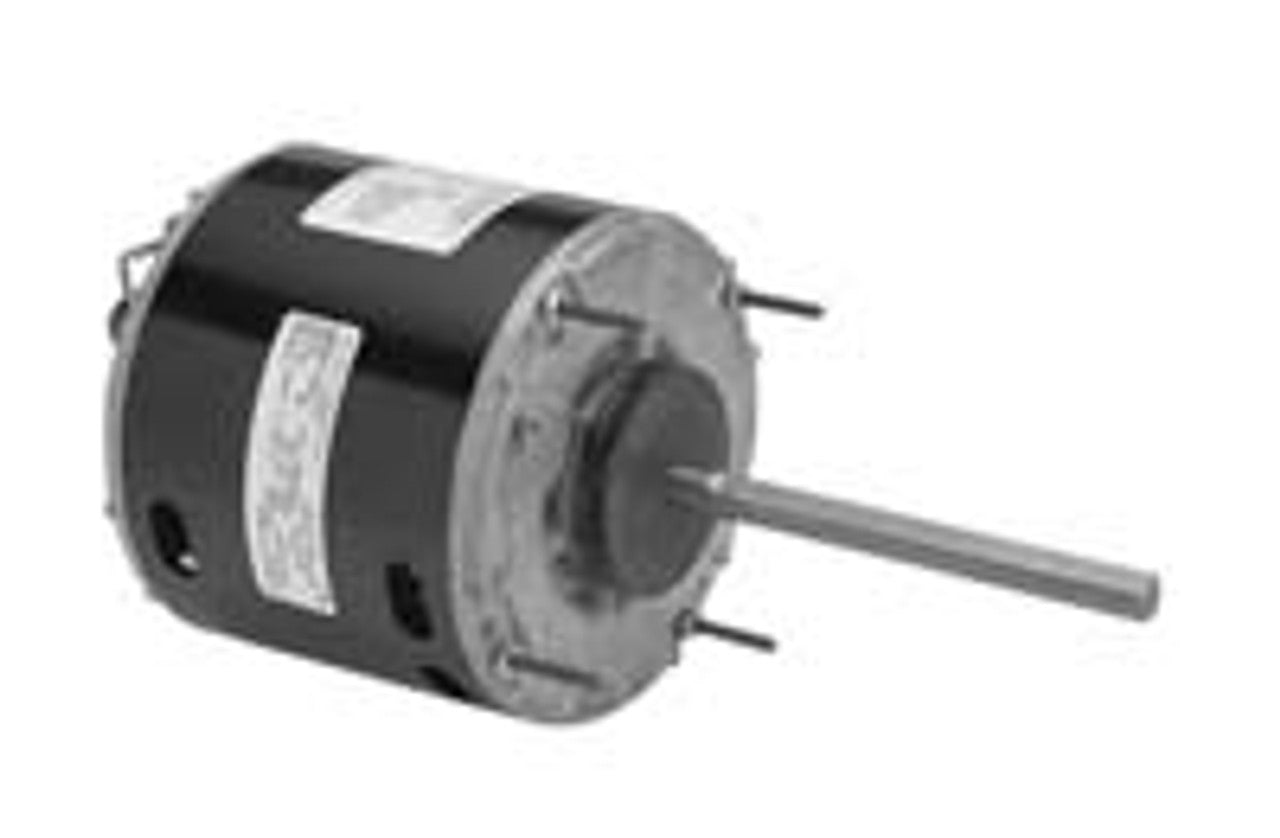

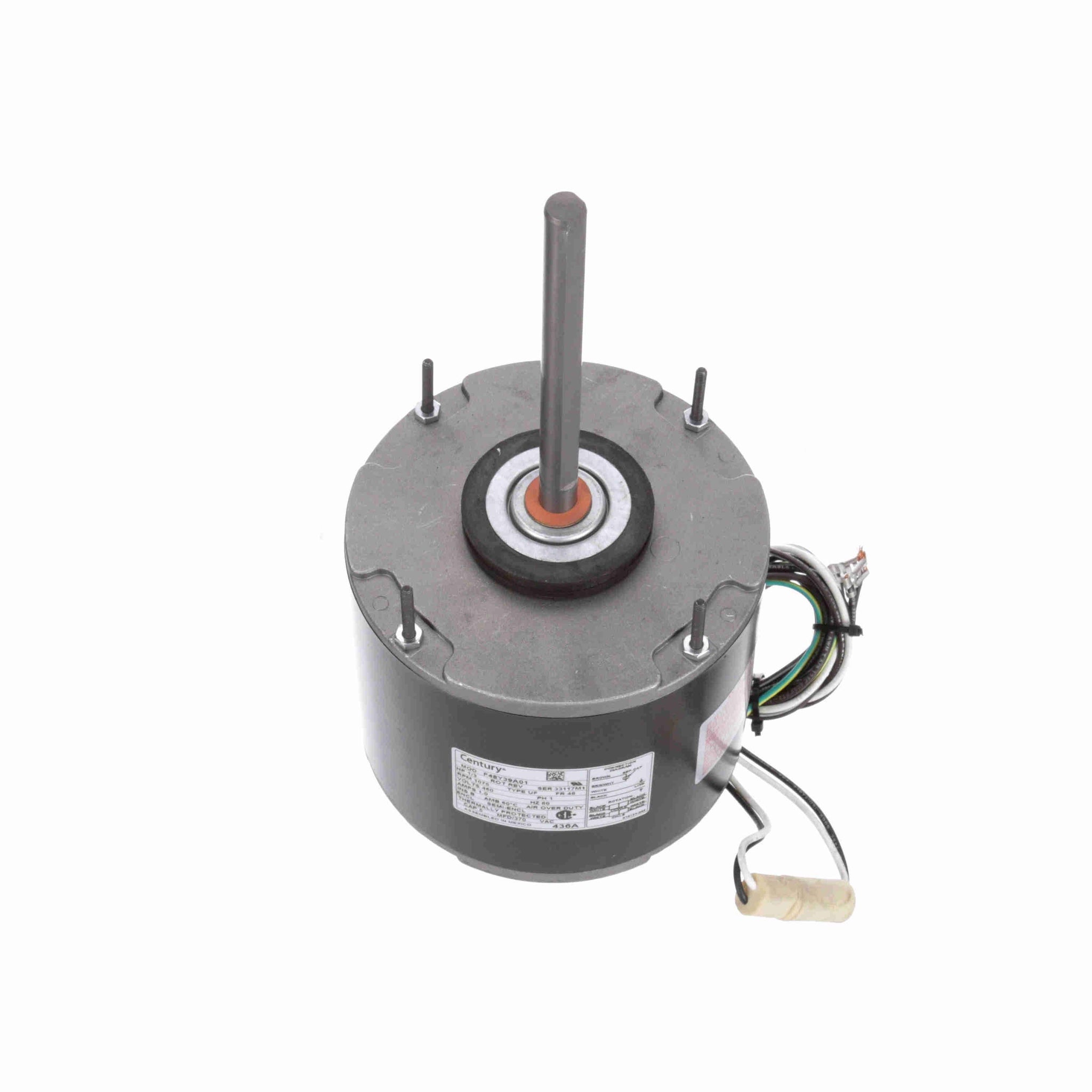

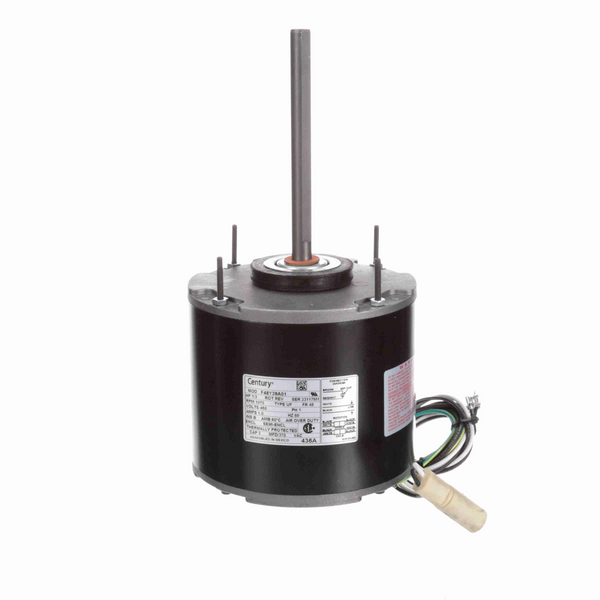

CENTURY MOTORS U436 Condenser Fan Motor 1/3 HP 460 Volts Replacement MPN

Product Description

The CENTURY MOTORS U436 is an open condenser fan motor designed for OEM replacement. This motor supports continuous duty applications and has a thermally protected design for reliability.

• 1/3 HP, 460 Volts, 1.0 Amps
• Single-phase and reversible motor with a speed of 1075 RPM
• Equipped with ball bearings and a 1/2 flatted shaft

Product Highlights

This motor is versatile for mounting in horizontal or vertical positions. Its construction includes a water slinger on the shaft to improve longevity.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: U436

Technical Specifications

• Horsepower: 1/3 HP
• Power Output: 0.25 kW
• Voltage: 460 V
• Current: 1.0 A
• Frequency: 60 Hz
• Speed: 1075 RPM
• Frame Size: 48
• Enclosure Type: Semi Enclosed
• Phase: Single
• Rotation: Reversible
• Duty: Air Over
• Shaft Diameter: 0.500 inches
• Shaft Type: Double Flat
• Mounting Type: Resilient Rings, Extended Studs
• Bearing Type: Ball
• Electrical Type: Permanent Split Capacitor
• Thermal Protection: Automatic
• Shaft Extension: 6.0 inches
• Overall Length: 11.68 inches
• Diameter: 5-5/8 inches
• Insulation Class: B
