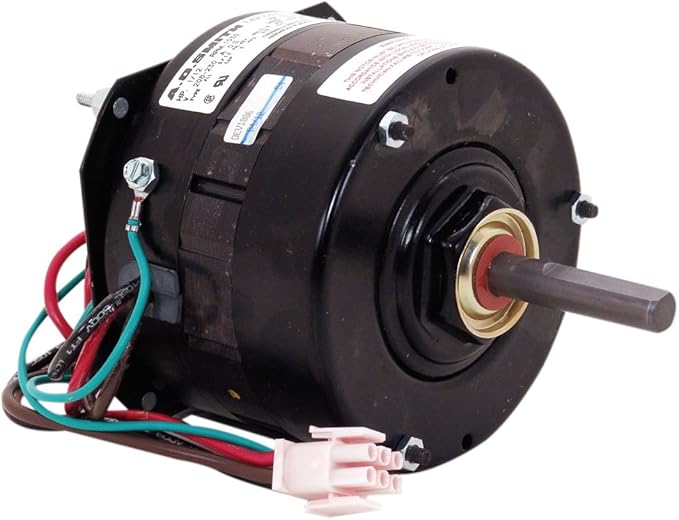

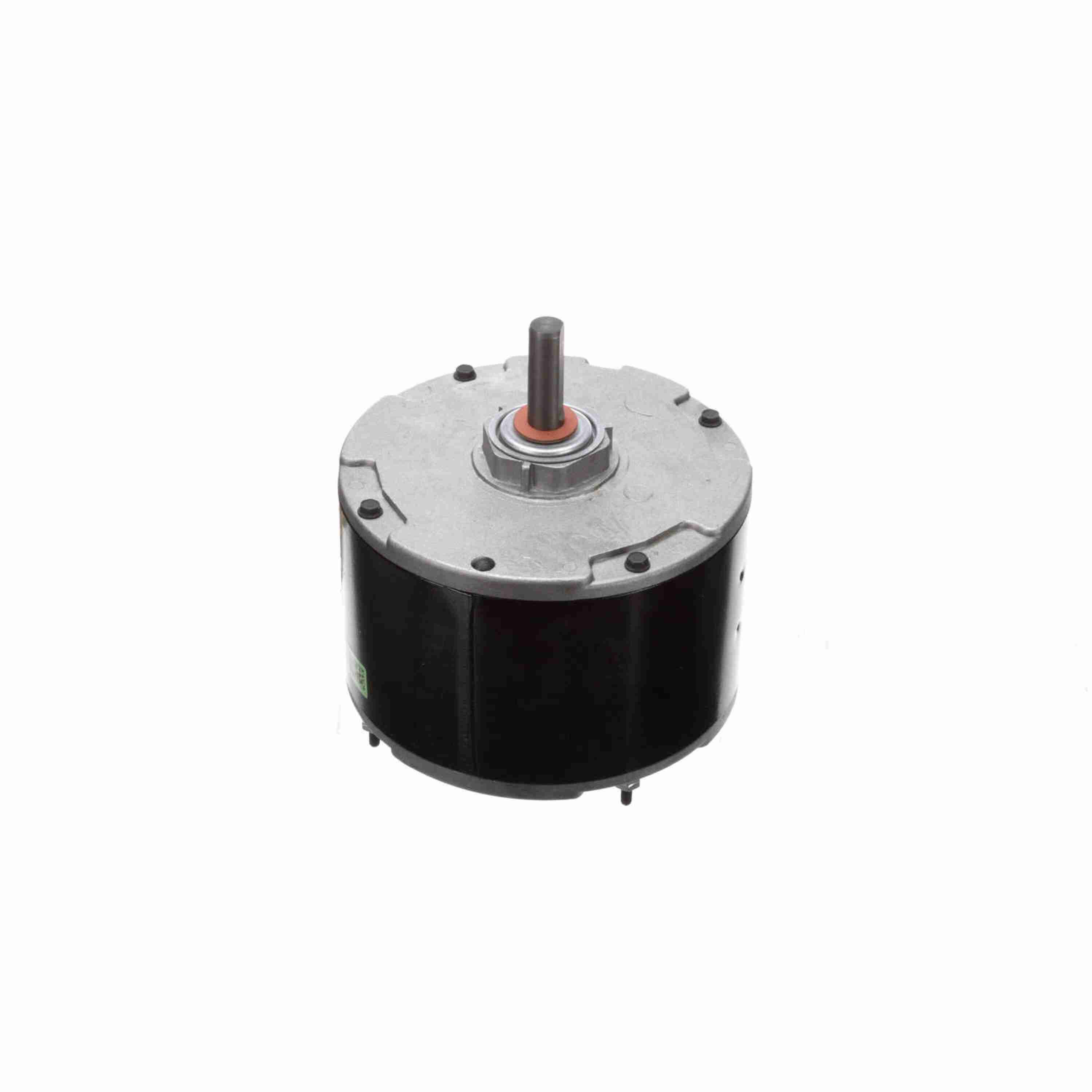

CENTURY MOTORS OEV1006A OEM Replacement Motor 1/12 HP 208-230 V

Product Description

The Century Motors OEV1006A is a 1/12 HP motor designed as a direct OEM replacement. It operates at 208-230V and runs at a speed of 1050 RPM. This single-phase motor features a totally enclosed air over (TEAO) design, class B insulation, and thermal protection for reliable operation.

• Direct OEM replacement motor.
• Ball bearings with extended studs for easy mounting.
• Thermally protected with class B insulation.

Product Highlights

This motor is suitable for applications requiring an efficient and durable motor. It's a common choice for HVAC and refrigeration systems.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: OEV1006A

Technical Specifications

• Phase: 1
• Output HP: 1/12 HP
• Voltage: 208-230 V
• Speed: 1050 RPM
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Yes
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 0.65 A
• Duty: Air Over
• Insulation Class: B
• UL Recognized: Yes
• CSA Certified: Yes
• CE Certified: No
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Lead End
• Mounting: Extended Studs
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 3.49 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 2.79 inches
• Material: Copper
• Item Weight: 3.5 Kilograms
• Horsepower: 0.11 HP
