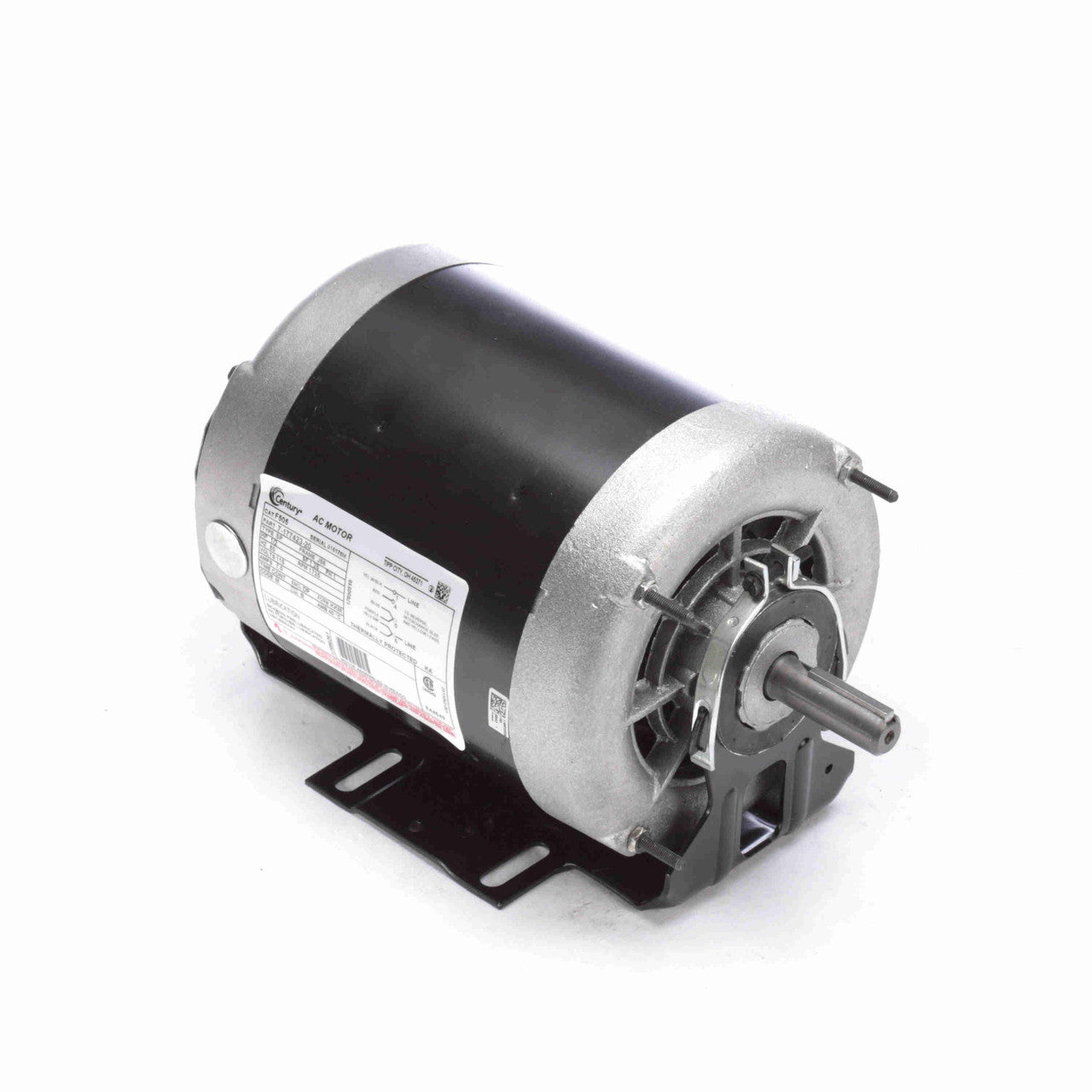

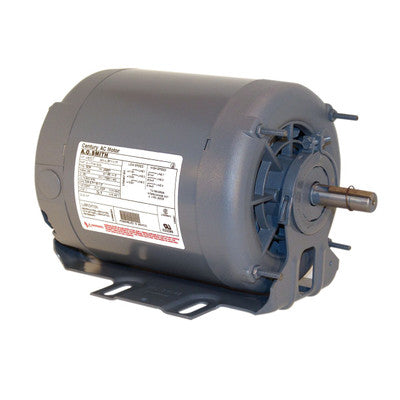

Century Motors F505 Fan and Blower Motor 1/2 HP replacement mpn

Product Description

The CENTURY MOTORS F505 is a fan and blower motor operating at 115V. This 1/2 HP motor is designed for continuous duty and features a reversible counterclockwise rotation. It is thermally protected and has permanently lubricated, double-sealed ball bearings for extended life. Suitable for HVAC and industrial systems.

• Automatic reset thermal protector prevents overheating
• Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor

Product Highlights

Reliable and efficient, the Century Motors F505 ensures consistent operation in various environments with its robust design and thermal protection.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: F505
• Country of Origin: Mexico

Technical Specifications

• MPN: F505
• Brand: CENTURY MOTORS
• Phase: 1
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Voltage: 115 V
• Speed: 1725 rpm
• Service Factor: 1.25
• Frame: J56
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 7.0 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Split Phase, Induction Run, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible Counterclockwise
• Mounting: Cushion Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 11.07 in
• Frame Length: 5.13 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.94 in
• Base: Resilient Cradle Base
• Shaft: 5/8" x 1 7/8"
• Shaft Height: 3 1/2"
• Overload Protection: Automatic Overload Protection
• Terminals: Quick Connect Terminals
• Insulation: Class B Insulation
• RPM (Number of Poles): 4 (1201 RPM to 1800 RPM)
• RPM (Nameplate): 1725
• Speeds: 1
• Frame Type: 56
• C-Dimemsion: 11.07 (in.)
• Motor Orientation: -
• Type of Overload Protector: Thermally Protected
• Max Ambient: 40°C
• IP Code: -
• KVA Code: -
• Product Type: Split Phase
• Enclosure Type: ODP (Open Dripproof)
• Mounting Type: Cushion Base
• Motor Diameter: 6-1/2"
• Shaft Length: 1-7/8"
• Service Factor (SF): 1.25
• Bearings: Ball
• Maximum Ambient Temperature: 40° C
• Duty Cycle: Continuous
