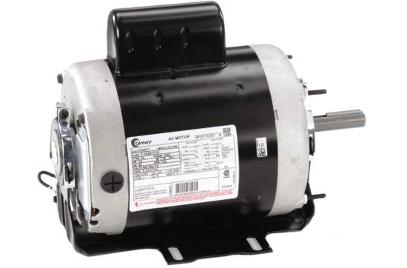

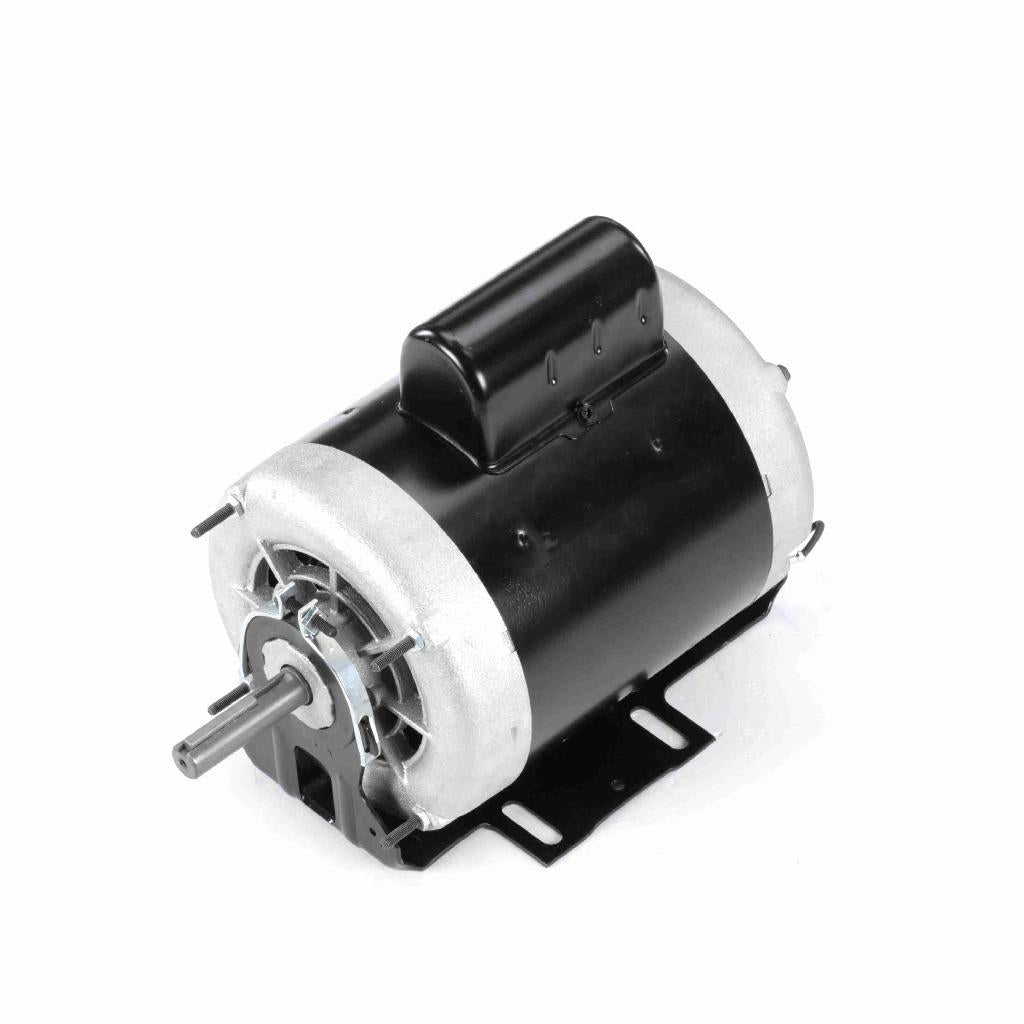

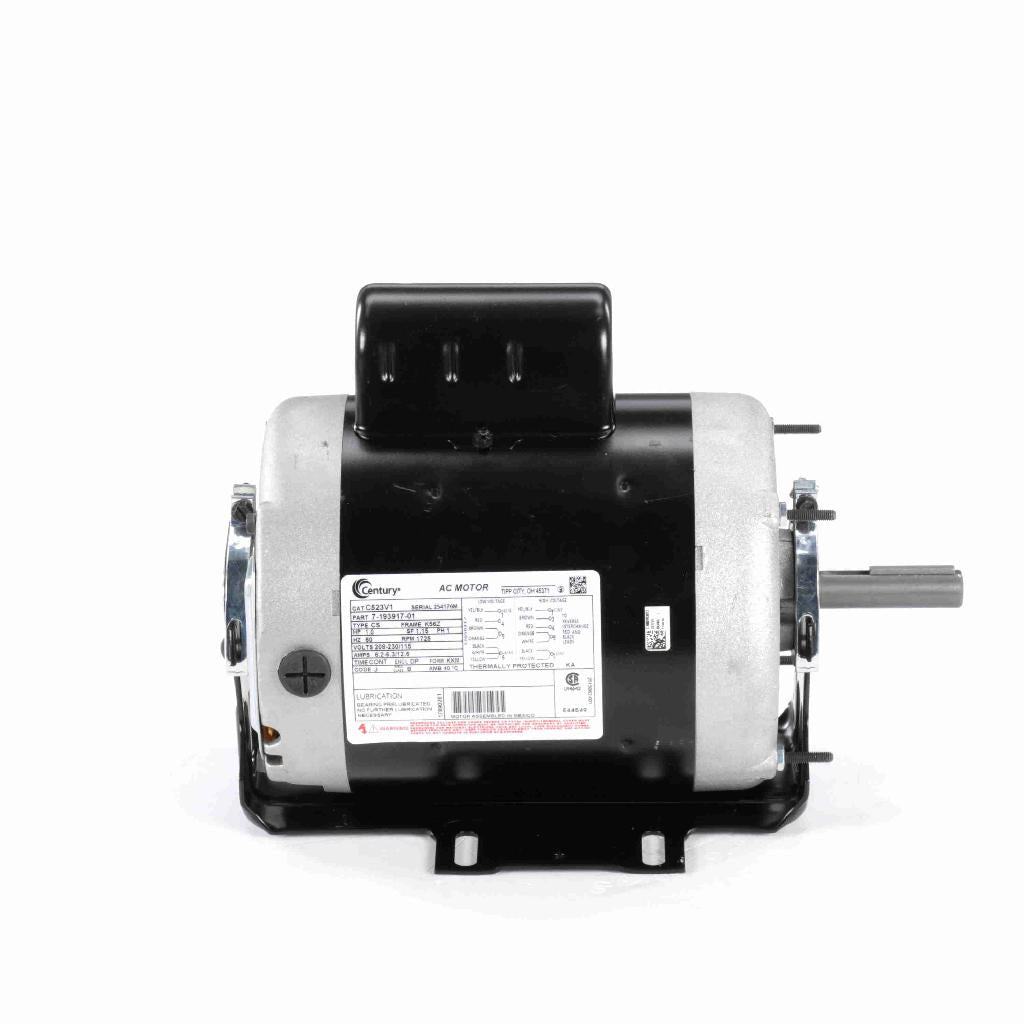

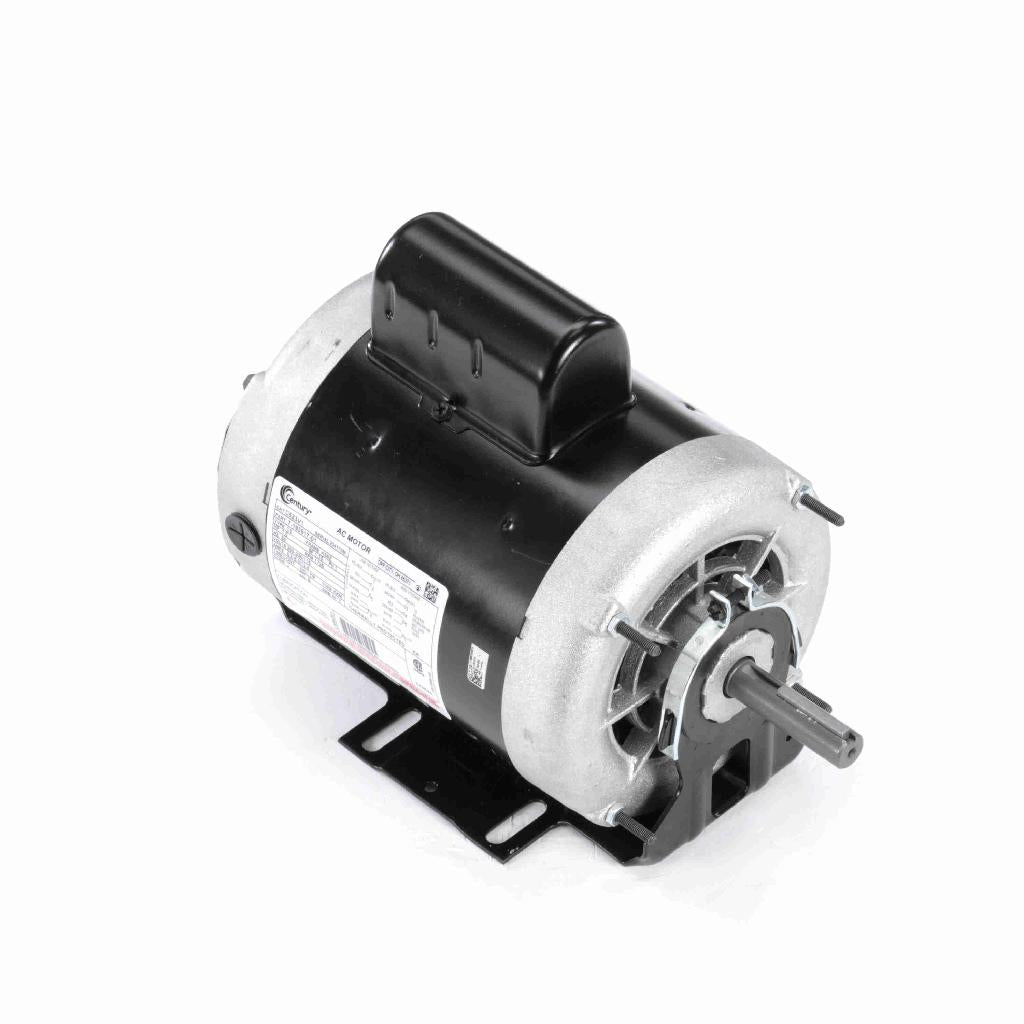

Century Motors C523V1 Fan and Blower Motor 1.0 HP

Product Description

The Century Motors C523V1 is a fan and blower motor with a power rating of 1.0 HP. It operates on single-phase power at sixty hertz and supports voltage options of two hundred eight to two hundred thirty volts or one hundred fifteen volts. This motor runs at a speed of one thousand eight hundred RPM and features a K56Z frame with a drip-proof enclosure. It comes with thermal protection making it suitable for continuous duty applications.

• Automatic reset thermal protector helps prevent overheating.
• MAXGuard insulation system protects against electrical stress.
• Permanently lubricated, double-sealed bearings enhance motor lifespan.

Product Highlights

This motor is perfect for a variety of applications including compressors, pumps, conveyors, milking machines, blowers, and rooftop setups.

Product Information

Standard Information

• Voltage: 208-230/115 V
• Frame: K56Z

Technical Specifications

• Phase: 1
• Output HP: 1.0 HP
• Output KW: 0.75 kW
• Speed: 1725 RPM
• Service Factor: 1.15
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Frequency: 60 Hz
• Current: 6.2-6.3/12.6 A
• Duty: Continuous
• Insulation Class: B
• NEMA Frame: 56Z
• Mounting: Cushion Base
• Efficiency: 67%
