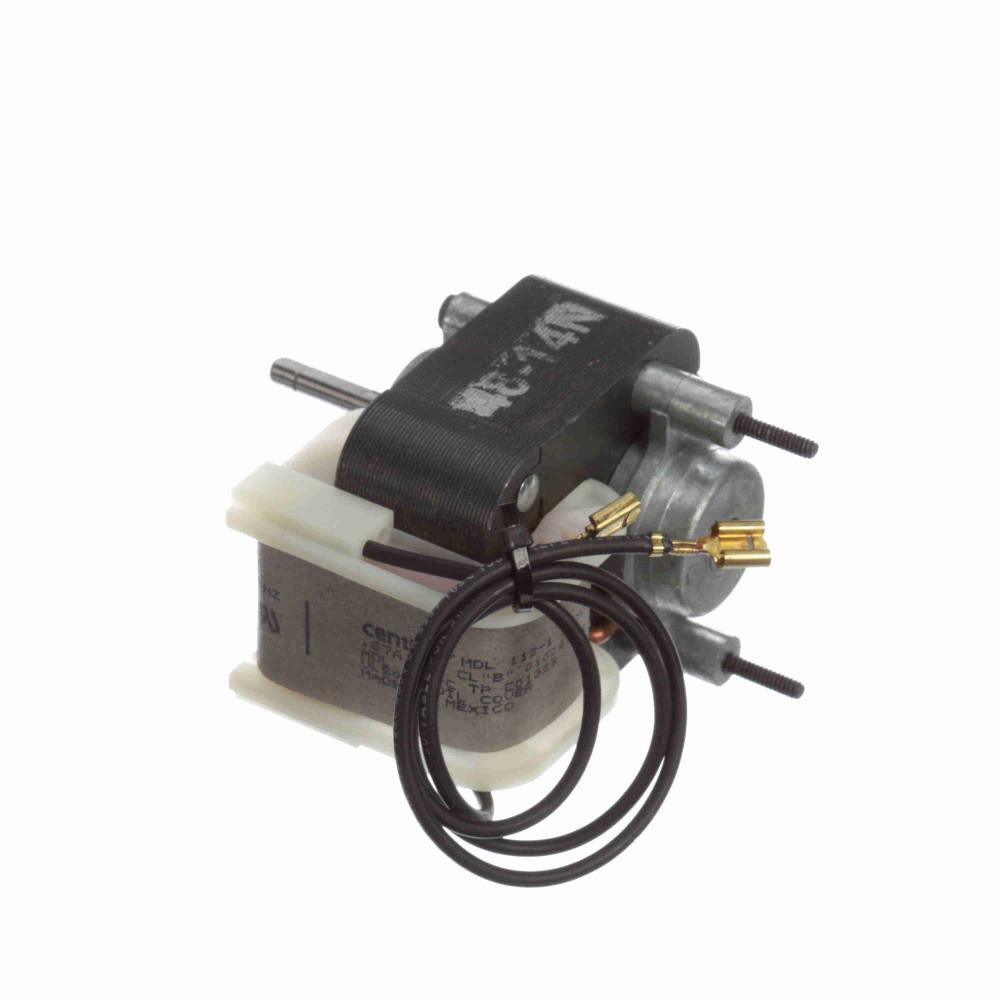

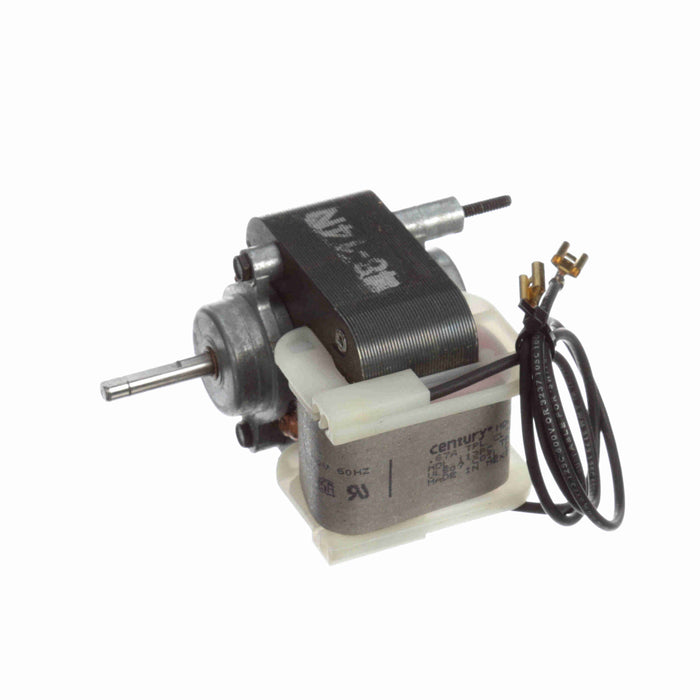

CENTURY MOTORS C01329 C-Frame / Skeleton Motor

Product Description

The CENTURY MOTORS C01329 is a C-Frame motor ideal for various applications such as refrigeration, exhaust fans, range hoods, heaters, ventilators, and evaporators. This motor operates as a shaded pole motor with a single speed and features mechanical reversibility for flexible installation. It is designed for easy mounting with included hardware.

• Shaded Pole Motor
• Reversible Rotation
• Open Air Over Enclosure

Product Highlights

This motor is suitable for continuous operation and can handle a maximum ambient temperature of forty degrees Celsius.

Product Information

Standard Information

• Manufacturer: CENTURY MOTORS
• MPN: C01329

Technical Specifications

• Motor Type: Shaded Pole
• Frame: C-Frame
• RPM: 3000
• Input Voltage: 240 Volts
• Input Current: 0.6 Amps
• Phase: 1
• Enclosure Type: OAO (Open Air Over)
• Shaft Diameter: 0.217 inches
• Shaft Length: 1 inch
• Rotation: CCW Shaft End (Reversible)
• Mounting Type: Stud
• Service Factor (SF): 1.00
• Bearings: Sleeve
• Maximum Ambient Temperature: 40°C
• Insulation Class: B
• Duty Cycle: Continuous
• Stack Size: 1 1/8 inches
• Certifications: CSA Certified, UL Recognized
