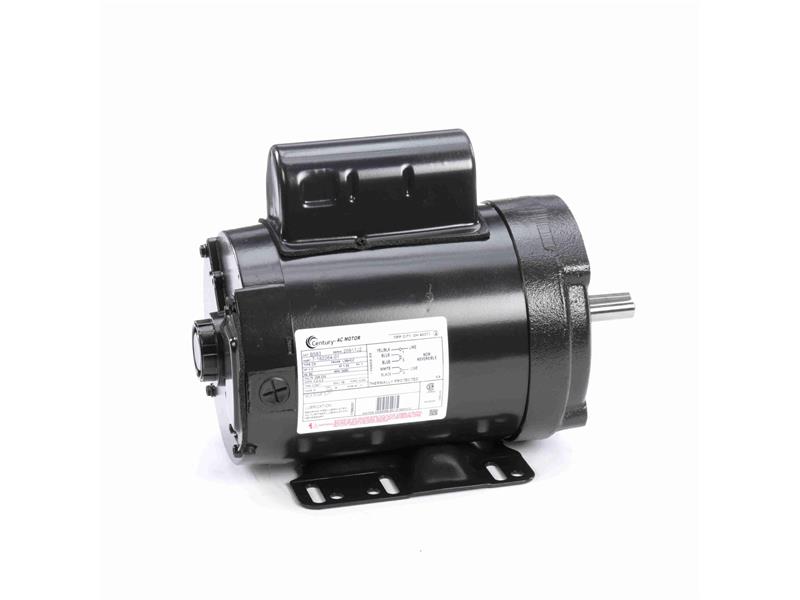

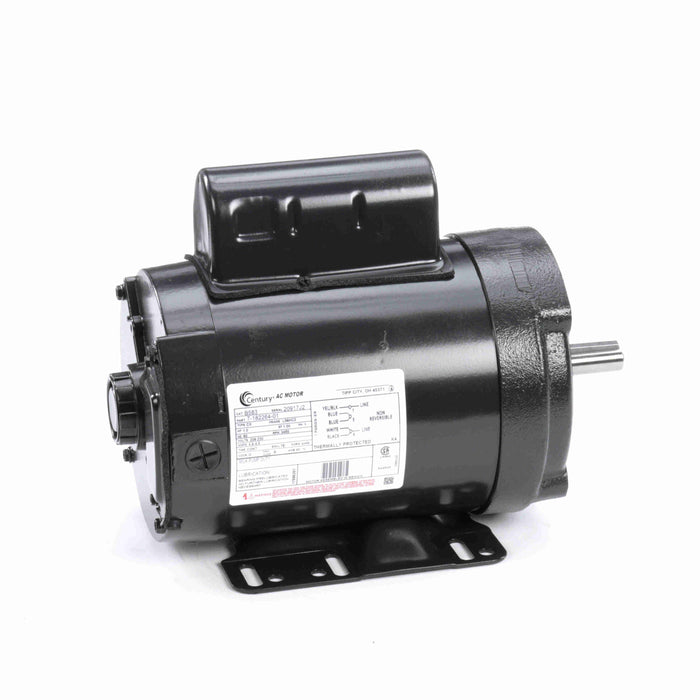

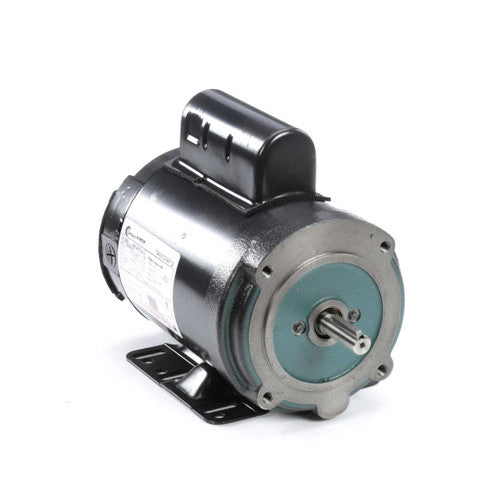

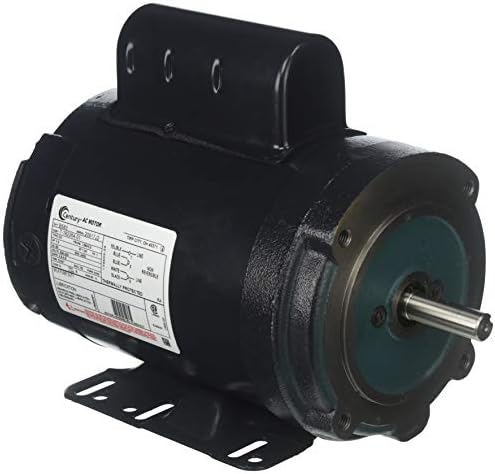

Century Motors B583 General Purpose Farm Duty Motor 1.0 HP L56HCZ Frame

Product Description

The Century Motors B583 is a general purpose farm duty motor. This 1.0 HP motor operates at 208-230V and 60 Hz, with a speed of 3450 RPM. It features a L56HCZ frame and a totally enclosed non-ventilated (TENV) enclosure. Designed for continuous duty, it includes thermal overload protection and is suitable for various farm applications.

• Epoxy painted and stainless ratings available for corrosion protection.
• Washguard duty ensures motor is fit for high-pressure washdown applications.
• Sealed bearings shut out contaminants that lead to bearing failure.

Product Highlights

This Century Motors farm duty motor is ideal for applications requiring a robust and reliable motor. It features a TENV enclosure and is thermally protected.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: B583
• Country of Origin: Mexico

Technical Specifications

• MPN: B583
• Brand: CENTURY MOTORS
• Phase: 1
• Output HP: 1.0 Hp
• Output KW: 0.75 kW
• Voltage: 208-230 V
• Speed: 3450 rpm
• Service Factor: 1.00
• Frame: L56HCZ
• Enclosure: Totally Enclosed Non Ventilated
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 4.8-4.5 A
• Duty Cycle: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 2
• Rotation: CCW Shaft End
• Mounting: Rigid Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 11.97 in
• Frame Length: 6.25 in
• Shaft Diameter: 5/8"
• Shaft Extension: 1.94 in
• UPC: 786674012517
• Packaged Length: 16.00 IN
• Packaged Width: 8.00 IN
• Packaged Height: 10.00 IN
• Horsepower: 1 hp
• Amps: 4.8-4.5 amps
• Capacitor Type: Permanent Split Capacitor
• Overload Protection: Automatic Overload Protection
• Warranty: 1 Year Manufacture Warranty
• Product Type: PSC (Permanent Split Capacitor)
• RPM: 3450
• Hz: 60
• Motor Diameter: 6-1/2"
• Maximum Ambient Temperature: 40° C
• Bearings: Ball
